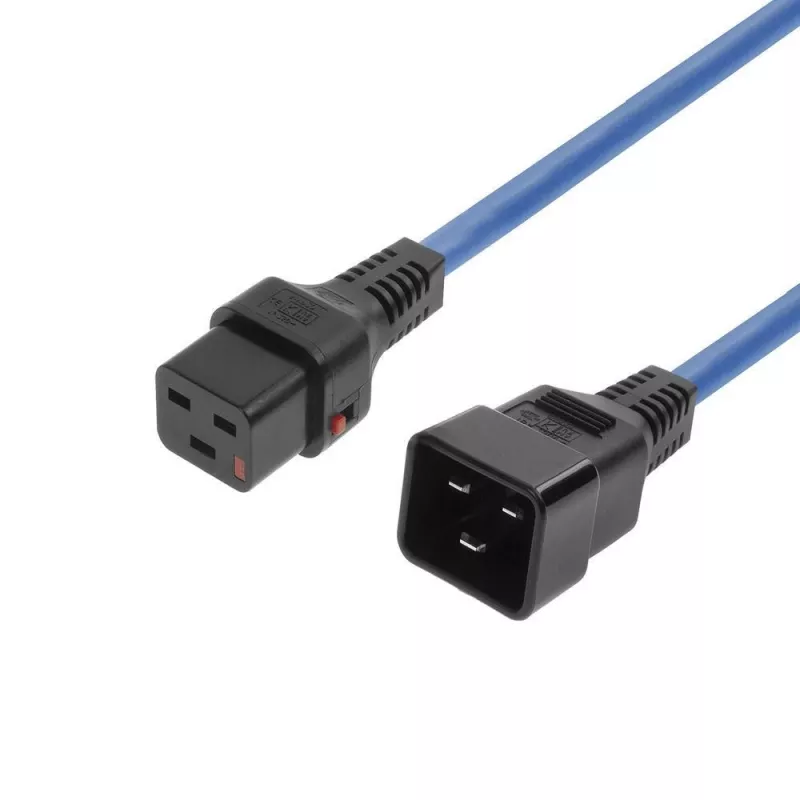

MICROCONNECT virtakaapeli C19 IEC Lock - C20, 2m, 16A, lukittuva C19 - C20, musta

Where standard data-center power cords rely on friction alone, the MICROCONNECT Powercord C19 IEC Lock - C20 brings a positive locking mechanism to the C19 connector, preventing accidental disconnects in high-vibration or densely cabled racks. This 2-meter cable is built for servers, UPS units, and PDUs that demand a secure, uninterrupted power path.

Highlights

• Locking C19 female connector grips the mating C20 inlet, resisting pull-out and reducing downtime risk.
• Heavy-duty 3 x 1.5 mm² copper conductors (H05VV-F) support up to 16 A at 250 V AC, suitable for high-power equipment.
• Flexible black PVC jacket with an outer diameter of approximately 8.5 mm for easy routing in tight spaces.
• CE and RoHS certified, with an operating temperature range of -10°C to 70°C for demanding environments.

In daily use

Connect the C20 male end to a PDU or UPS outlet, then plug the locking C19 female end into your server or network switch. The locking tab snaps into place, giving you a tactile confirmation that the connection is secure. Even if the rack is bumped or cables are pulled during maintenance, the power cord stays firmly attached, preventing unexpected shutdowns and data loss.

Full specifications

• Connector 1: IEC 60320 C20 male
• Connector 2: IEC 60320 C19 female (locking)
• Cable length: 2 m
• Cable type: H05VV-F
• Conductor cross-section: 3 x 1.5 mm²
• Rated current: 16 A
• Rated voltage: 250 V AC
• Jacket material: PVC
• Conductor material: Copper
• Colour: Black
• Certifications: CE, RoHS
• Operating temperature: -10°C to 70°C
• Cable outer diameter: approx. 8.5 mm
• Insulation resistance: > 20 MΩ
• Dielectric strength: 2000 V AC / 1 min

Final note

For mission-critical infrastructure where every connection counts, the MICROCONNECT locking power cord delivers the reliability and safety your equipment deserves.
