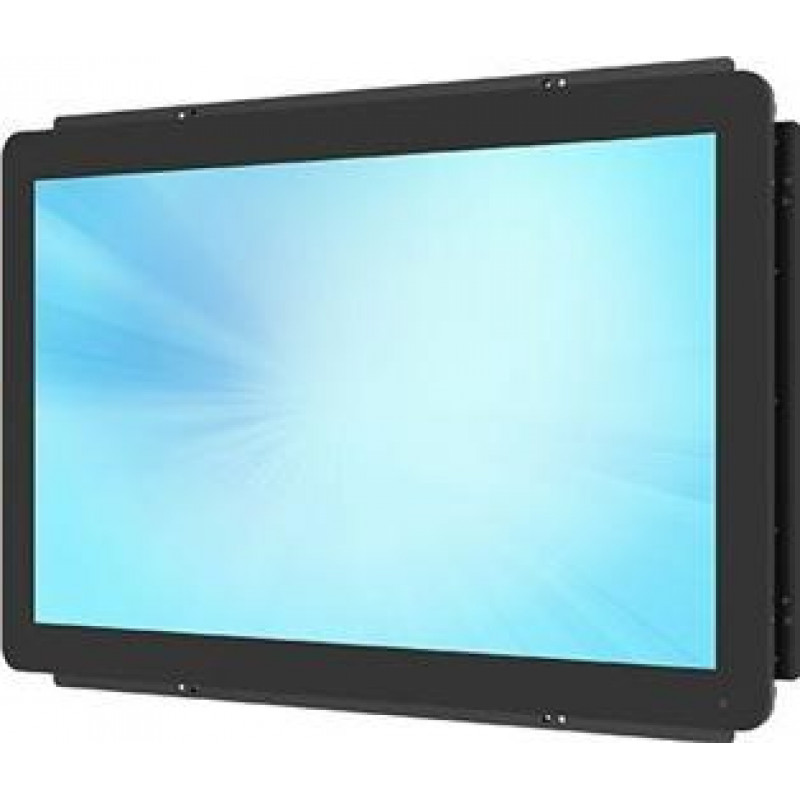

MicroTouch 21,5 tuuman ulkokosketusnäyttö M1-215OD-A1 - 10 pisteen PCAP, 1500 nits, USB-C/HDMI, IP65

With an ultra-bright 1500-nit display and rugged IP65 front panel, the MicroTouch M1-215OD-A1 delivers flawless touch performance even in direct sunlight. This 21.5-inch outdoor monitor is engineered for kiosks, digital signage, and industrial control where reliability and visibility are critical.

Overview

The M1-215OD-A1 combines a Full HD 1920x1080 resolution with projected capacitive 10-point multi-touch technology, ensuring precise and responsive interaction. Its etched anti-glare surface reduces reflections, while the wide 178° viewing angles maintain image clarity from any position. Connectivity is simplified through HDMI and USB-C (DisplayPort Alt Mode), with touch data transmitted via USB.

What stands out

• 1500 cd/m² brightness for sunlight-readable performance
• IP65-rated front panel withstands dust and water jets
• 10-point PCAP touch with etched anti-glare glass
• Flexible connectivity: HDMI and USB-C with DP Alt Mode
• Wide operating temperature range: -20°C to 60°C
• VESA 100x100mm mount for easy installation

Technical details

• Display: 21.5" TFT LCD with LED backlight
• Resolution: 1920 x 1080 (Full HD), 16:9 aspect ratio
• Touch: Projected capacitive, 10-point multi-touch
• Brightness: 1500 cd/m² (typical)
• Contrast ratio: 1000:1 (typical)
• Response time: 25 ms (typical)
• Viewing angles: 178° horizontal / 178° vertical
• Inputs: 1x HDMI, 1x USB-C (DisplayPort Alternate Mode)
• Touch interface: USB (via USB-C or separate USB-B)
• Surface: Etched anti-glare
• Operating temperature: -20°C to 60°C
• Storage temperature: -30°C to 70°C
• Ingress protection: IP65 (front panel)
• Power: External DC adapter (12V)
• Mounting: VESA 100x100mm

Our verdict

The MicroTouch M1-215OD-A1 is a top-tier outdoor touch display that combines extreme brightness, ruggedness, and versatile connectivity. It is an excellent choice for demanding public-facing applications where durability and readability are paramount.
