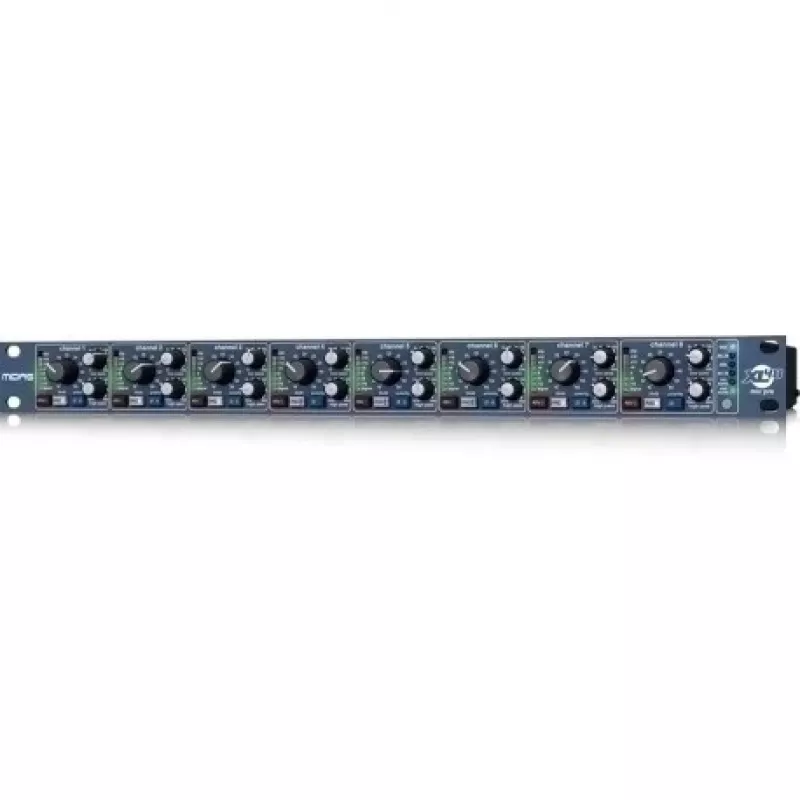

Midas XL48 8-kanavainen mikrofoniesivahvistin

The Midas XL48 is a professional 8-channel microphone preamplifier designed for studio and live sound applications. Featuring the legendary Midas XL4 transformerless preamp design, it delivers pristine audio quality with exceptional dynamic range and low noise. The unit provides 8 balanced XLR inputs and outputs, plus digital outputs via AES3 and ADAT, making it a versatile front-end for any recording or sound reinforcement system.

Advantages

With over 110 dB dynamic range and THD+N below 0.005%, the XL48 ensures transparent signal amplification. The switchable +48V phantom power, 80 Hz high-pass filter, and phase invert per channel offer flexible control. Its 1U rack-mountable form factor saves space, and the universal power supply works worldwide.

Suitable for

• Studio recording
• Live sound reinforcement
• Broadcast and post-production
• Installed sound systems

Key specifications

• 8 channels of Midas XL4 transformerless preamps
• 24-bit A/D conversion up to 192 kHz
• 8 x XLR balanced inputs and outputs
• Digital outputs: 2 x AES3 (D-sub), 2 x ADAT optical
• Gain range: +10 dB to +60 dB
• Frequency response: 20 Hz - 20 kHz (+0/-1 dB)
• Dynamic range: >110 dB (A-weighted)
• THD+N: <0.005%
• Switchable high-pass filter (80 Hz, 12 dB/octave) per channel
• Phase invert per channel
• 8-segment LED metering per channel
• Word clock BNC in/out
• 1U rack-mountable

Recommendations

For optimal performance, use high-quality XLR cables and ensure proper grounding. The XL48 pairs excellently with Midas consoles and digital recorders.
