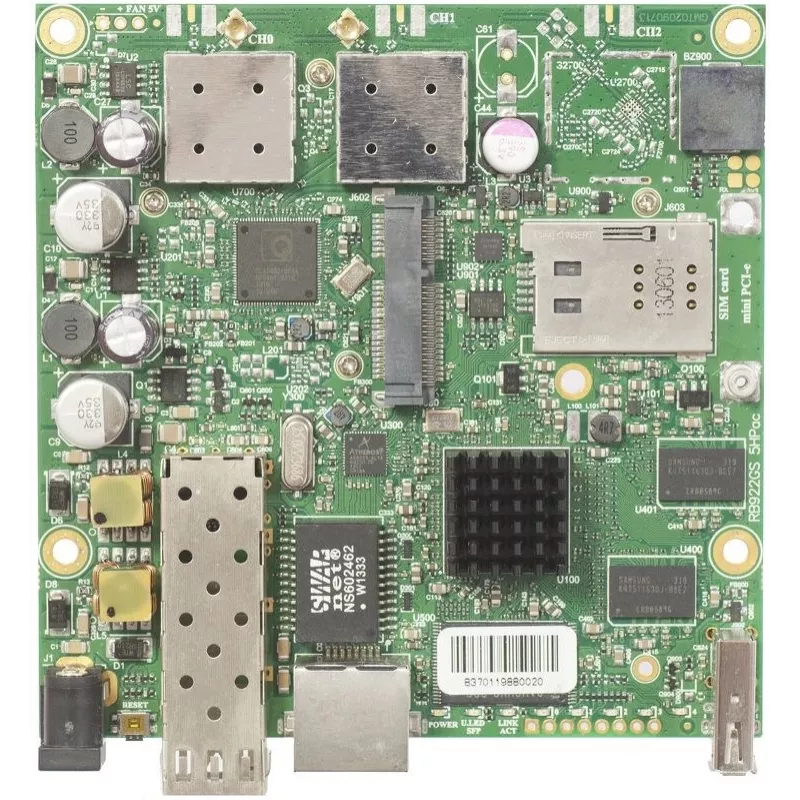

MikroTik reititin RB922UAGS-5HPacD

RouterBOARD RB922UAGS-5HPacD is a versatile Wi‑Fi 5 (802.11ac) wireless router designed for building custom high‑speed wireless solutions. It provides a maximum WLAN data rate up to 866 Mbit/s and includes a range of expansion and connectivity options — SFP cage, miniPCIe slot with SIM support for 3G/4G modems or an additional wireless card, USB port, Gigabit Ethernet port, and two MMCX connectors for the integrated 2x2 802.11ac radio. The device ships with RouterOS L4 (AP) license. Specific frequency availability depends on the model and local regulations: the US model is factory‑locked to 5170–5250 MHz and 5725–5835 MHz, while the International model supports 5150–5875 MHz (subject to country limits).

Advantages

The MikroTik RB922UAGS-5HPacD combines 802.11ac performance with flexible hardware expandability, offering both high WLAN throughput (up to 866 Mbit/s) and multiple connectivity options including SFP, miniPCIe (with SIM), USB and Gigabit Ethernet. Its integrated 2x2 radio with MMCX antenna connectors and PoE support (8–30 V) make it suitable for a wide range of indoor and outdoor deployments where modularity and reliability are required. RouterOS L4 provides access point functionality out of the box.

Suitable for

• Building custom point-to-point or point-to-multipoint wireless links
• High‑speed access points in small to medium networks
• Deployments requiring cellular backup via 3G/4G miniPCIe modem
• Installations needing SFP fiber uplink

Key specifications

• Wireless standard: 802.11ac (Wi‑Fi 5), up to 866 Mbit/s
• CPU: QCA9557, 720 MHz
• Ports: 1× Gigabit Ethernet, 1× SFP cage, 1× USB, MMCX antenna connectors (2)
• Expansion: miniPCIe slot with SIM for 3G/4G modem or additional wireless card
• Power: PoE support 8–30 V
• License: RouterOS L4 (AP)
• Model frequency notes: US model locked to 5170–5250 MHz and 5725–5835 MHz; International model supports 5150–5875 MHz
• Manufacturer codes: MPN 10144, EAN 5712505979518

How to use

Mount the RB922UAGS-5HPacD according to the installation environment and connect power via a PoE injector or a compatible power source within 8–30 V. Attach antennas to the MMCX connectors if required, or install an SFP module for fiber uplink. For cellular backup or extended wireless options, insert a compatible 3G/4G miniPCIe modem with SIM into the miniPCIe slot. Connect a management PC to the Gigabit Ethernet port or configure the device remotely via RouterOS. Adjust wireless channel and country settings in RouterOS to comply with local regulations and the model’s frequency limits.

Recommendations

Verify local regulatory restrictions before deploying the device, particularly frequency ranges. Use weatherproof enclosures and appropriate mounting hardware for outdoor installations, and choose antennas matched to the required coverage. Keep RouterOS updated and secure administrative access with strong credentials.
