MikroTik SXTsq Lite5 valkoinen PoE-tuki

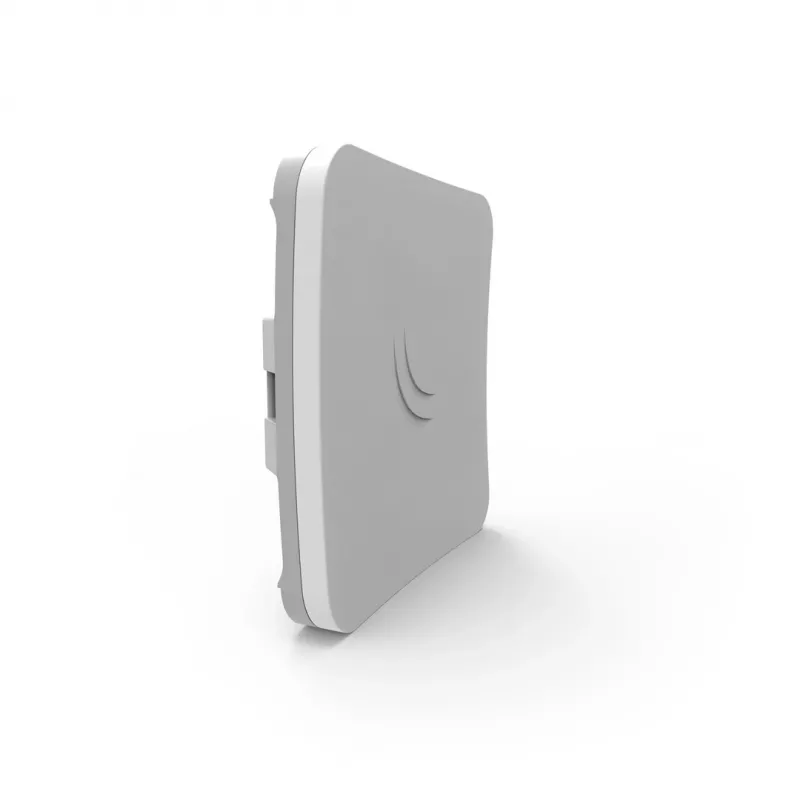

The MikroTik SXTsq Lite5 is a compact, high-performance outdoor CPE (Customer Premises Equipment) designed for 5 GHz wireless networks. With an integrated 16 dBi directional antenna and passive PoE support, it delivers reliable connectivity for long-range links. Powered by a QCA9533 CPU and RouterOS Level 3, this device is ideal for ISPs, WISPs, and enterprise deployments requiring a cost-effective, weather-resistant solution.

Advantages

Integrated 16 dBi directional antenna ensures strong signal focus and extended range. Passive PoE support (10-30 V DC) simplifies installation by powering the device over the Ethernet cable. The outdoor UV-stabilized plastic enclosure withstands harsh environments, operating from -40°C to +70°C. RouterOS provides advanced routing, firewall, and management features, while the compact form factor allows flexible mounting.

Suitable for

• Point-to-point and point-to-multipoint wireless links
• Last-mile internet access for residential and business customers
• Backhaul connections in WISP networks
• Surveillance and IoT backhaul

Key specifications

• Wireless standard: 802.11a/n
• Frequency band: 5 GHz
• Antenna gain: 16 dBi
• CPU: QCA9533, 650 MHz single-core
• RAM: 64 MB
• Storage: 16 MB Flash
• Ethernet: 1x 10/100 Mbps with Passive PoE input
• Max power consumption: 5 W
• Operating system: RouterOS Level 3
• Operating temperature: -40°C to +70°C

Recommendations

For optimal performance, pair the SXTsq Lite5 with a MikroTik PoE injector or a compatible switch. Use the included mounting kit for secure outdoor installation. Ensure clear line-of-sight for maximum range.
