Mini DisplayPort - DisplayPort -kaapeli DeLOCK 83985 0,5 m valkoinen

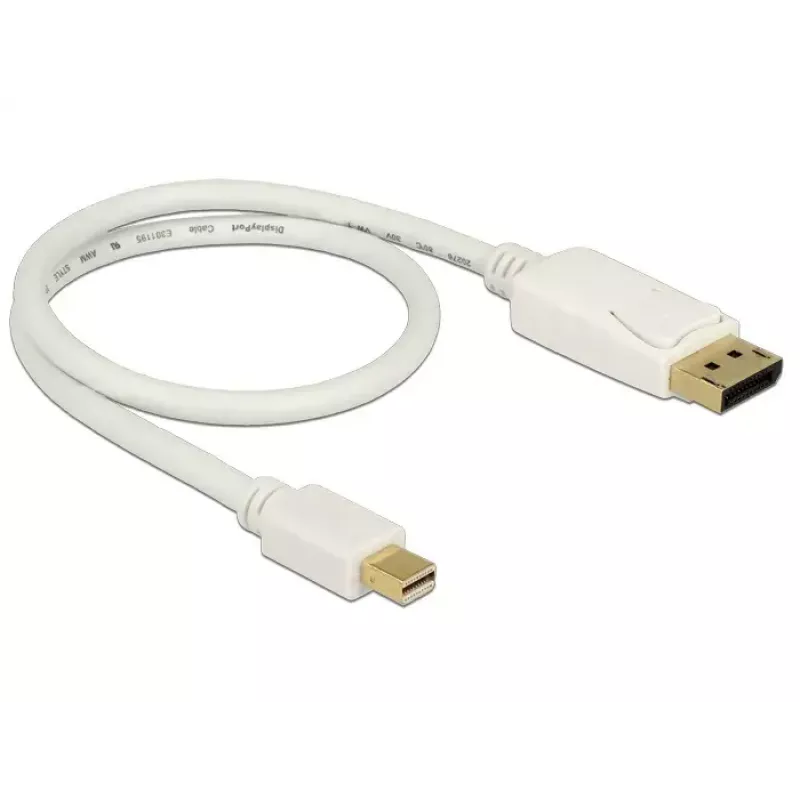

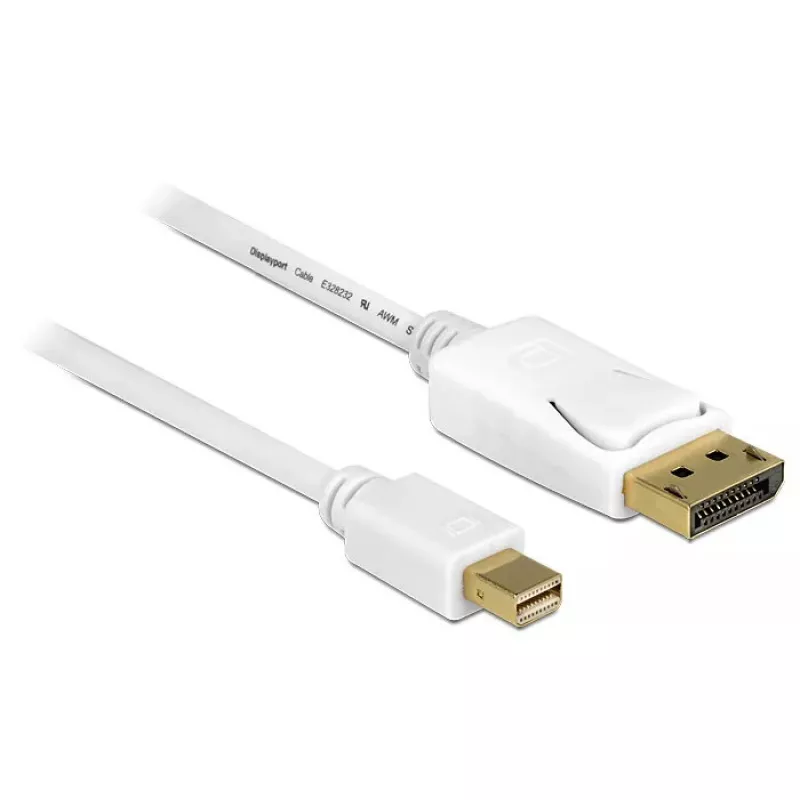

The DeLOCK Mini DisplayPort to DisplayPort cable (0.5 m) provides a Mini DisplayPort 20-pin male connector on one end and a DisplayPort 20-pin male connector on the other, suitable for transmitting both audio and video signals. Compliant with DisplayPort 1.2 specification, this white cable has a cable diameter of approximately 5.5 mm, copper conductors with net shielding and gold-plated connectors, and is packaged in a polybag for compact storage and transport.

Advantages

This Mini DisplayPort to DisplayPort cable supports data transfer rates up to 21.6 Gb/s and resolutions up to 3840 x 2160 at 60 Hz (depending on monitor and system). The 32 AWG copper conductors and net shielding help maintain signal integrity while gold-plated connectors improve contact reliability. Its short 0.5 m length reduces signal loss for close-range connections.

Suitable for

• Connecting laptops or PCs with a Mini DisplayPort output to monitors or displays with DisplayPort input
• Transmitting high-resolution video (up to 4K @ 60 Hz) and multichannel audio
• Use in desktop workstations, home offices, meeting rooms, and portable setups

Key specifications

• Connector 1: Mini DisplayPort 20 pin male
• Connector 2: DisplayPort 20 pin male
• Standard: DisplayPort 1.2
• Cable gauge: 32 AWG
• Cable diameter: approx. 5.5 mm
• Conductor: copper
• Shielding: net shielding
• Connector finish: gold-plated
• Data rate: up to 21.6 Gb/s
• Maximum resolution: up to 3840 x 2160 @ 60 Hz (dependent on monitor/system)
• Colour: white
• Length: approx. 0.5 m

How to use

Plug the Mini DisplayPort connector into the Mini DisplayPort output of your source device (for example a laptop) and connect the DisplayPort end to the monitor or display. Ensure both devices are powered on and select the correct input on the monitor if necessary. Adjust display settings on your computer to configure resolution and refresh rate up to the supported maximum.

Recommendations

For optimal performance at 4K @ 60 Hz, use with devices and monitors that explicitly support DisplayPort 1.2 and ensure firmware/drivers on the source device are up to date. Avoid sharp bends and excessive tension on the cable to preserve shielding and connector integrity.
