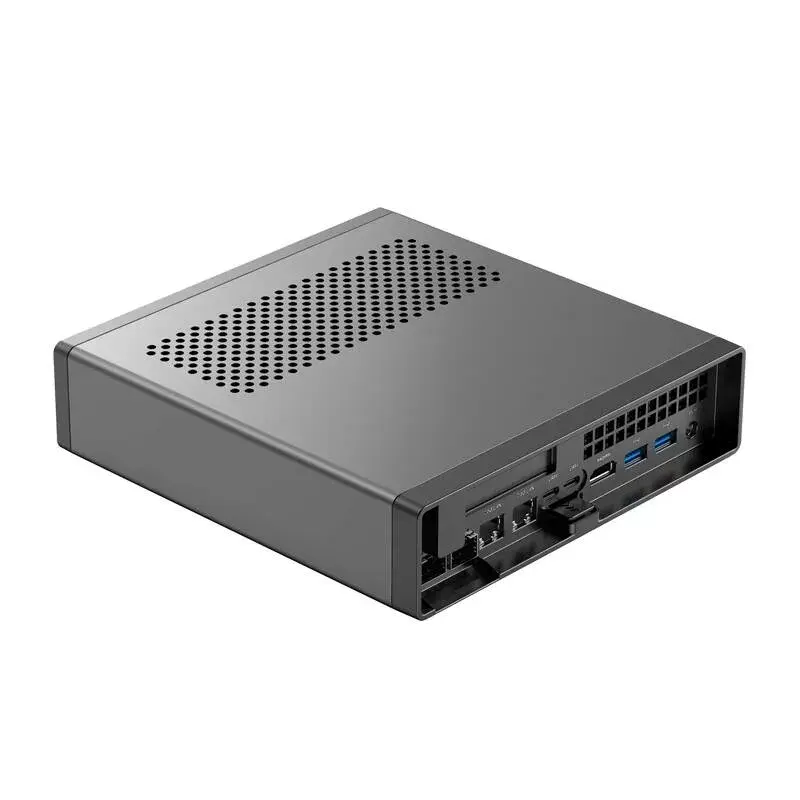

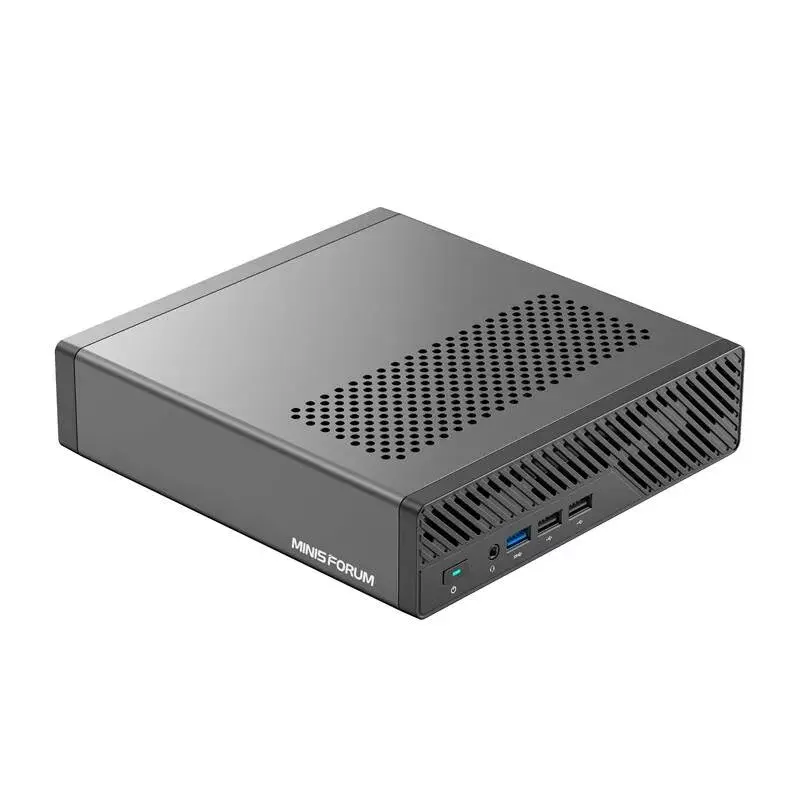

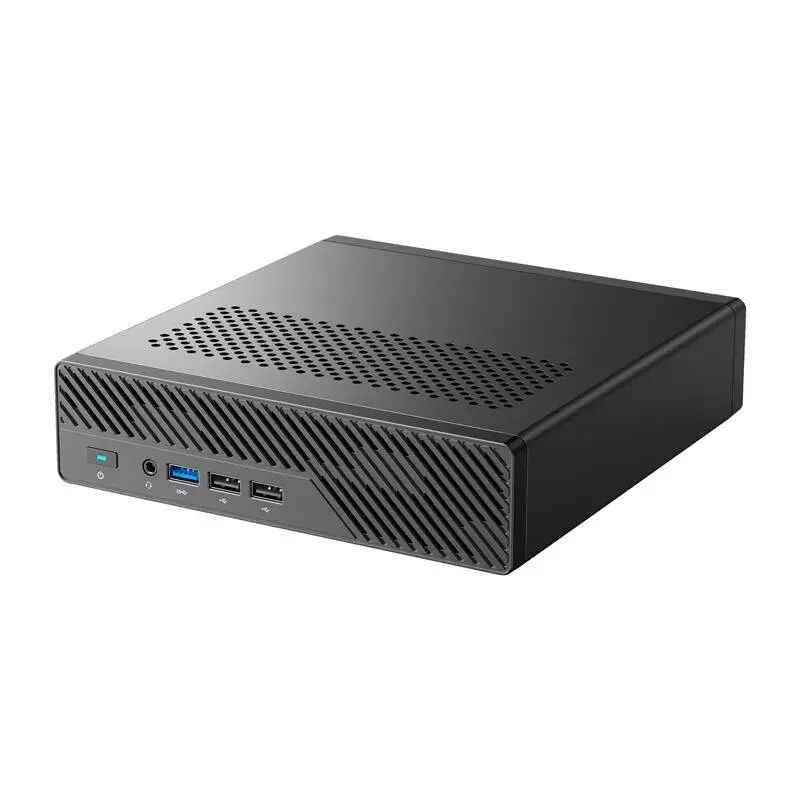

MINI-PC Minisforum MS-01-S1390 Intel Core i9-13900H barebone

MINI-PC Minisforum MS-01-S1390 Intel Core i9-13900H is a compact mini-PC designed for demanding desktop tasks. Equipped with an Intel Core i9-13900H (Raptor Lake-H) with up to 5.4 GHz turbo frequency, support for DDR5 memory up to 4800 MHz and expandability up to 64 GB, and dual NVMe M.2 SSD bays (2280/22110) supporting RAID0/RAID1 up to 4 TB, this model provides high processing power, fast storage and flexible connectivity in a small desktop form factor.

Advantages

The MINISFORUM MS-01-S1390 combines a 14-core/20-thread Intel Core i9-13900H processor built on Intel 7 technology with DDR5 memory support and dual NVMe storage to deliver smooth performance for intensive applications. It includes advanced connectivity with two 10Gbps SFP+ ports, two 2.5Gbps RJ45 ports and two USB4 ports with Thunderbolt-compatible features. Thermal management uses the Cold Wave 2.0 cooling system with liquid metal and active RAM and SSD cooling to maintain stable temperatures under load.

Suitable for

• Video editing and content creation
• Working with large databases and professional applications
• High-performance desktop workloads and multitasking
• Small office or home office setups requiring compact hardware

Key specifications

• Manufacturer: Minisforum
• Model: MS-01-S1390
• Processor: Intel Core i9-13900H (Raptor Lake-H), 14 cores / 20 threads, up to 5.4 GHz
• Processor technology: Intel 7
• Memory: DDR5, 4800 MHz, expandable up to 64 GB
• Storage: 2 × M.2 NVMe SSD (2280/22110) with RAID0/RAID1 support, maximum total up to 4 TB
• Graphics: Intel Iris Xe Graphics
• Connectivity: Wi‑Fi (M.2 2230, supports Wi‑Fi 6E, BT 5.2)

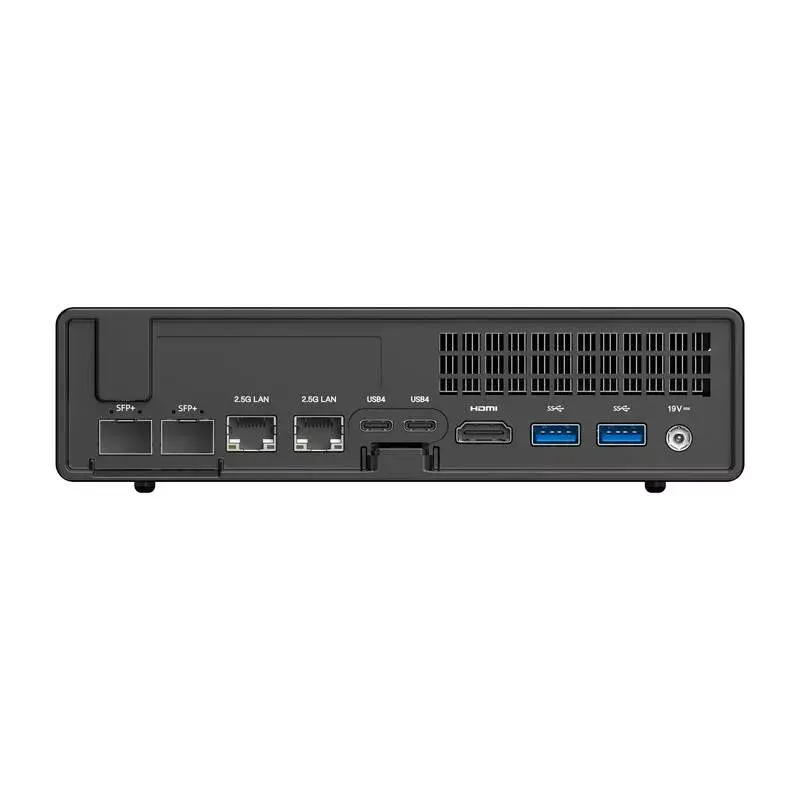

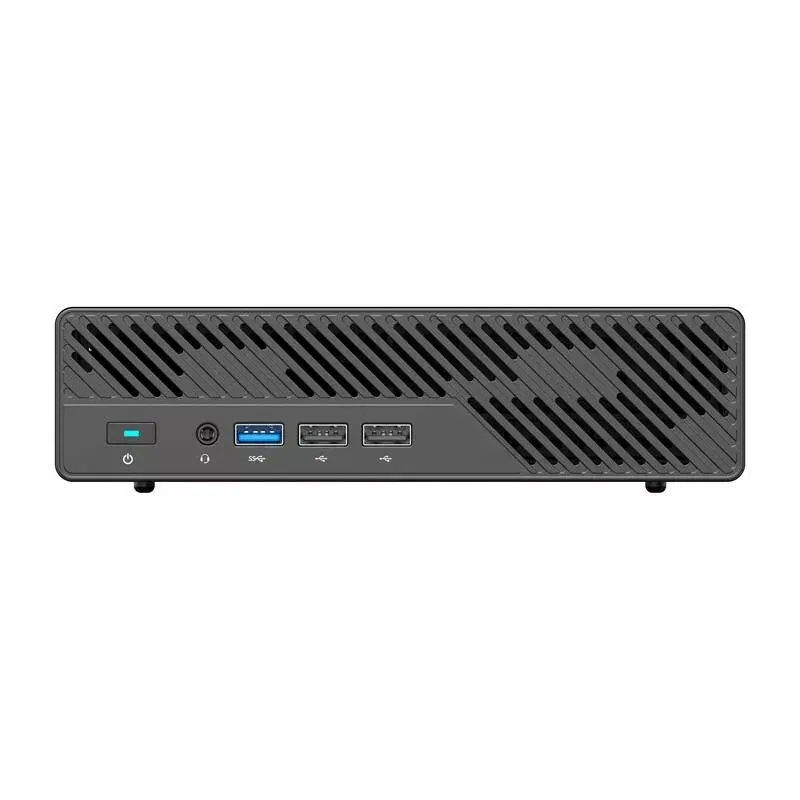

• Ports: 2 × SFP+ (10 Gbps), 2 × RJ45 2.5G (one with vPro-capable controller), multiple USB ports including USB4/Thunderbolt-capable ports, audio combo jack
• Cooling: Cold Wave 2.0 (liquid metal with active RAM and SSD cooling)
• Power supply: 19 V / 9.47 A
• Operating system: None (barebone)
• Mounting: Desktop

How to use

Install DDR5 memory modules and up to two M.2 NVMe SSDs according to the motherboard slots and secure them in place. Connect the power adapter (19 V / 9.47 A) and attach network and peripheral cables as required. Configure RAID0 or RAID1 in the system firmware or disk management if using both NVMe drives. Install the desired operating system and drivers; the unit ships without a preinstalled OS.

Recommendations

For sustained heavy workloads, ensure adequate ventilation around the mini-PC and use high-quality DDR5 memory and NVMe SSDs compatible with the stated sizes (2280/22110). When configuring networking for maximum throughput, use appropriate cabling and network equipment that supports 10 Gbps SFP+ and 2.5 Gbps RJ45 speeds.
