MOES CCP-TY-LN Wi-Fi/ZigBee ohjauspaneeli 4 tuuman LCD-näytöllä

Equipped with a quad-core Cortex-A35 processor and 1GB RAM, the MOES CCP-TY-LN delivers responsive centralized control for your smart home. Its 4-inch capacitive touch screen and built-in ZigBee 3.0 gateway manage up to 128 devices without extra hubs.

Overview

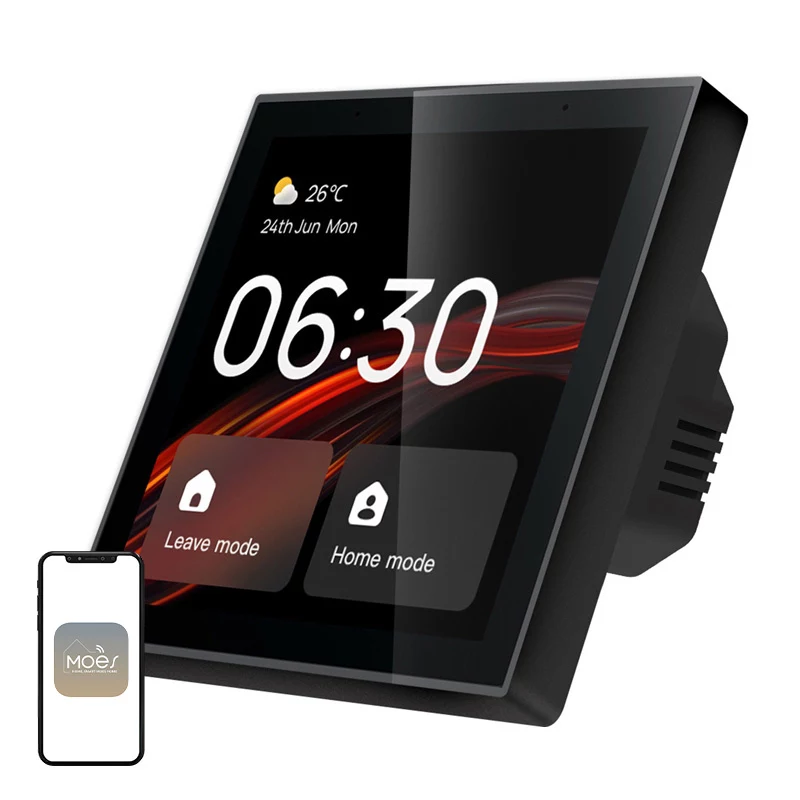

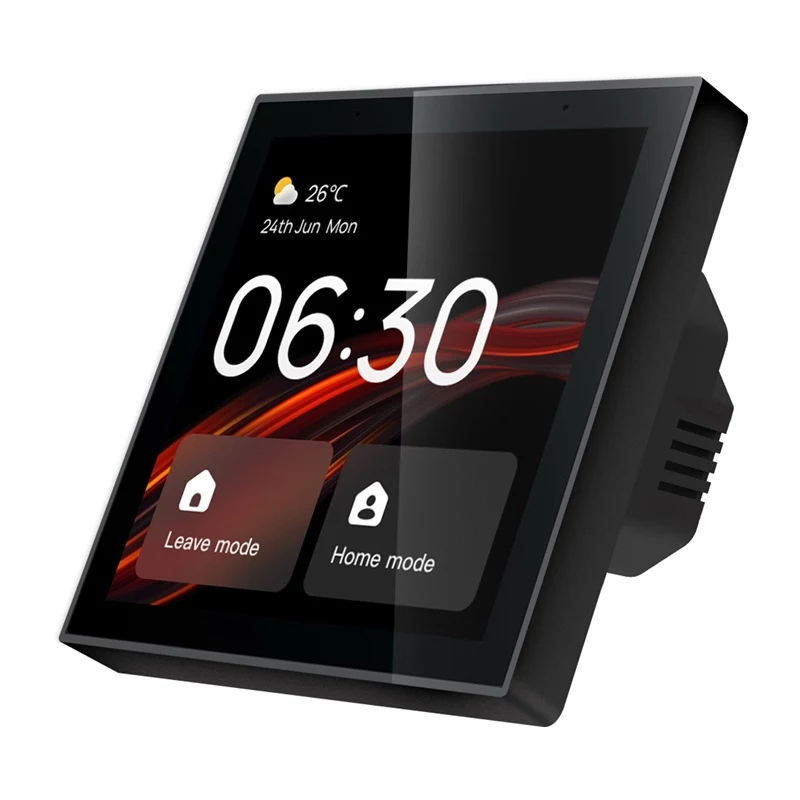

The MOES CCP-TY-LN is a wall-mounted control panel that unifies Wi-Fi and ZigBee devices through the Tuya Smart or Smart Life app. The 4-inch LCD capacitive touch screen offers intuitive navigation for device control, scene management, security monitoring, intercom, multimedia playback, and weather display. A built-in speaker and microphone enable two-way communication, while doorbell integration and camera preview enhance home security.

What stands out

• Built-in ZigBee 3.0 gateway supports up to 128 devices
• Quad-core Cortex-A35 processor with 1GB RAM and 8GB eMMC storage
• 4-inch capacitive touch screen for smooth interaction
• Voice assistant support via Tuya app integration with Alexa and Google Home

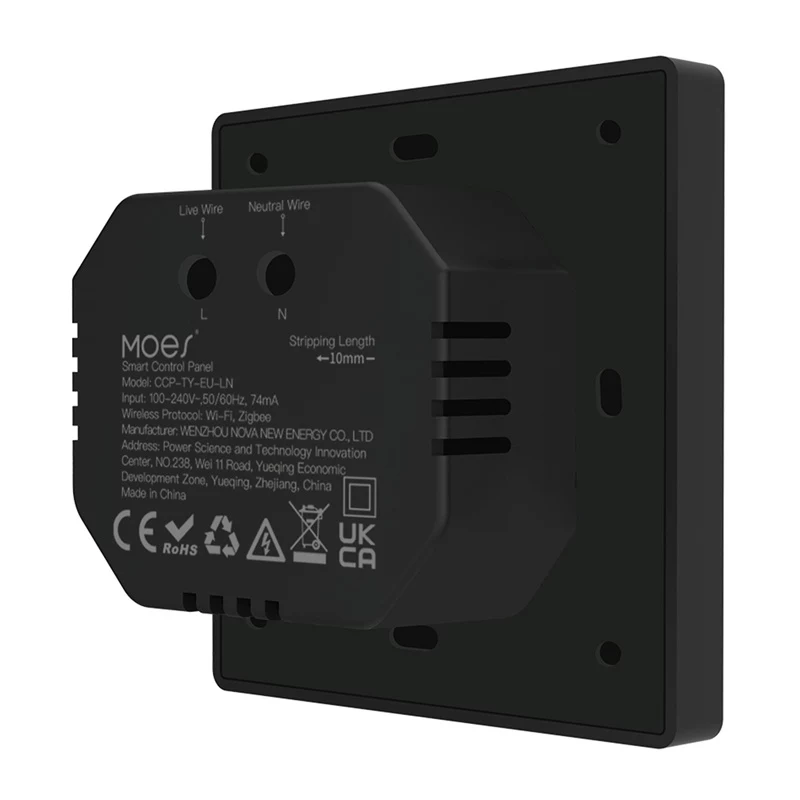

• Standard 86mm wall box mounting for easy installation

Technical details

• Display: 4-inch LCD capacitive touch screen
• Wireless: Wi-Fi 2.4GHz, ZigBee 3.0
• Power: AC 100-240V, 50/60Hz
• Processor: Quad-core Cortex-A35
• Memory: 1GB RAM, 8GB eMMC storage
• Operating system: Customized Android
• Operating temperature: 0℃ to 40℃
• Operating humidity: 5% to 95% RH (non-condensing)
• Housing material: PC+ABS

Our verdict

The MOES CCP-TY-LN is a powerful all-in-one smart home hub with a responsive touch screen and extensive ZigBee capacity, ideal for users seeking centralized control without multiple gateways.
