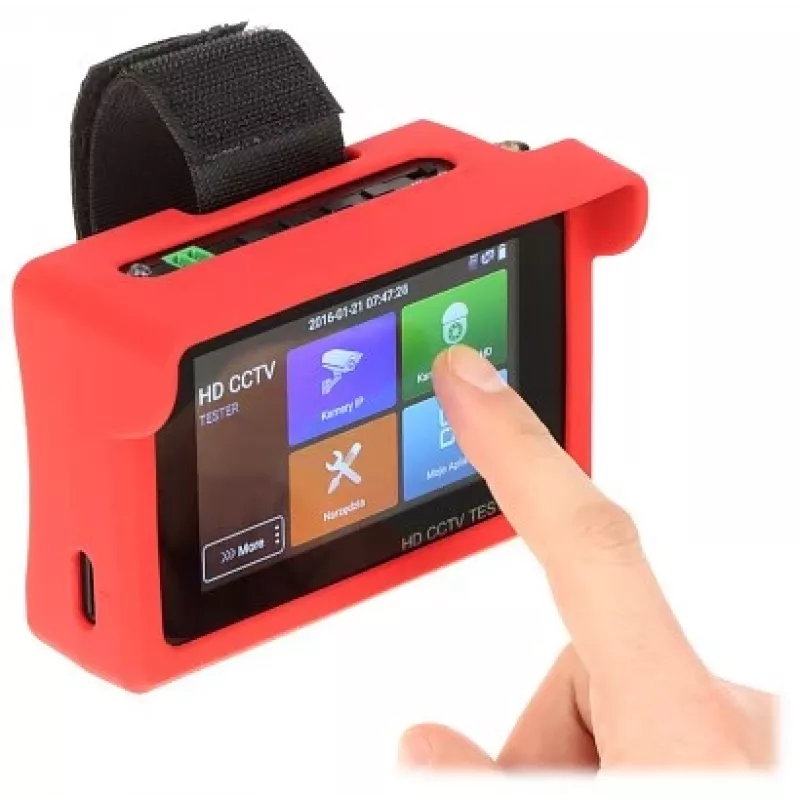

MONITOIMI-CCTV-TESTERI CS-HB-45W DELTA TESTER

The CS-HB-45W is a versatile CCTV tester designed for professional installation and maintenance of analog surveillance systems. It supports AHD, CVI, TVI, and CVBS video formats with resolution up to 5MP, featuring a 4.3-inch TFT LCD display, built-in PTZ control via RS485, UTP cable testing, and a 2600 mAh lithium-ion battery for up to 8 hours of operation. Ideal for field technicians, it includes a 12V/1A power output for camera testing and an LED flashlight for low-light environments.

Advantages

All-in-one solution for analog CCTV testing: supports multiple video standards, PTZ control, cable testing, and camera power supply in a portable device with long battery life.

Suitable for

• Security system installers and technicians
• Maintenance of analog CCTV systems (AHD, CVI, TVI, CVBS)
• Field testing of cameras, cables, and PTZ functions

Key specifications

• Display: 4.3" TFT LCD, 480x272 pixels
• Video support: AHD (up to 5MP), CVI (up to 4MP), TVI (up to 5MP), CVBS
• Input: 1x BNC video, 1x RCA audio
• PTZ: RS485 control
• Cable test: UTP via RJ45
• Power output: 12V/1A DC for camera
• Battery: Built-in 2600 mAh Li-ion, up to 8h operation
• Charging: DC 5V/1A
• Flashlight: Built-in LED
• Operating temperature: -10°C to 50°C

Recommendations

For optimal performance, fully charge the battery before first use. Use the included power adapter for charging. The tester is designed for indoor and outdoor use within specified temperature range.
