Monitor Näytin Atomos Ninja ULTRA 13,2 cm 1920 x 1080 kosketusnäyttö

The Atomos Ninja ULTRA is a 13.2 cm (5.2") SuperAtom IPS touchscreen monitor-recorder designed for mirrorless and cinematic cameras. It records a wide range of formats up to 8K RAW input and provides recording options including Apple ProRes, ProRes RAW, H.265 and DNx. Lightweight and built from ABS and aluminum, the Ninja ULTRA can be used handheld or mounted on larger rigs and supports removable AtomX SSDmini drives for extended recording times.

Advantages

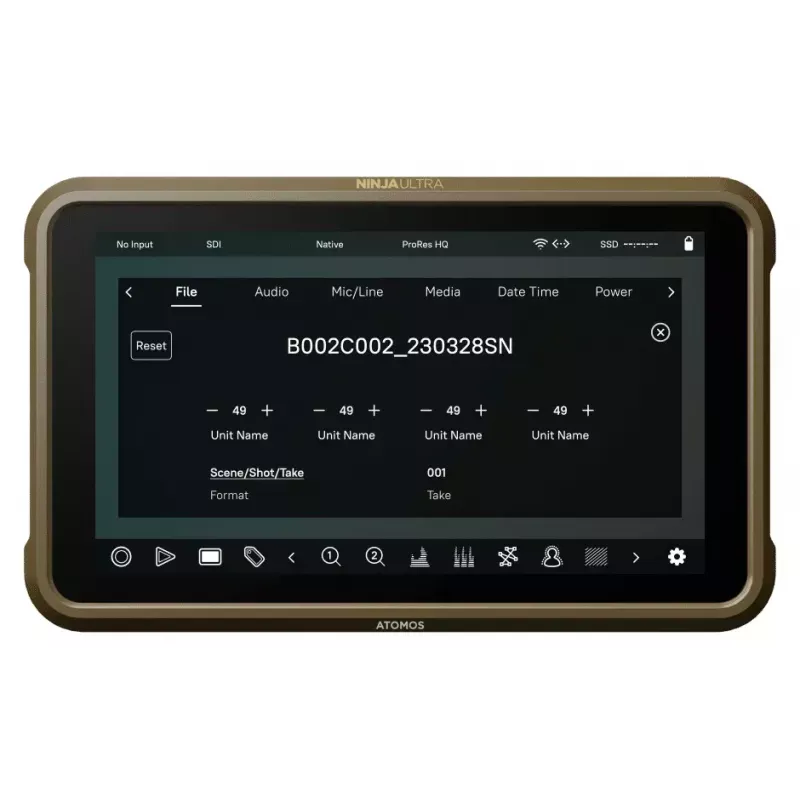

Ninja ULTRA combines high-quality onboard recording with cloud-capable workflows when paired with the Atomos Connect module. It supports simultaneous capture to ProRes RAW (up to 4K 60p) and H.265 proxies, preserves original camera filenames over SDI for easier conforming, and offers Wi‑Fi 6E and 1GbE connectivity via Atomos Connect. The unit includes features for time-lapse, timed recording, NDI TX video-over-IP (optional), and a suite of monitoring tools including LUT support, log capture and HDR preview.

Suitable for

• Mirrorless and cinema camera shooting where external recording or monitoring is required
• Productions needing ProRes RAW or high-quality ProRes recording up to 4K 60p
• Camera-to-cloud workflows and remote editing when used with Atomos Connect
• Live production environments using NDI or network-based video transport (with required accessories)

Key specifications

• Screen: 13.2 cm (5.2") SuperAtom IPS touchscreen, 1920 x 1080 resolution
• Supported inputs/outputs: HDMI and optional SDI via Atomos Connect; RAW HDMI input up to 8K 30fps
• Recording codecs: Apple ProRes (pre-activated), Apple ProRes RAW, H.265, DNx (QuickTime) — DNx (MXF) planned
• Simultaneous recording: ProRes RAW up to 4K 60p and HD 60p H.265 proxy

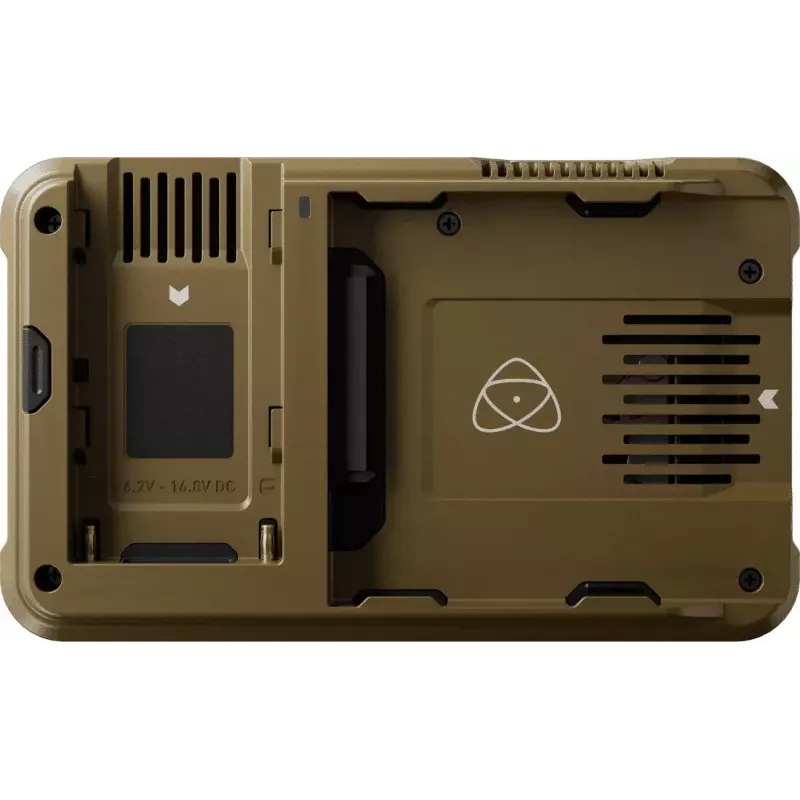

• Storage: removable AtomX SSDmini support, up to 4 TB (model-dependent)

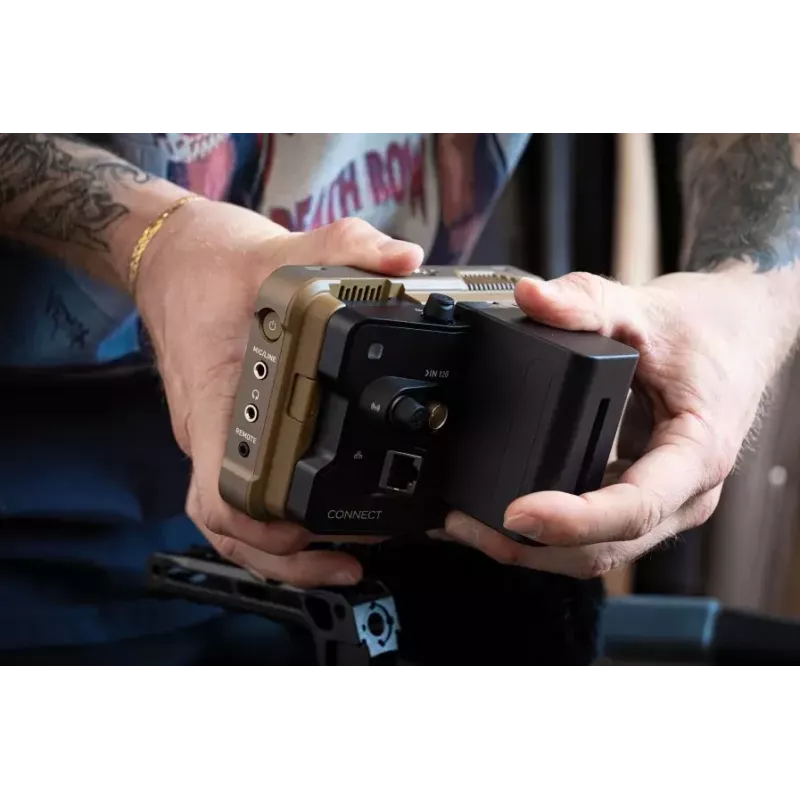

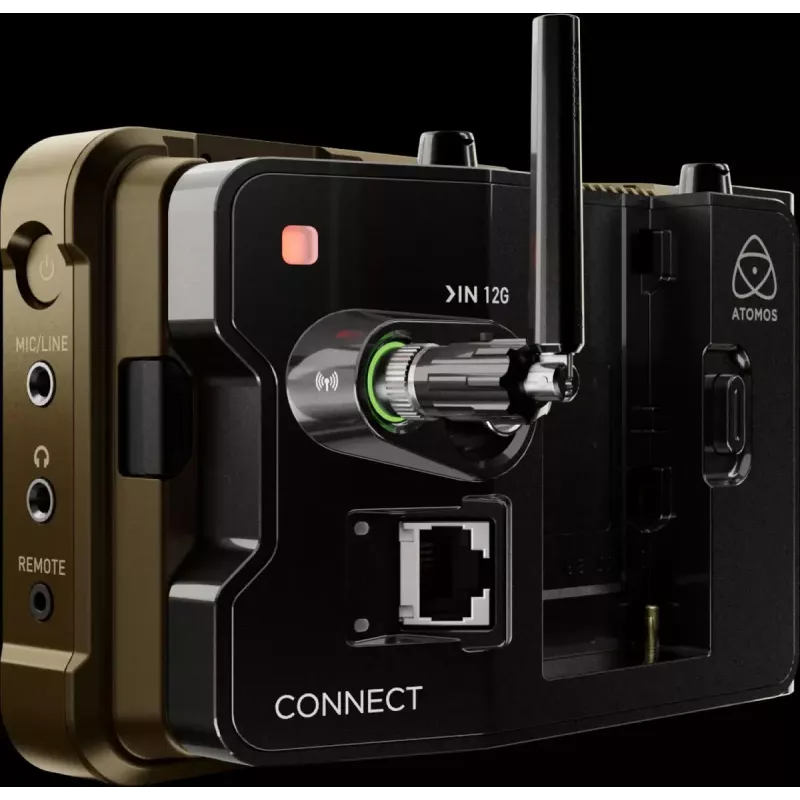

• Connectivity (with Atomos Connect): Wi‑Fi 6E, 1GbE Ethernet, SDI, AirGlu timecode sync, AtomRemote app support
• Weight: approximately 360 g

How to use

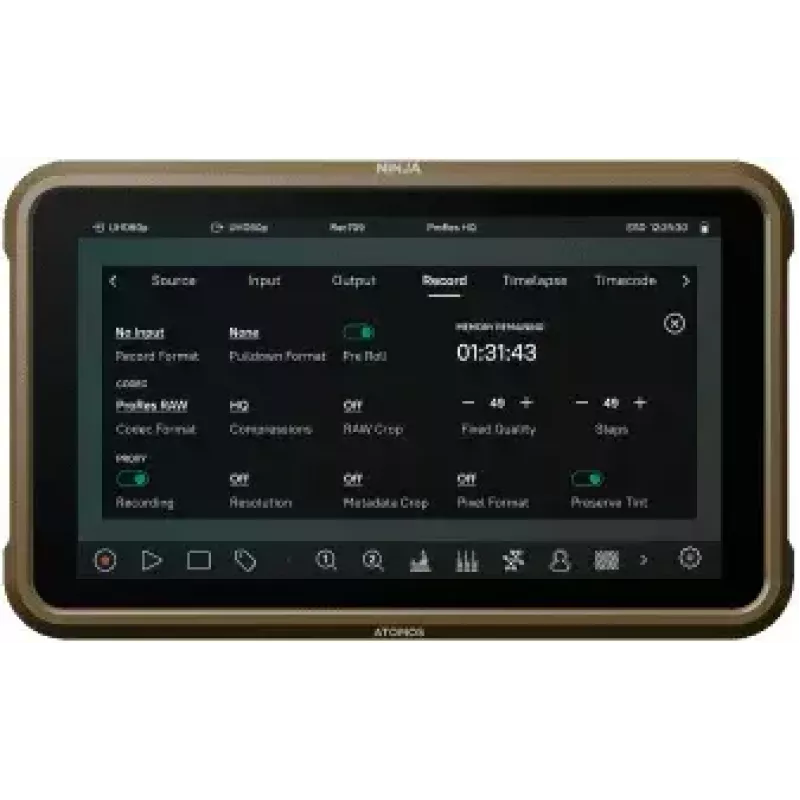

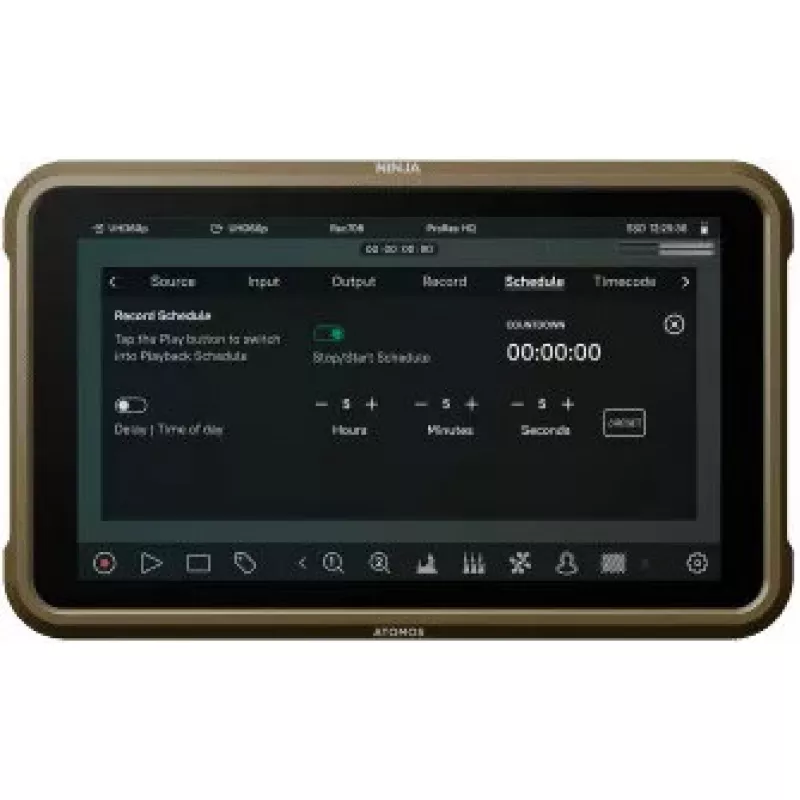

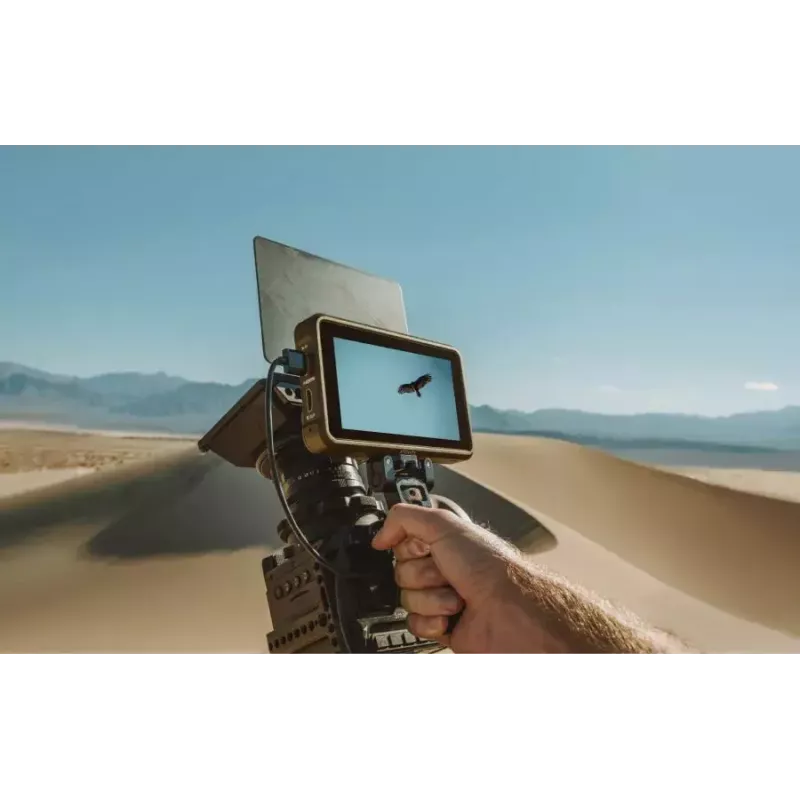

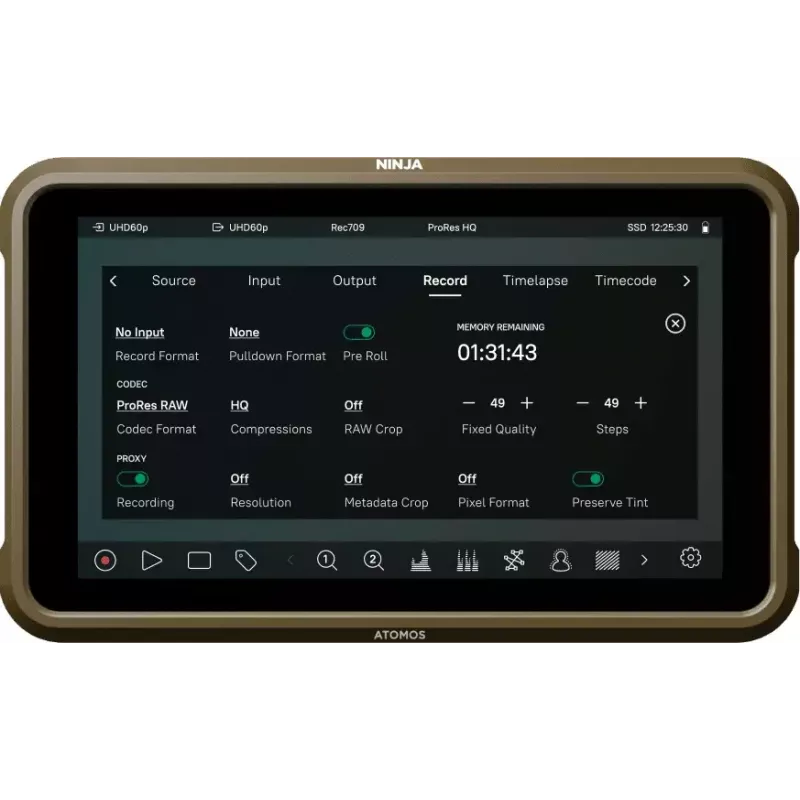

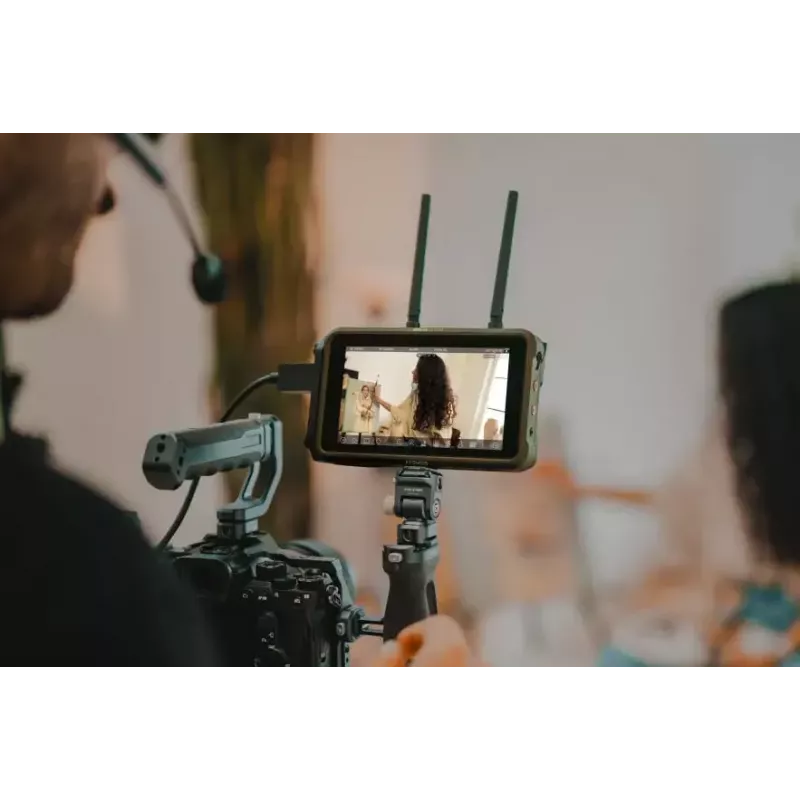

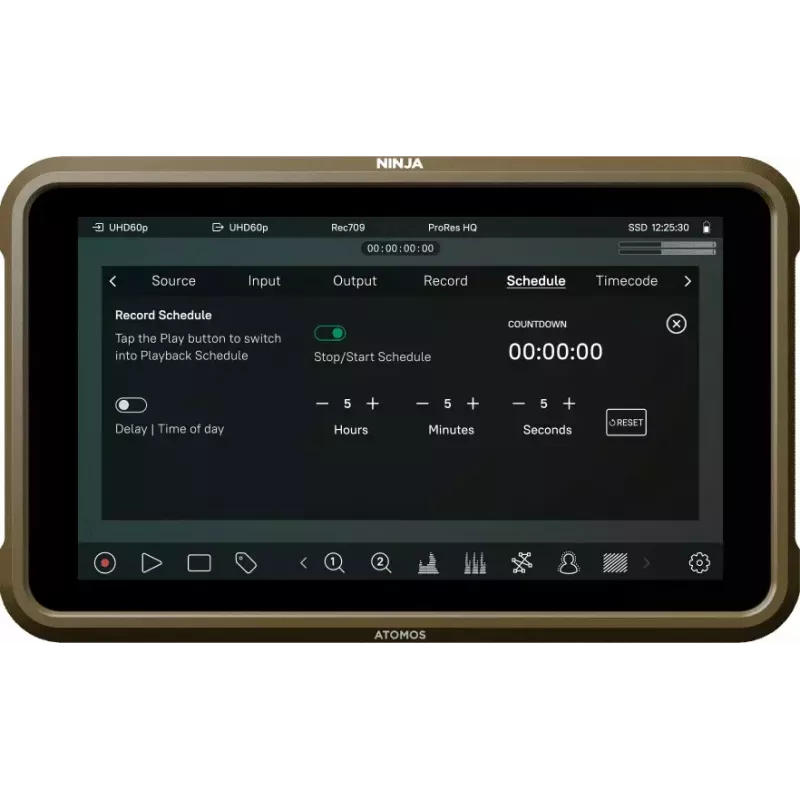

Mount the Ninja ULTRA to your camera rig using the supplied 1/4–20 adapter or 3/8–16 mount points. Connect the camera via HDMI for RAW or standard output; attach Atomos Connect to enable SDI, network and Wi‑Fi 6E features. Select the desired codec and resolution in AtomOS, insert a supported AtomX SSDmini drive, and start recording. Use the touchscreen to apply LUTs, monitor exposure and focus, set timed or time-lapse recordings, and control capture settings. To enable H.265 or DNx codecs, register the product at my.atomos.com and activate the codecs using the provided token system; ProRes RAW activation requires connecting a compatible RAW camera during activation.

Recommendations

For cloud workflows and the best connectivity, pair Ninja ULTRA with Atomos Connect and use Wi‑Fi 6E or wired Ethernet. Use ProRes RAW for your archival/master files and record H.265 proxies for efficient camera-to-cloud transfer. For long recording sessions or higher-bitrate formats, use a certified AtomX SSDmini with sufficient capacity and check drive firmware compatibility regularly.
