Monitori Elo Touch Solutions 1509L 15,6" kosketusnäyttö LED 1366 x 768

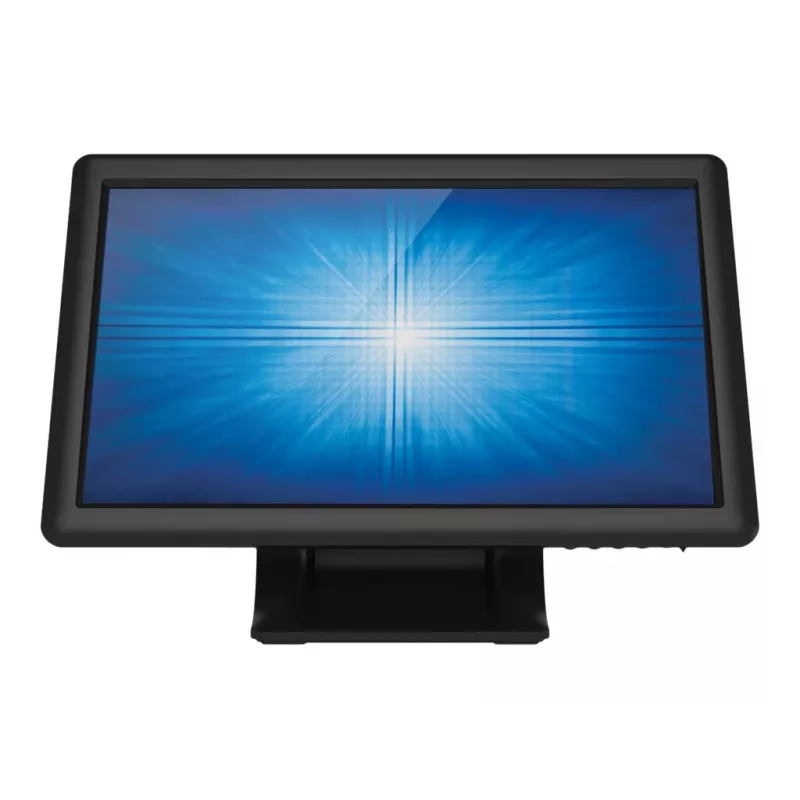

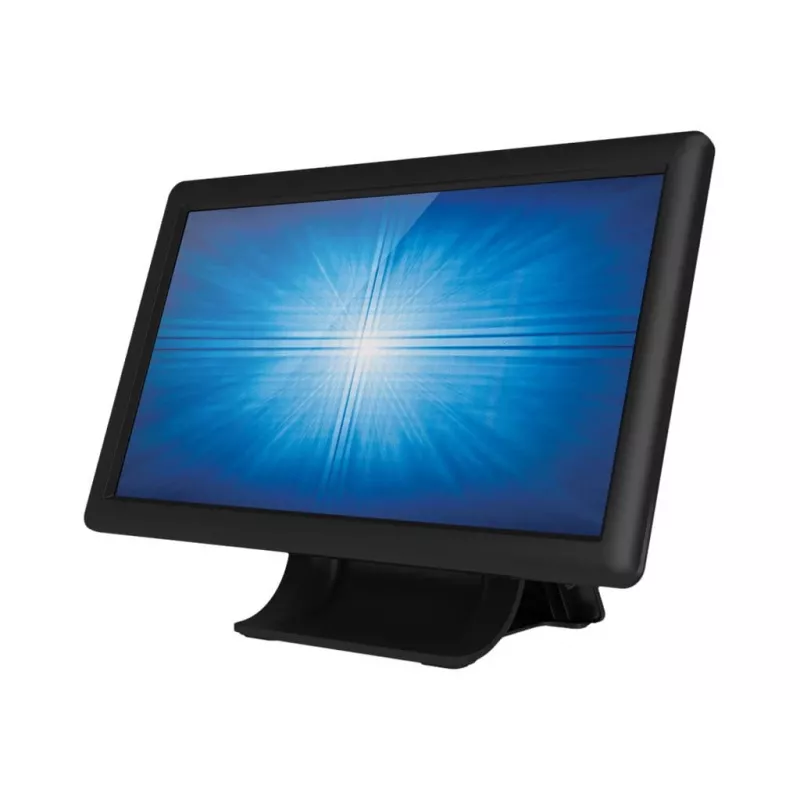

The Elo 1509L is a 15.6-inch widescreen LED touchscreen monitor designed for commercial and retail environments. It features a pure glass front for high light transmission, TouchPro® projected capacitive (PCAP) multi-touch capability, an energy-efficient LED backlight and a low-profile, retail-hardened construction. The monitor supports mounting on a counter, wall or pole and is available with an optional field-installable magnetic stripe reader.

Advantages

The integrated TouchPro® PCAP touch delivers fast, accurate and drift-free input using a finger, gloved hand or soft stylus, and the all-glass surface preserves image clarity. LED backlighting reduces power consumption while maintaining a 1366 x 768 resolution and 200 cd/m² brightness. The unit is built to commercial standards with sealed touch for resistance to water, dust and grease, VESA-compatible mounting when the stand is removed, and a two-year manufacturer warranty backed by extensive reliability testing.

Suitable for

• Retail point-of-sale terminals
• Hospitality check-in and self-service kiosks
• Interactive digital signage and information displays
• Counter-mounted touch terminals in service environments

Key specifications

• Display diagonal: 15.6" (39.6 cm)
• Resolution: 1366 x 768 pixels
• Panel type: TFT-LCD, LED backlight
• Brightness: 200 cd/m²
• Aspect ratio: 16:9
• Response time: 12 ms, Refresh rate: 60 Hz
• Contrast ratio (typical): 500:1
• VESA mounting: Yes (stand removable for wall or pole mount)
• Touch technology: TouchPro® PCAP multi-touch; sealed against water, dust and grease
• Colour: Black
• Energy class (SDR): C; Energy consumption (SDR) per 1000 h: 8 kWh

How to use

Install the monitor on a counter using the included stand or remove the stand and attach the unit to a VESA-compatible wall or pole mount. Connect power and video sources according to the supplied documentation and, if required, install the optional magnetic stripe reader in the field following the manufacturer’s instructions. Use touch input directly on the glass surface with a finger, gloved hand or soft stylus; no calibration is normally required for typical point-of-sale and kiosk applications.

Recommendations

For reliable operation, place the monitor in a protected location away from direct water exposure and clean the glass surface with a soft, lint-free cloth and non-abrasive cleaner. Ensure proper ventilation around the unit, use recommended mounting hardware for pole or wall installations, and follow Elo’s guidance for magnetic stripe reader installation if used.
