Monitoriteline SpeaKa Professional SP-1664312 55,9 cm (22 tuumaa) pöytä

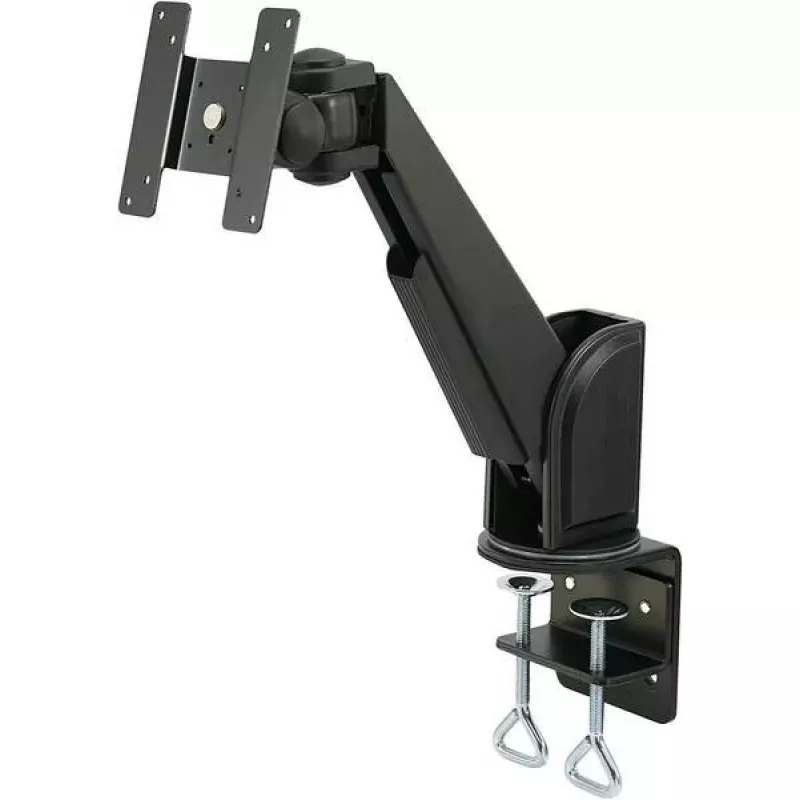

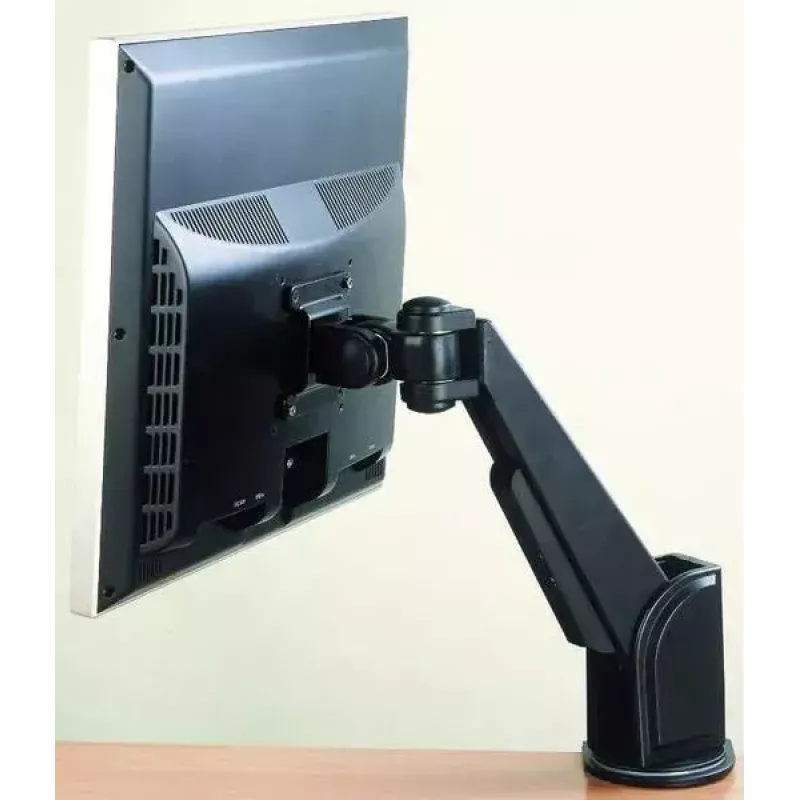

The SpeaKa Professional SP-1664312 55.9 cm (22") Desk Monitor Mount provides adjustable height, tilt and rotation to achieve an ergonomic viewing position. The heavy base and included clamp ensure a stable attachment to the desk without the need for drilling. The holder supports monitors and small TVs with VESA hole patterns of 75 x 75 mm or 100 x 100 mm and a screen size from 33 cm (13") up to 55.9 cm (22") with a maximum load of 10 kg.

Advantages

The mount allows 360° rotation around the screen axis and ±90° tilt (180° total) to set flexible viewing angles. Height adjustment between 28.3 and 33.3 cm enables fine tuning to the user’s preferred eye level. A heavy base plus a C-clamp (included) give a secure, non-permanent desk attachment (maximum table thickness 90 mm). All required mounting hardware is supplied for straightforward installation.

Suitable for

• Monitors 33 cm (13") to 55.9 cm (22") with VESA 75 x 75 or 100 x 100 mm
• Lightweight small TVs that match the VESA standard and do not exceed 10 kg
• Home offices, workplaces, study desks and small meeting rooms

Key specifications

• Model: SpeaKa Professional SP-1664312
• Supported screen size: 33 cm (13") – 55.9 cm (22")
• Maximum load: 10 kg
• VESA compatibility: 75 x 75 mm, 100 x 100 mm
• Height adjustment: 28.3 – 33.3 cm
• Rotation: 360°; Tilt: up to 180° total
• Mounting method: Desk clamp (C-clamp included); no drilling required
• Maximum table thickness for clamp: 90 mm
• MPN: SP-1664312; EAN: 4016138715989

How to use

Attach the mounting plate to the back of the monitor using the supplied screws that match the VESA pattern. Secure the base to the desk edge using the included C-clamp, ensuring table thickness does not exceed 90 mm, or use the heavy base as instructed. Adjust the height of the bracket to the desired eye level (28.3–33.3 cm), then set rotation and tilt to obtain the required viewing angle. Verify that the monitor is stable and all fasteners are tightened before use.

Recommendations

Check the monitor’s weight and VESA hole spacing before installation. For safe operation, do not exceed the 10 kg load limit and confirm the desk edge is strong enough to support the mount and display.
