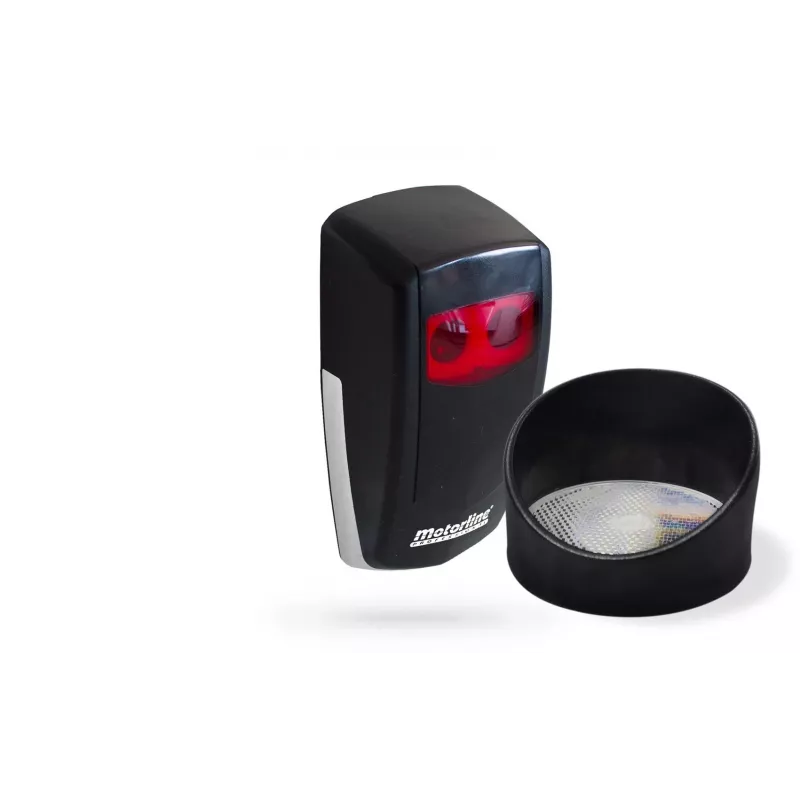

Motorline MFE heijastava valokenno (heijastimella) 12m kantama 12-24V AC/DC IP54

The Motorline MFE reflective photocell is a high-performance safety sensor designed for automatic gates, garage doors, and access control systems. Featuring a modulated infrared beam and automatic alignment, it ensures reliable detection up to 12 meters. The IP54-rated housing provides protection against dust and water splashes, making it suitable for outdoor use.

Advantages

Easy installation with surface mount and automatic beam alignment. Selectable N.O./N.C. relay output for flexible integration. Low power consumption and wide operating temperature range ensure long-term reliability.

Suitable for

• Automatic gates
• Garage doors
• Access control systems
• Industrial door safety

Key specifications

• Sensor type: Reflective photocell
• Detection range: 12 meters (max)
• Power supply: 12-24V AC/DC
• Output: Relay (N.O./N.C. selectable)
• Max. relay contact load: 1A / 30V DC
• Current consumption: 30mA (at 24V DC)
• Response time: <20ms
• Ingress protection: IP54
• Operating temperature: -20°C to +55°C
• Housing material: ABS plastic
• Light source: Infrared LED
• Beam modulation: Modulated infrared
• Beam alignment: Automatic
• Mounting type: Surface mount
• Included accessories: Reflector mirror, mounting screws

Recommendations

For optimal performance, ensure the reflector is clean and properly aligned. Use with compatible gate controllers for safety compliance.
