Mount Axis 01470-001 valvontakameran lisävaruste

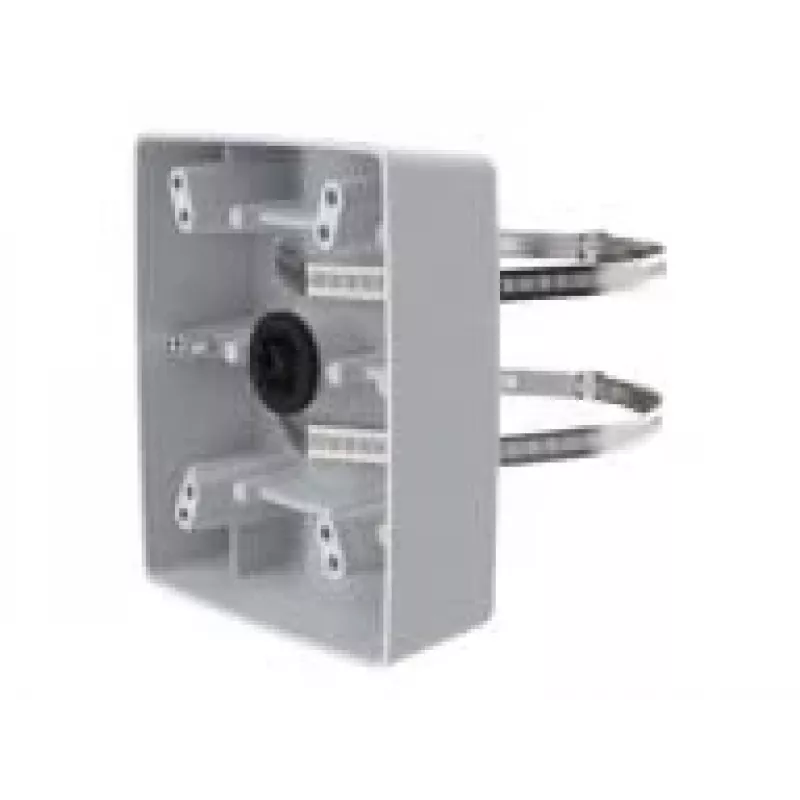

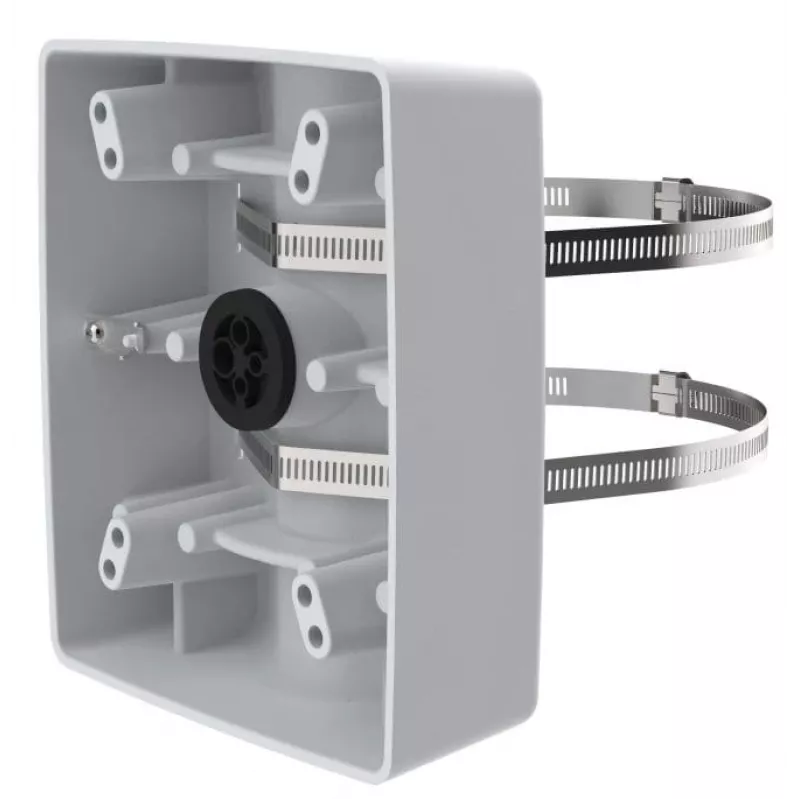

AXIS T91B57 Pole Mount is a robust mounting accessory compatible with selected AXIS T91 wall mounts and the AXIS T98A cabinet series. It adjusts to fit poles with diameters from 100 to 410 mm (4–16 in) and includes a closed back and cable gasket to protect internal components from insects and environmental exposure.

Advantages

The mount offers IK10-rated impact resistance to help prevent damage from vandalism. Its adjustable design accommodates a wide range of pole diameters, while the closed back and integrated cable gasket enhance protection against insects and moisture. Compatibility with AXIS T91 wall mounts and AXIS T98A cabinets simplifies installation in supported systems.

Key specifications

• Compatible with selected AXIS T91 wall mounts
• Compatible with AXIS T98A cabinet series
• Adjustable pole diameter: 100–410 mm (4–16 in)
• Impact protection rating: IK10
• Closed back design
• Cable gasket for insect protection

How to use

Mount the AXIS T91B57 onto a suitable pole by adjusting the bracket to match the pole diameter within the 100–410 mm range, then secure the mount according to the instructions for the selected AXIS T91 wall mount or AXIS T98A cabinet. Ensure the cable passes through the gasket and that the closed back is properly seated to maintain protection against insects and environmental ingress.

Recommendations

Use the AXIS T91B57 with compatible AXIS T91 wall mounts or AXIS T98A cabinets and follow the manufacturer’s installation guidelines. Verify pole diameter and condition before installation and routinely inspect seals and fixings to maintain IK10 impact protection and insect-resistant integrity.
