MSI PRO B550M-P WiFi6E emolevy (B550, AM4, mATX, AMD)

The MSI PRO B550M-P WiFi6E brings Wi-Fi 6E connectivity to the proven AMD B550 platform in a compact micro-ATX form factor. Unlike many budget boards that rely on older wireless standards, this model includes the latest 6 GHz band for low-latency gaming and smooth 4K streaming, while retaining full support for Ryzen 5000 and 3000 series processors.

Highlights

• AMD B550 chipset with AM4 socket for Ryzen 5000/3000 series
• Wi-Fi 6E (802.11ax) and Bluetooth 5.1 for high-speed wireless
• 4x DDR4 DIMM slots, up to 128 GB, overclocking up to 4400 MHz
• PCIe 4.0 x16 slot and dual M.2 slots for fast storage
• 7.1-channel HD audio with Realtek ALC897 codec
• Multiple display outputs: HDMI, DisplayPort, and VGA

In daily use

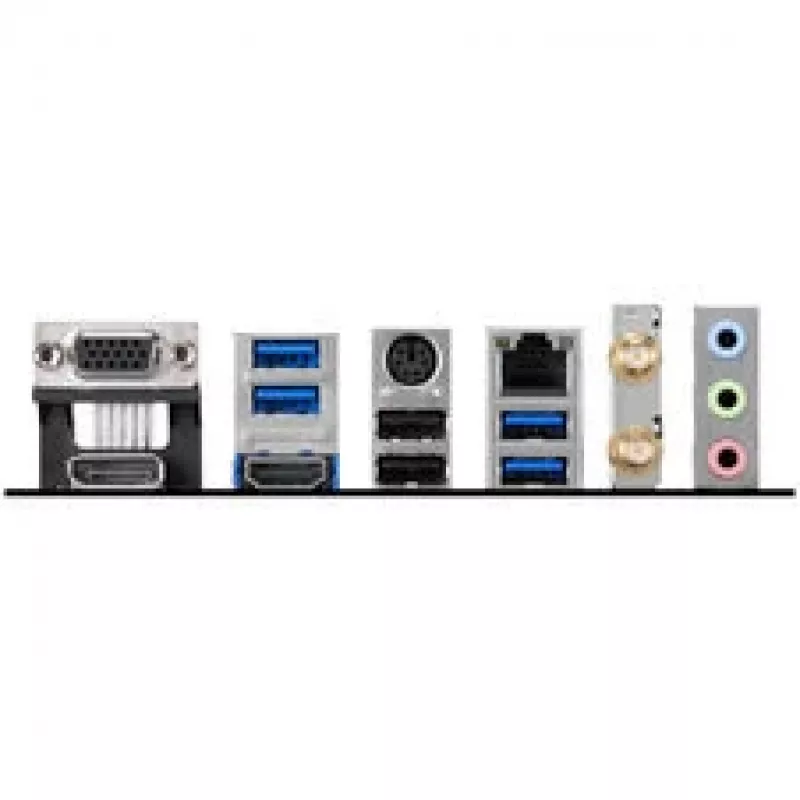

This board is ideal for compact builds where a full-size ATX won't fit. The micro-ATX footprint fits easily into smaller cases, while the four memory slots give you room to grow. The Wi-Fi 6E module ensures you're ready for the newest routers, and the dual M.2 slots let you run a PCIe 4.0 NVMe drive for lightning-fast boot times. The rear I/O includes two USB 3.2 Gen 1 Type-A ports and four USB 2.0 ports, plus HDMI, DisplayPort, and VGA for flexible monitor connections. The Realtek ALC897 codec delivers crisp 7.1-channel audio, and the board includes both 4-pin RGB and 3-pin ARGB headers for customizable lighting.

Full specifications

• Chipset: AMD B550
• Socket: AM4
• Form factor: Micro-ATX
• Memory: 4x DDR4 DIMM, max 128 GB, up to 4400 MHz (OC)
• Expansion: 1x PCIe 4.0/3.0 x16
• Storage: 2x M.2 (1x PCIe 4.0/3.0 x4, 1x PCIe 3.0 x4), 4x SATA 6Gb/s
• Network: Gigabit Ethernet, Wi-Fi 6E (802.11ax), Bluetooth 5.1
• Audio: Realtek ALC897, 7.1-channel HD audio
• Rear USB: 2x USB 3.2 Gen 1 Type-A, 4x USB 2.0 Type-A
• Video outputs: HDMI, DisplayPort, VGA
• Power connectors: 1x 24-pin ATX, 1x 8-pin EPS
• RGB headers: 1x 4-pin RGB, 2x 3-pin ARGB

Final note

The MSI PRO B550M-P WiFi6E is a well-rounded micro-ATX board that delivers modern wireless connectivity and PCIe 4.0 support without breaking the bank. It's a solid foundation for a compact Ryzen build.
