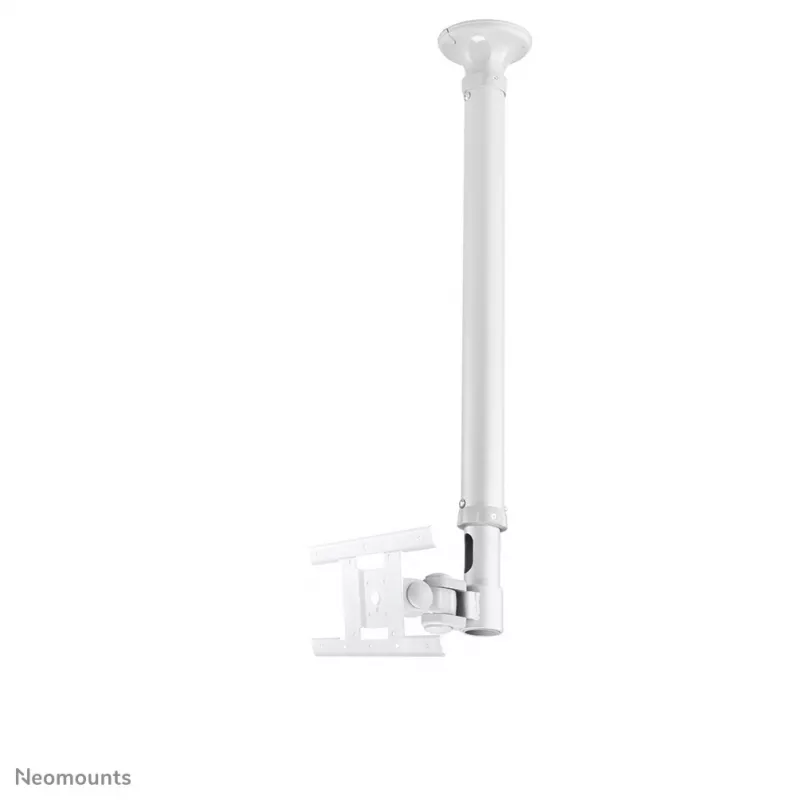

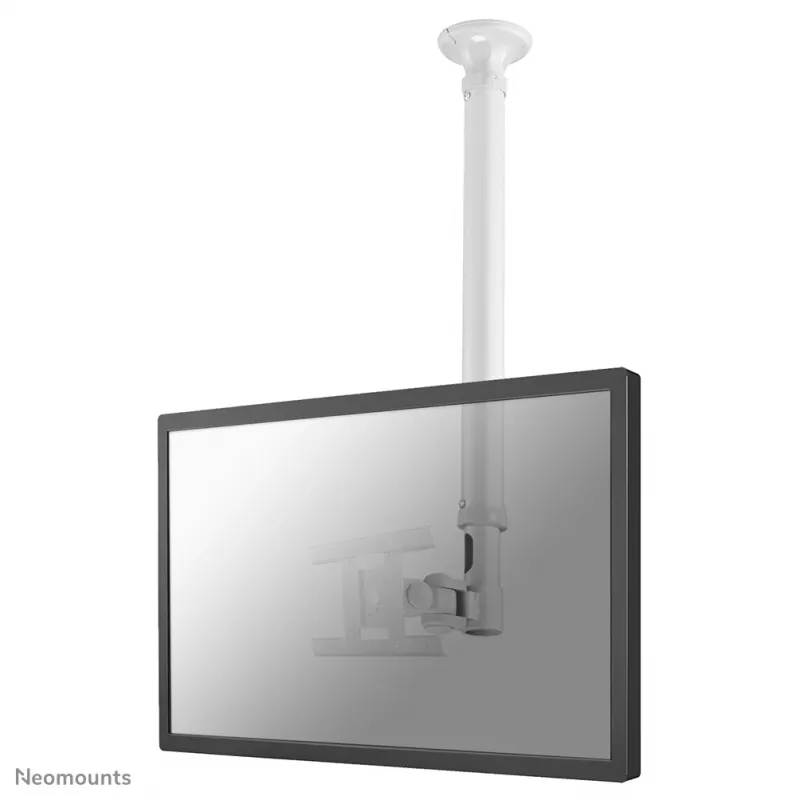

Neomounts FPMA-C100WHITE näytön/TV:n kattoteline 10-30 tuuman - k 79-129 cm

Ceiling monitor mount Neomounts FPMA-C100WHITE is designed for secure ceiling installation of flat screens from 10" to 30" (25.4–76.2 cm) and supports a maximum load of 12 kg. The mount is compatible with VESA patterns from 75×75 to 200×100 and features an adjustable pole with a height range of 790–1290 mm. White finish and integrated cable management allow tidy installation in offices, meeting rooms and public spaces where wall or floor placement is not suitable.

Advantages

The FPMA-C100WHITE provides wide viewing flexibility with tilt up to 180° and swivel up to 180°, plus rotation capability for full screen orientation adjustment. Its two pivot points and height adjustability make it suitable for different ceiling heights and sightlines. Built-in cable management conceals cables inside the mounting column for a clean appearance. The package includes all necessary installation hardware for straightforward assembly and ceiling fixing.

Suitable for

• Mounting 10"–30" monitors in offices and meeting rooms
• Public areas and retail spaces where ceiling mounting is preferred
• Rooms with limited wall space or where floor stands are impractical

Key specifications

• Screen size compatibility: 25.4–76.2 cm (10"–30")
• Maximum load capacity: 12 kg
• VESA compatibility: 75×75 up to 200×100

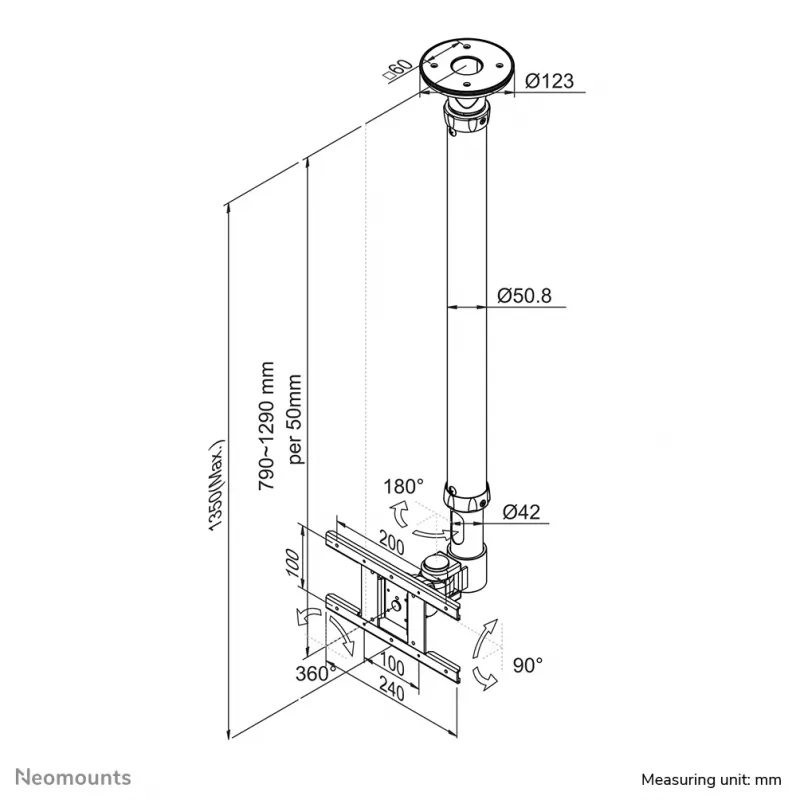

• Height adjustment range: 790–1290 mm
• Tilt range: 0–180°
• Swivel range: 180° (with 360° rotation capability of the screen)
• Finish: white
• Two pivot points for flexible positioning
• Integrated cable management inside the pole

How to use

Attach the mounting plate to the monitor following the VESA hole pattern and secure it with the supplied hardware. Fix the ceiling plate to a suitably strong structural ceiling surface using the included fasteners and recommended anchors. Slide the pole into the ceiling bracket and adjust the height within the 790–1290 mm range, then secure the position. Use the pivot points to set tilt and swivel angles to obtain the desired viewing orientation. Route monitor cables through the integrated cable management column to conceal and protect wiring.

Recommendations

Ensure the ceiling structure can support the combined weight of the mount and screen; use appropriate anchors for the ceiling material. Verify the monitor’s VESA pattern and weight before installation. For safety and optimal positioning, consider professional installation if you are unsure about ceiling fixing or electrical routing.
