Neomounts TV-kattoteline CL35-340BL22 max. paino 45 kg 23-42"

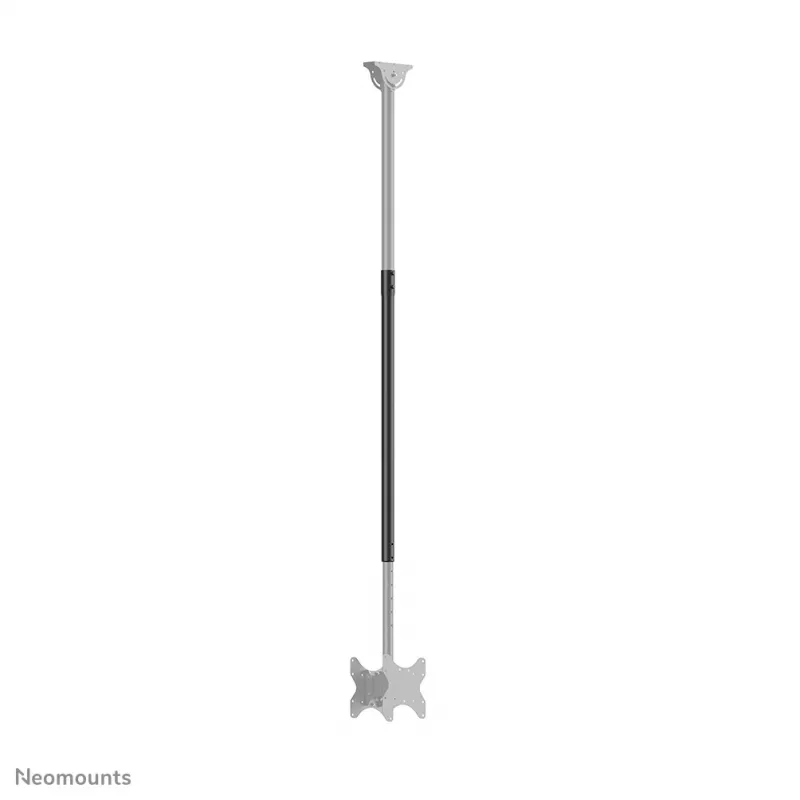

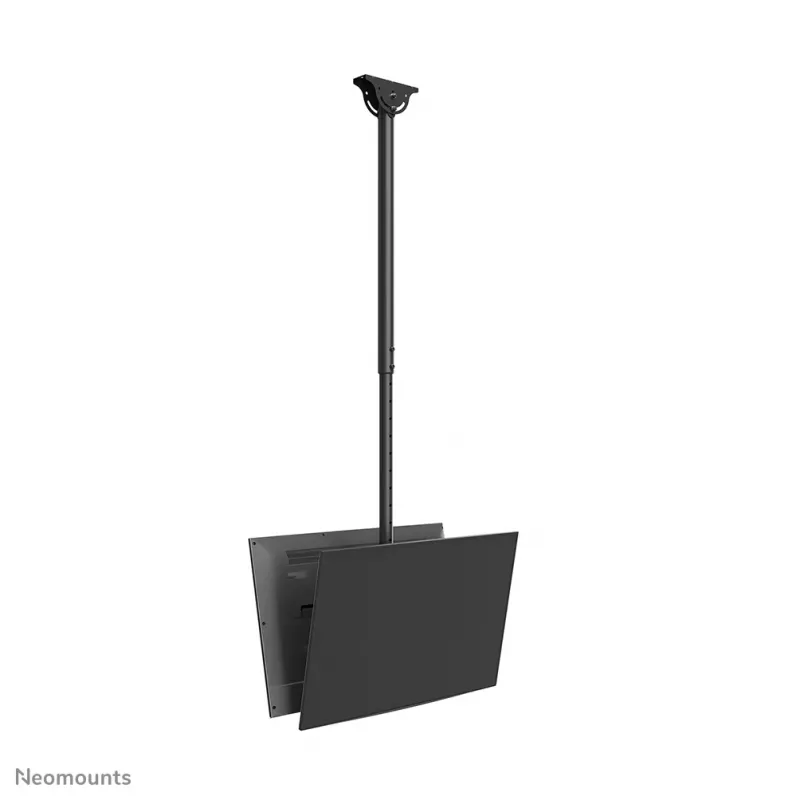

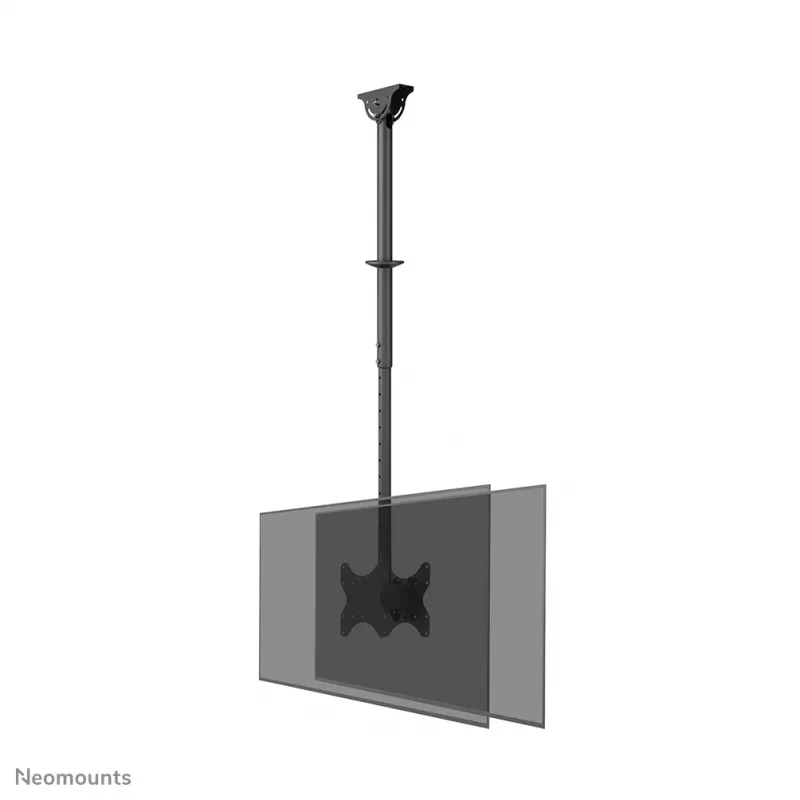

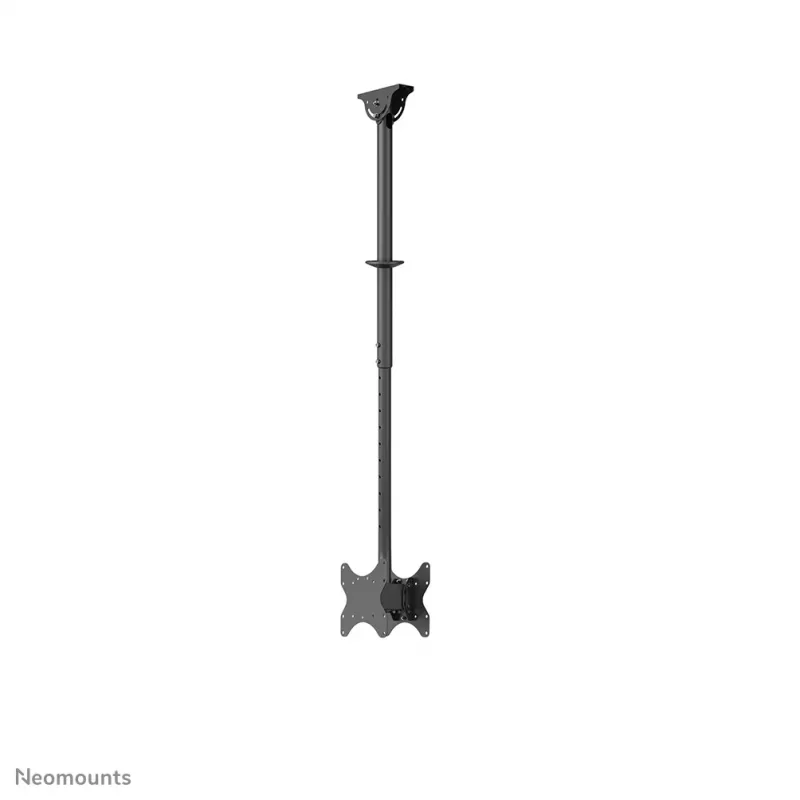

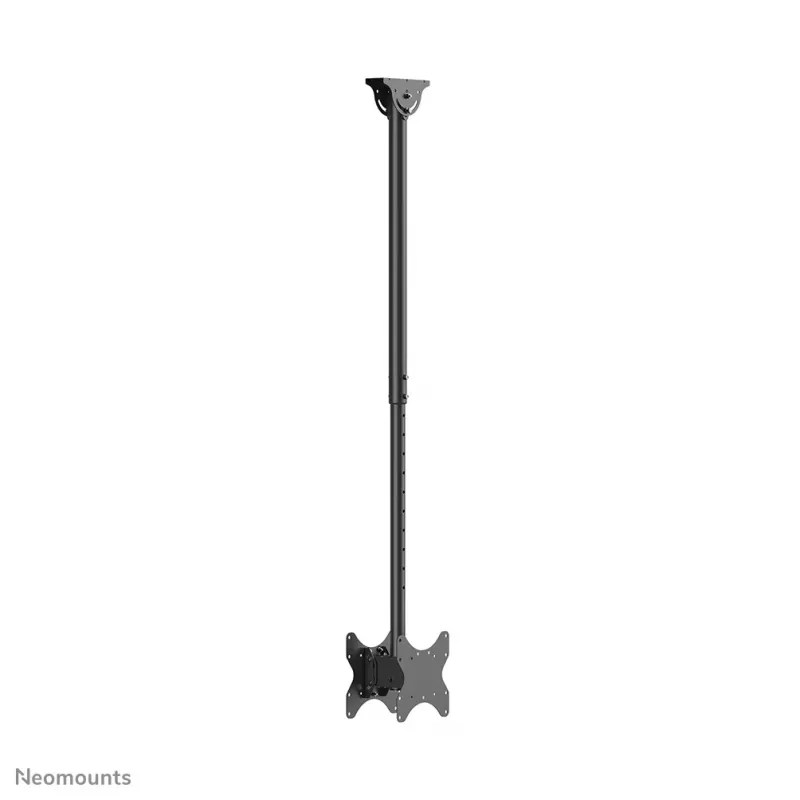

The Neomounts CL35-340BL22 is a full-motion ceiling mount for two flat screens from 23" up to 42" with a maximum load capacity of 45 kg. It supports VESA patterns from 100 x 100 mm to 200 x 200 mm and includes an integrated cable management system. Height is adjustable between 1060 and 1560 mm; an optional extension pole (Neomounts NS-EP100BLACK) can add 1075 mm to the total height when required.

Advantages

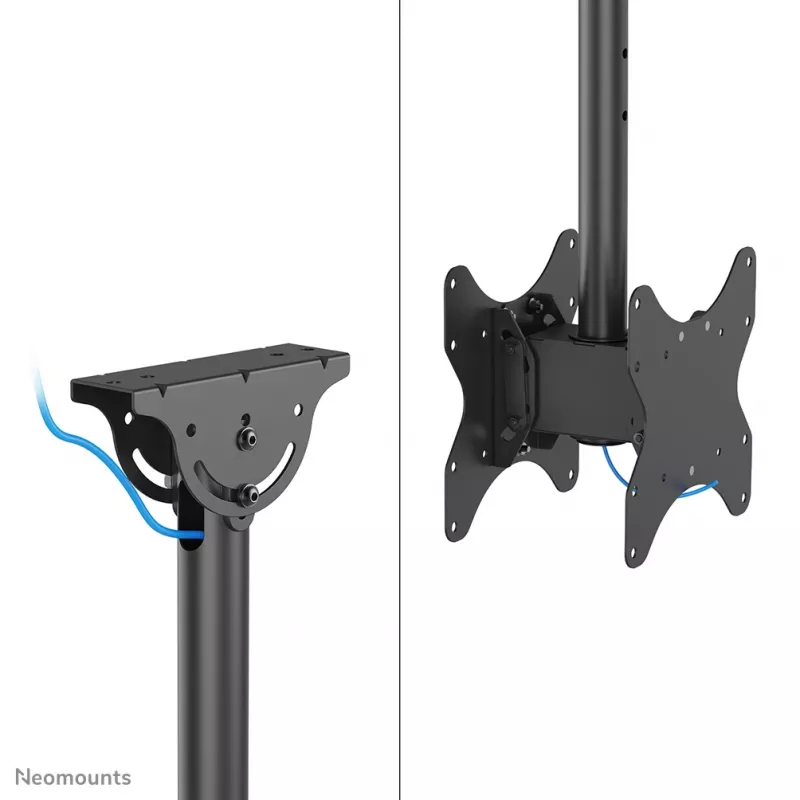

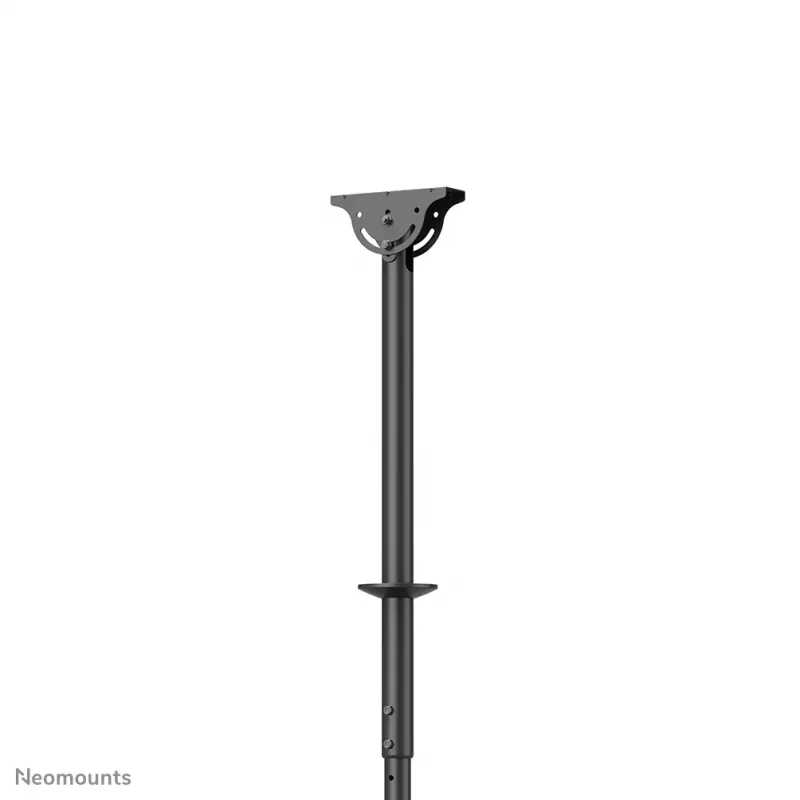

The mount offers a wide swivel range (360°) and a pronounced tilt function (up to 25°) to achieve optimal viewing angles. It features level adjustment for precise alignment during installation, supports dual displays, and has a practical cover for suspended ceilings. Cable routing from the ceiling to the screens keeps installations neat and reduces visible wiring.

Suitable for

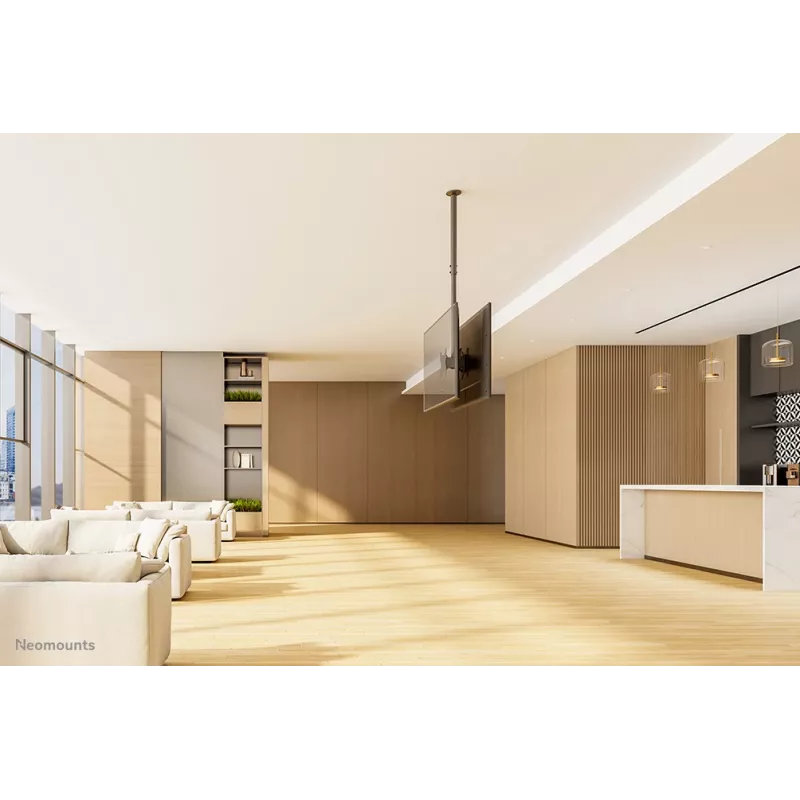

• Mounting two TVs or displays in meeting rooms and classrooms

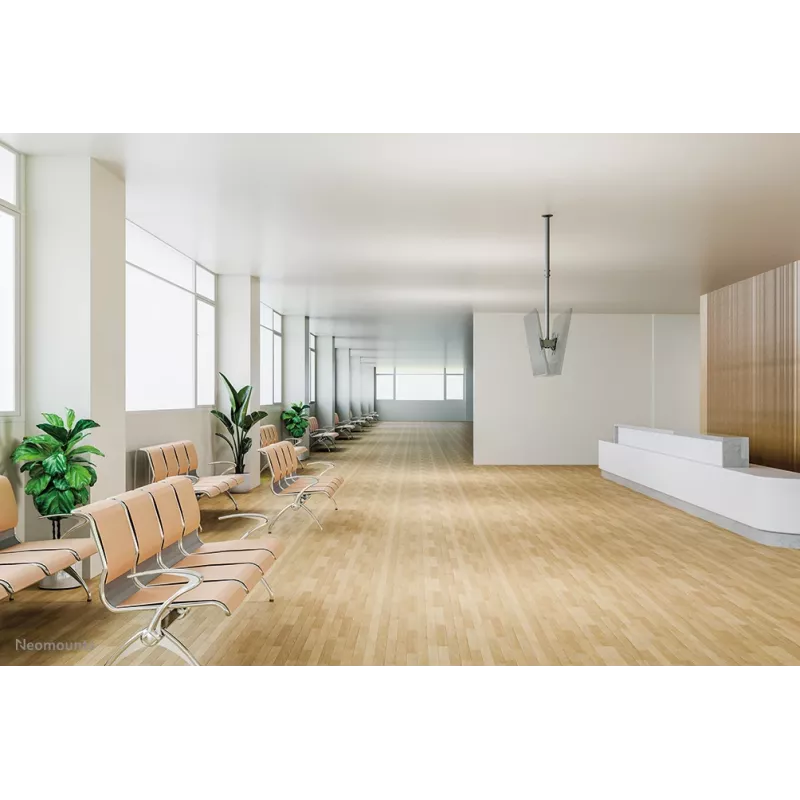

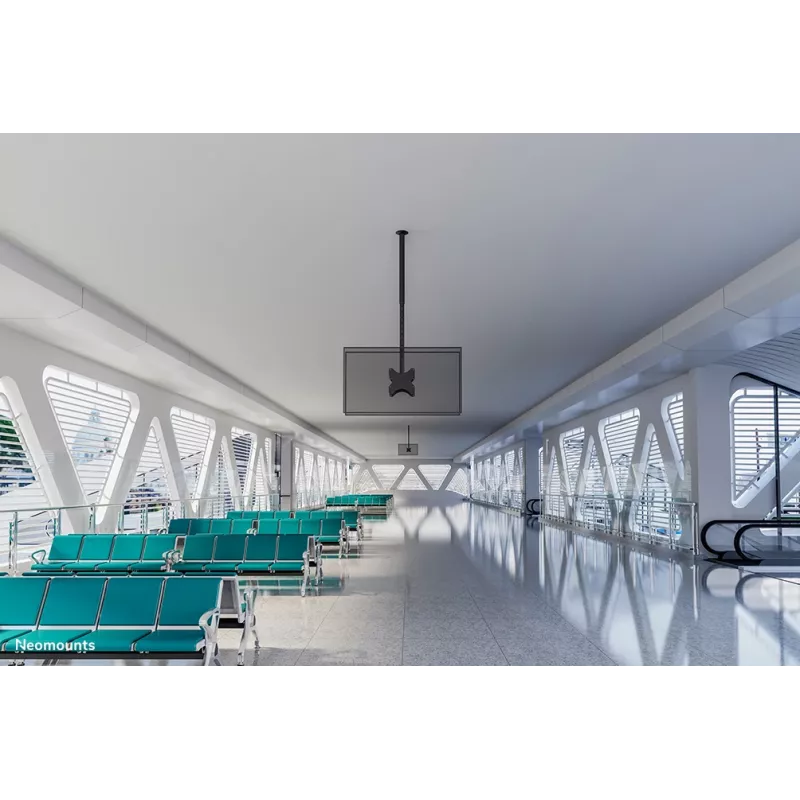

• Digital signage installations in stores or public spaces
• Home theater setups requiring ceiling installation

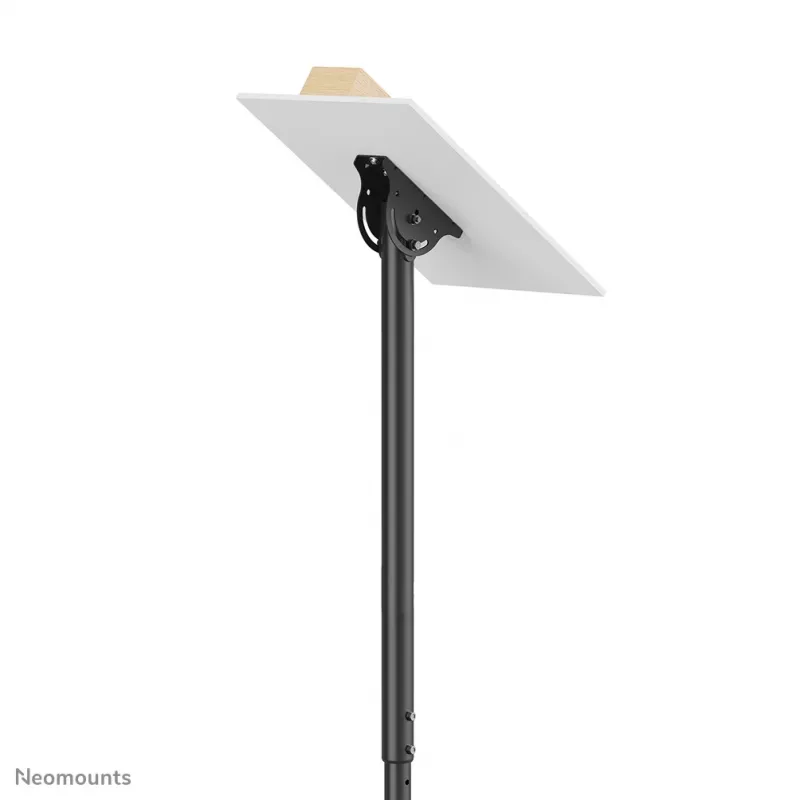

• Environments with sloped or suspended ceilings

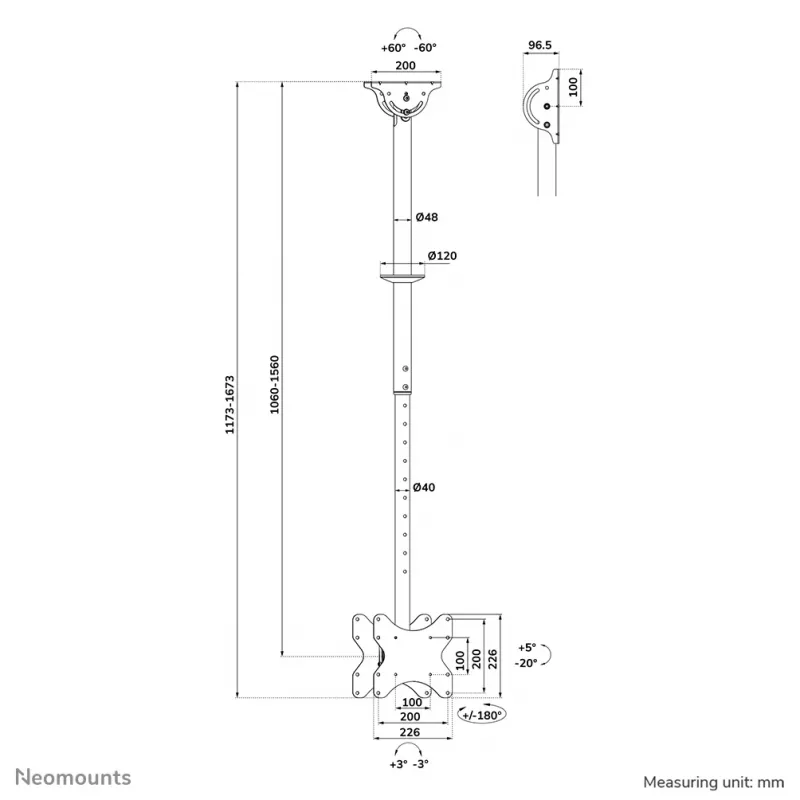

Key specifications

• Supported screen size: 23"–42"
• Maximum weight capacity: 45 kg

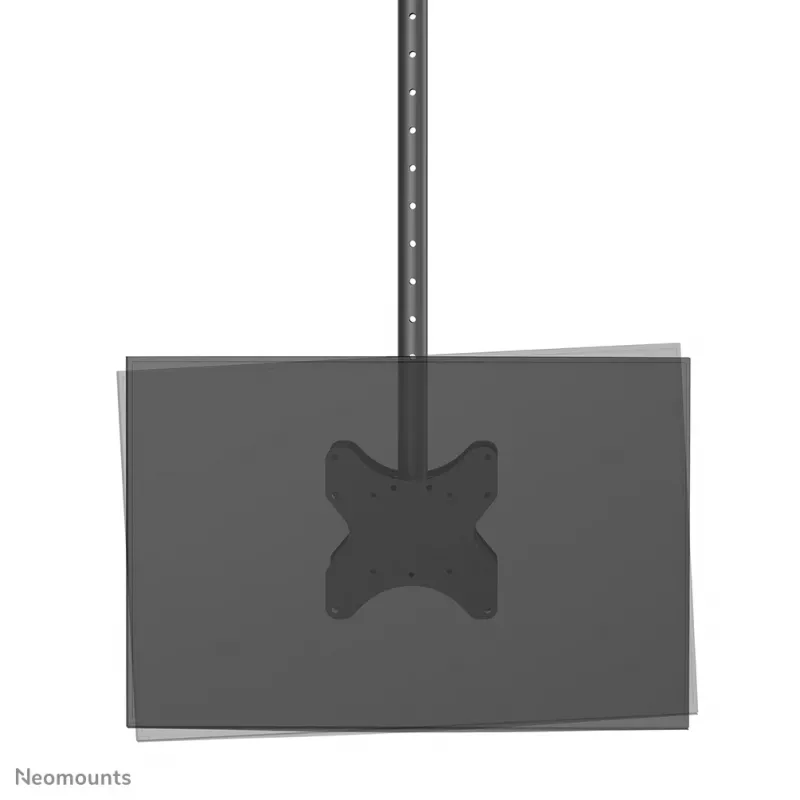

• VESA compatibility: 100 x 100 mm to 200 x 200 mm

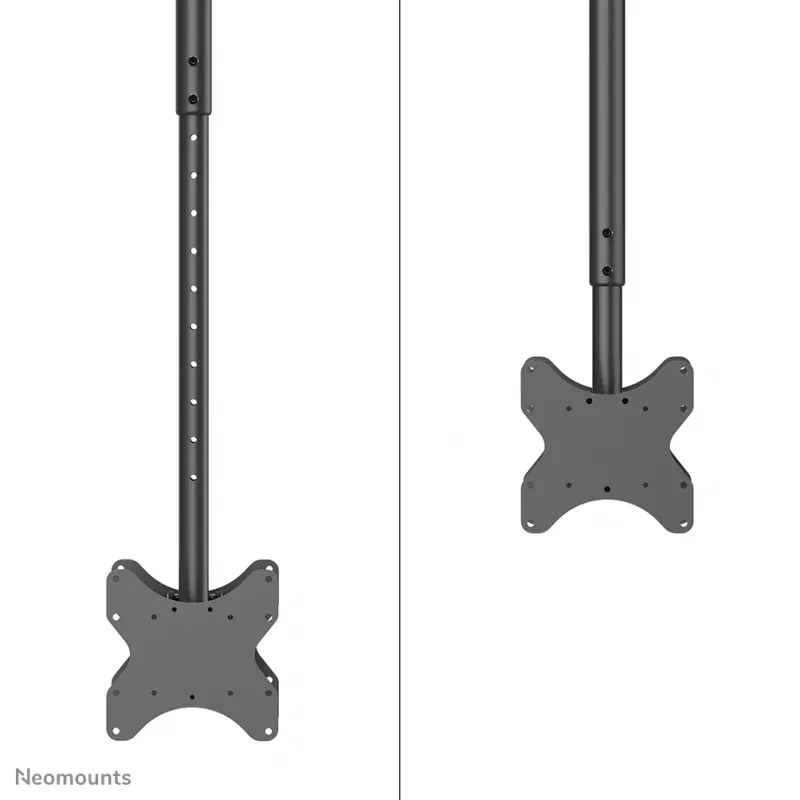

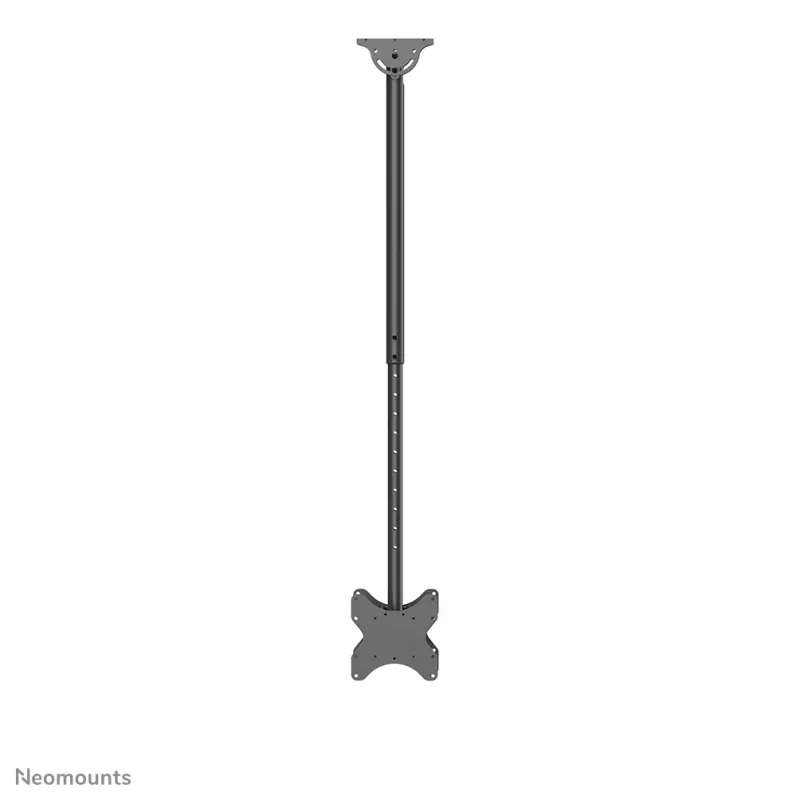

• Height adjustment: 1060–1560 mm (optional extension +1075 mm)

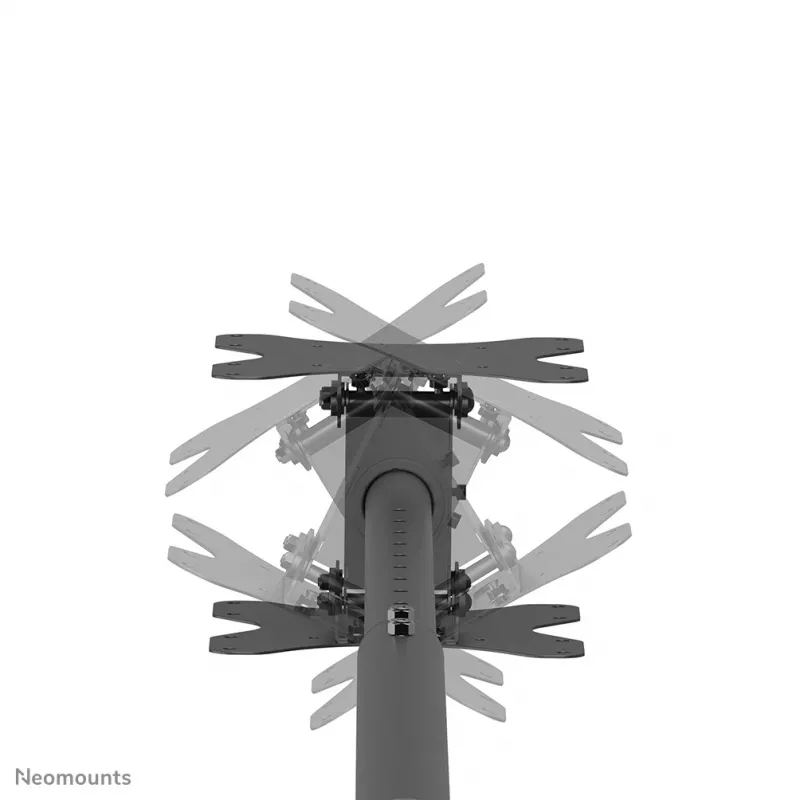

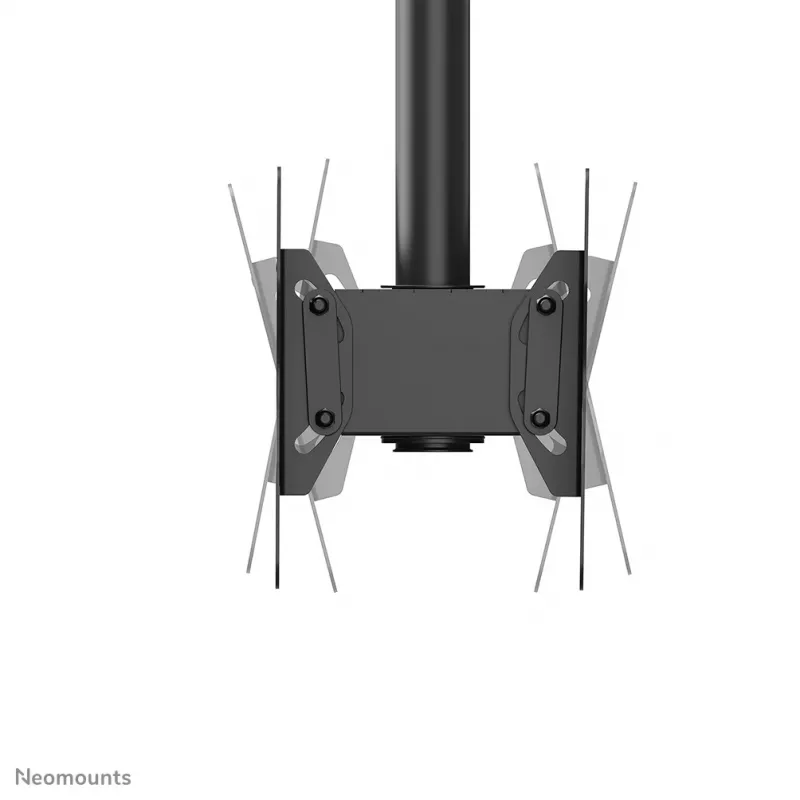

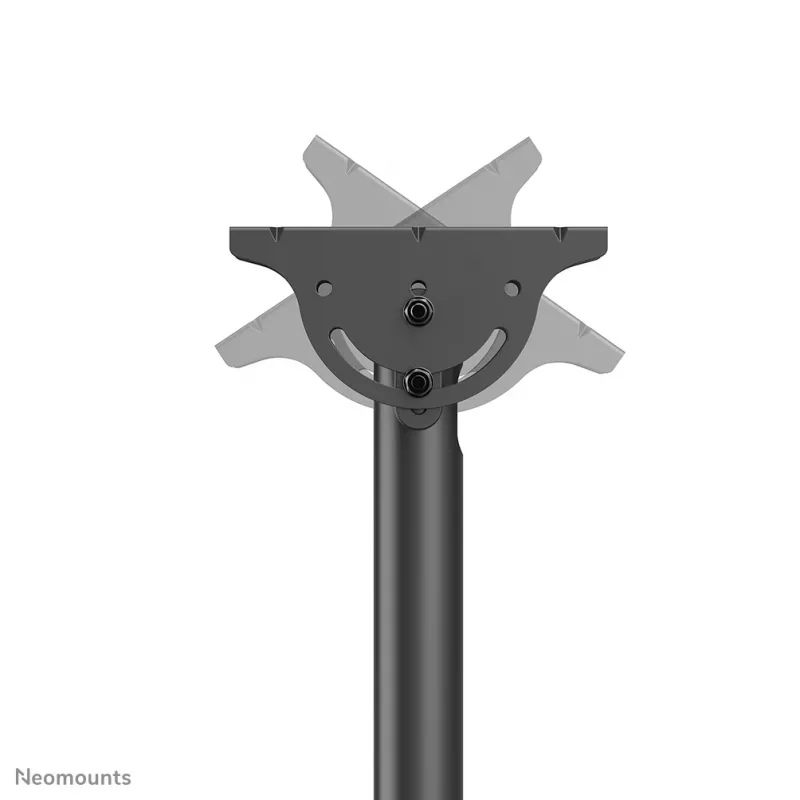

• Tilt: approximately -20° to +5° (manufacturer range shown)
• Swivel: -180° to +180° (full 360° rotation)
• Color: Black
• Number of displays supported: 2

How to use

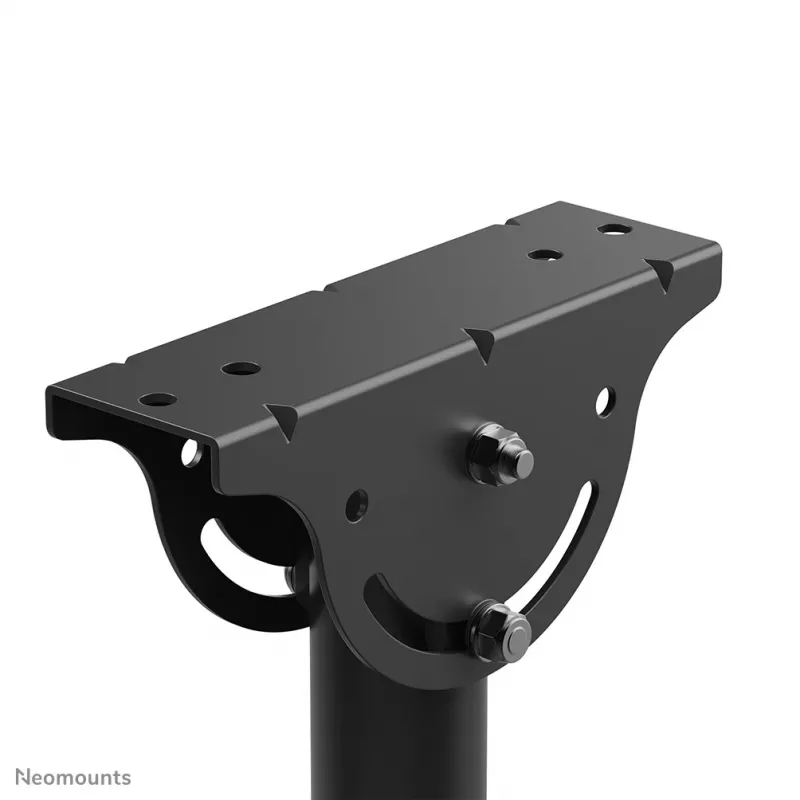

Attach the mounting brackets to compatible displays following the VESA pattern indicated on the screens. Secure the ceiling plate to a suitable ceiling structure able to support the combined weight, then connect the pole and adjust the height between 1060 and 1560 mm. Mount the displays to the arms, use the built-in level adjustment to align the screens, and set the required tilt and swivel angles for optimal viewing. Route cables through the integrated cable management channel and close the covers provided. If additional height is required, install the Neomounts NS-EP100BLACK extension pole as specified by the manufacturer.

Recommendations

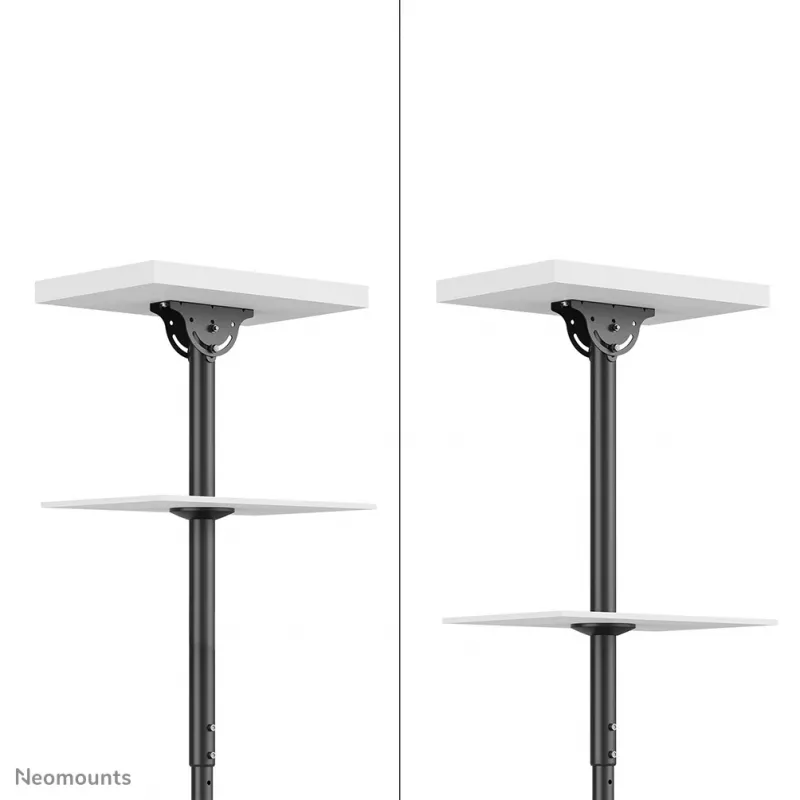

Verify that the ceiling structure and mounting location can safely support the combined weight of the mount and displays (maximum 45 kg). Use appropriate fixings for the ceiling material and follow all safety and installation instructions supplied by Neomounts. For suspended or sloped ceilings, use the supplied cover and angle adjustment features; consider professional installation if unsure.
