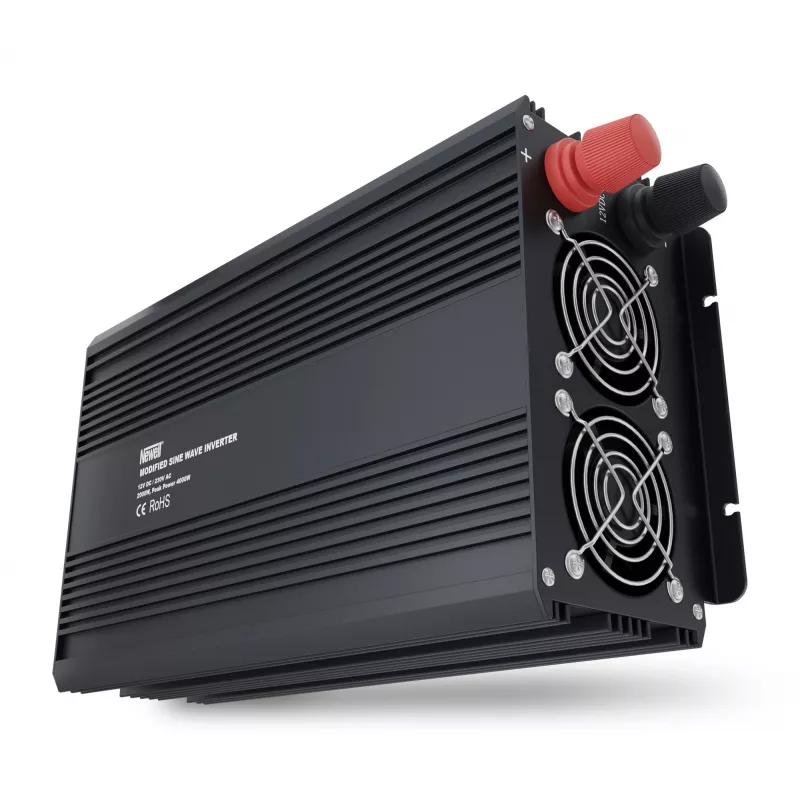

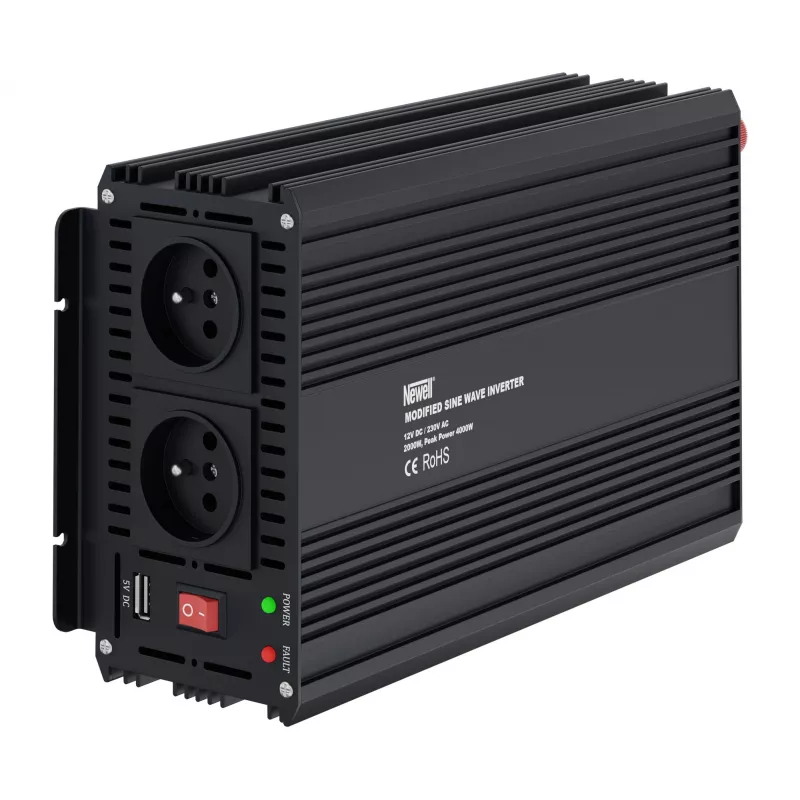

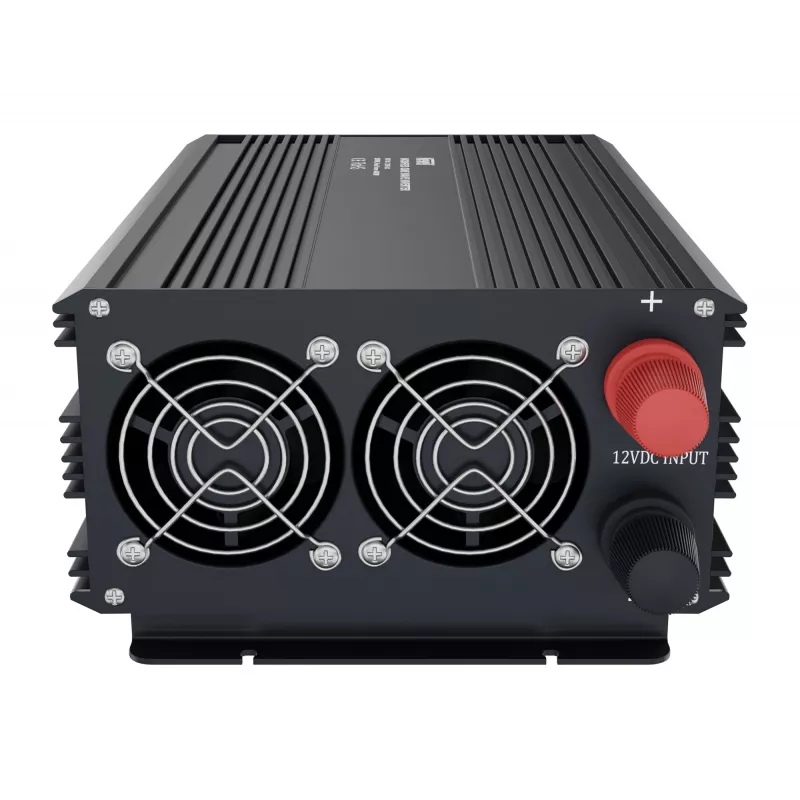

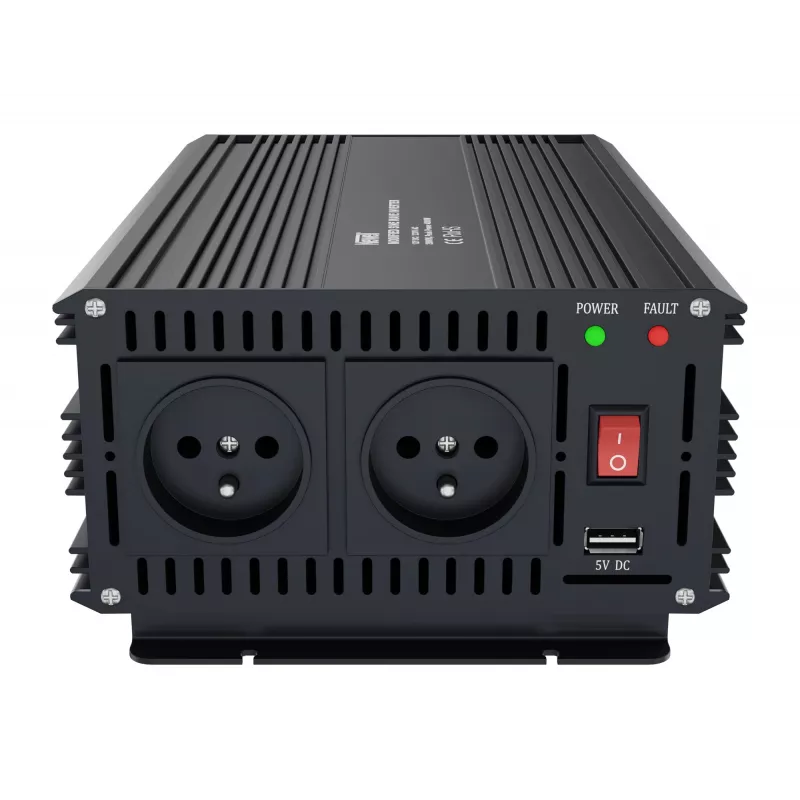

Newell tehonmuunnin muunnetulla siniaallolla 12V/230V 2000W

The Newell Modified Sine Wave Power Inverter converts 12V DC battery power into 230V AC, providing a reliable power source for your electronic devices. With a continuous output of 2000W and a peak surge of 4000W, it is ideal for use in vehicles, boats, caravans, and off-grid systems. The modified sine wave output is compatible with most household appliances and power tools.

Advantages

High efficiency of over 85% ensures minimal power loss. Multiple protection features including overload, over-temperature, low voltage, high voltage, short circuit, and reverse polarity safeguard your devices and the inverter. Intelligent cooling fan adjusts speed based on temperature for quiet operation. Compact aluminum alloy casing is durable and lightweight.

Suitable for

• Caravans, motorhomes, and boats
• Off-grid solar systems
• Emergency backup power
• Powering tools and appliances on job sites

Key specifications

• Continuous output power: 2000W
• Peak surge power: 4000W
• Input voltage: 12V DC
• Output voltage: 230V AC
• Output waveform: Modified sine wave
• Output frequency: 50Hz
• Efficiency: >85%
• Low voltage alarm: 10.5V DC ±0.5V
• Low voltage shutdown: 10V DC ±0.5V
• Over voltage shutdown: 15.5V DC ±0.5V
• Protection: Overload, over-temperature, low voltage, high voltage, short circuit, reverse polarity
• Cooling: Intelligent fan
• AC output: 1x universal outlet
• DC input: Battery terminals (screw type)
• Casing: Aluminum alloy
• LED indicators: Power, fault
• Operating temperature: -10°C to 50°C

Recommendations

For optimal performance, use with a deep-cycle battery and ensure proper ventilation. The inverter is not suitable for sensitive electronics such as medical equipment or devices with pure sine wave requirements.
