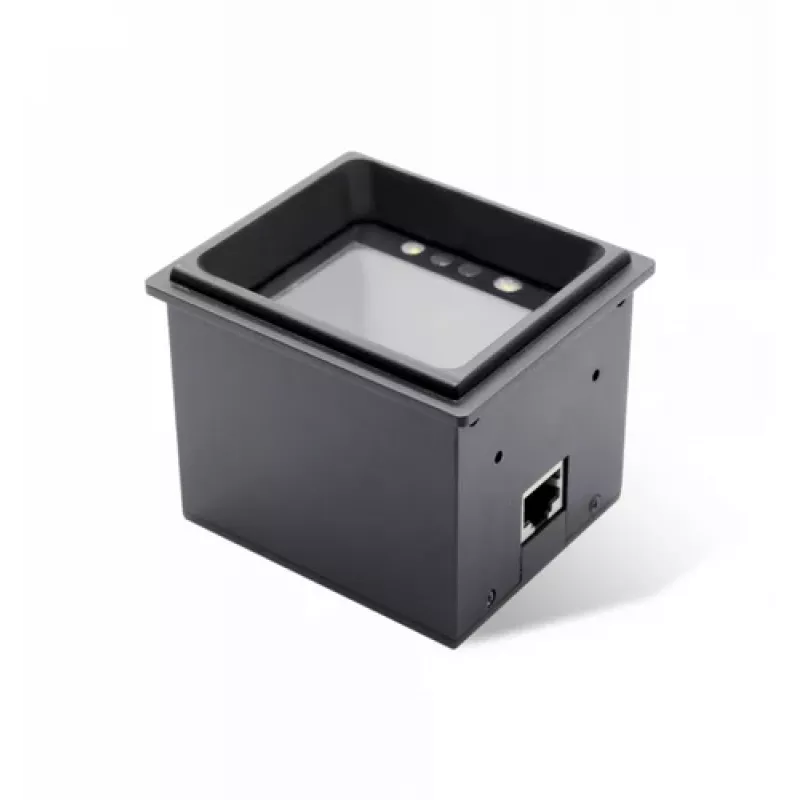

Newland 2D CMOS kiinteäasenteinen lukulaite

In high-speed production lines and kiosk environments, a missed scan can halt operations and frustrate customers. The Newland NLS-FM3051-28 eliminates this risk with a fixed-mount 2D CMOS imager that captures barcodes instantly, even when they are damaged, poorly printed, or displayed on a screen. Its compact, rugged design integrates seamlessly into any automated system, delivering reliable performance without constant adjustments.

Who is it for

This scanner is built for system integrators, kiosk manufacturers, and logistics engineers who need a dependable embedded scanning solution. It suits self-service terminals, access control gates, ticket validation machines, and assembly line tracking. If your application requires hands-free, high-volume barcode reading with minimal maintenance, the NLS-FM3051-28 is the right choice.

Main features

• High-resolution 1280 x 800 CMOS sensor for sharp, fast captures
• Reads all common 1D and 2D barcodes, including QR, Data Matrix, PDF417, and Aztec
• Wide field of view (42° horizontal, 28° vertical) for flexible positioning
• Multiple scan modes: automatic sense, command trigger, and presentation
• White LED illumination and red laser aiming dot for precise targeting
• Durable IP54-rated housing withstands dust and water splashes
• Drop resistance up to 1.2 m to concrete for industrial reliability
• Dual interface: USB (HID-KBW or Virtual COM) and RS232 for easy integration

Specifications

• Scan engine: 2D CMOS imager
• Sensor resolution: 1280 x 800 pixels
• Decoding capability: 1D and 2D symbologies
• Connectivity: USB, RS232
• Mounting type: Fixed mount
• Illumination: White LED
• Aiming: Red LED dot
• Minimum print contrast: 20%
• Input voltage: DC 5V
• Operating current: 200 mA; standby 80 mA
• Operating temperature: -20°C to 50°C
• Storage temperature: -40°C to 70°C
• Humidity: 5% to 95% non-condensing
• IP rating: IP54
• Drop resistance: 1.2 m to concrete
• Certifications: CE, FCC, RoHS, KC, VCCI, RCM

Tips

For optimal performance, mount the scanner at a 10–15° angle to avoid direct reflections from glossy surfaces. Use the command trigger mode in conveyor applications to synchronize scanning with product movement. Regularly clean the scanner window with a soft, lint-free cloth to maintain read accuracy in dusty environments.
