Niedax U-pultti puristin BW 50 - teräs, elektrolyyttisesti sinkitty, 50 mm

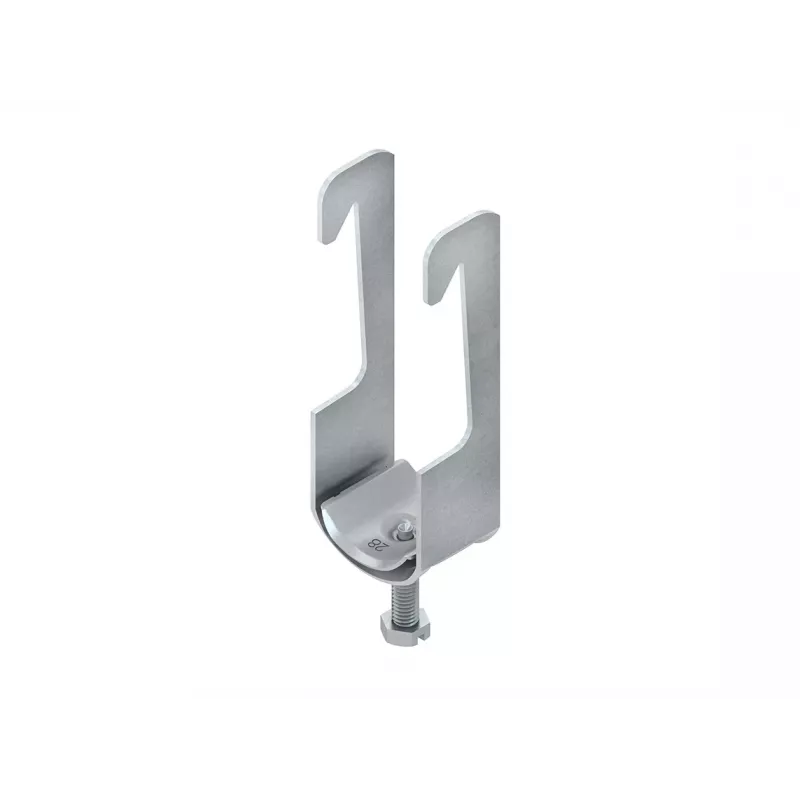

The Niedax BW 50 U-Bolt Clamp (Bügelschelle) is a robust and reliable fastening solution designed for securing pipes, conduits, cables, and other cylindrical objects. Manufactured from high-quality steel with an electro-galvanized finish, this clamp offers moderate corrosion protection, making it suitable for indoor and protected outdoor applications. With a nominal diameter of 50 mm and M8 thread, it provides a secure hold for various installations. The clamp includes two nuts and is easy to mount using standard tools. Ideal for electrical, plumbing, and HVAC systems, the BW 50 ensures long-lasting performance in demanding environments.

Advantages

Durable steel construction with electro-galvanized surface for corrosion resistance. Easy screw-on mounting with included nuts. Versatile use for pipes, conduits, and cables. Complies with similar standards to DIN 3570. Suitable for a wide temperature range from -30°C to +100°C.

Suitable for

• Fastening pipes and conduits in electrical installations
• Securing cables in industrial and commercial settings
• Mounting cylindrical objects in HVAC and plumbing systems
• Indoor and protected outdoor areas requiring moderate corrosion protection

Key specifications

• Product Type: U-Bolt Clamp
• Nominal Diameter: 50 mm
• Thread Size: M8
• Material: Steel
• Surface Treatment: Electro-galvanized
• Number of Nuts Included: 2
• Rod Diameter: 8 mm
• Leg Spacing (center-to-center): Approx. 60 mm
• Leg Length (threaded part): Approx. 50 mm
• Overall Height: Approx. 75 mm
• Colour: Metallic silver
• Temperature Range: -30°C to +100°C
• Standard Compliance: Similar to DIN 3570

Recommendations

For optimal performance, ensure the clamp is properly tightened to the recommended torque. Use with compatible nuts and washers for secure fastening. Suitable for use with pipes and conduits of 50 mm outer diameter.
