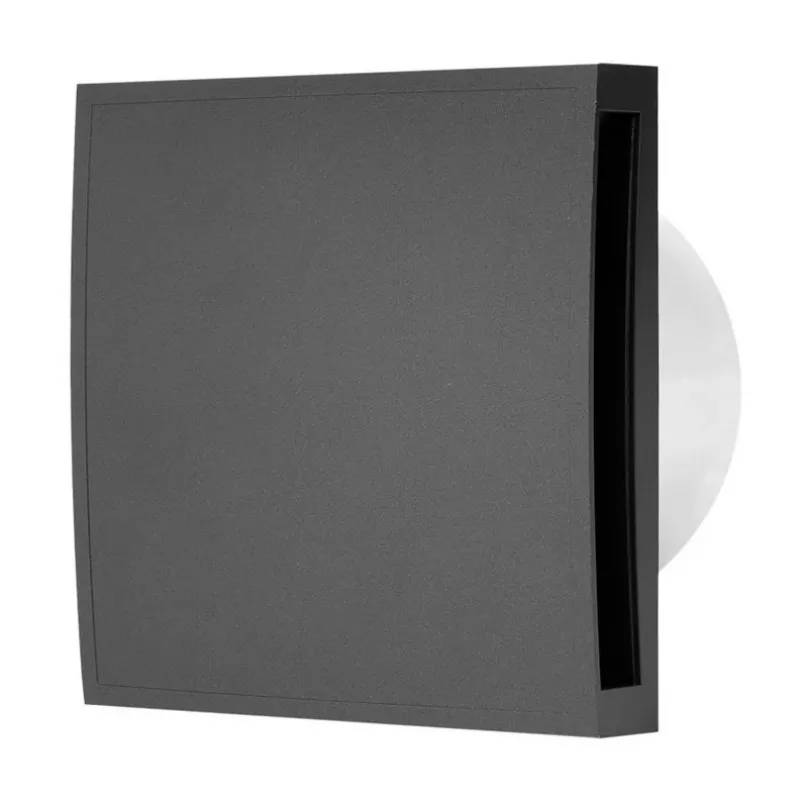

E-extra DN100 EET100A antrasiitti aksiaalituuletin 100 mm

Stale air and excess moisture in bathrooms, kitchens, and utility rooms can lead to mould, unpleasant odours, and structural damage. The E-extra DN100 EET100A Anthracite axial fan tackles these issues head-on with a powerful yet quiet 98 m³/h airflow, ensuring continuous fresh air circulation in spaces up to moderate size. Its sleek anthracite ABS housing blends seamlessly with modern interiors, while the integrated non-return damper prevents cold draughts and backflow when the fan is off.

Who is it for

This fan suits homeowners, landlords, and contractors seeking a reliable ventilation solution for bathrooms, toilets, kitchens, or utility rooms. It is ideal for both new installations and retrofits where a 100 mm duct is available. The wall or ceiling mount design offers flexibility, and the ball-bearing motor ensures long service life even in humid environments.

Main features

• Axial fan with 100 mm duct diameter for standard ventilation ducts
• Airflow capacity of 98 m³/h – efficient moisture and odour extraction
• Low noise level of just 34 dB(A) – quiet operation for comfort
• Integrated non-return damper prevents backflow and heat loss
• Durable ABS plastic housing in anthracite colour – corrosion-resistant and easy to clean
• Ball-bearing motor for extended lifespan and reliable performance
• IP34 rating – protected against splashing water, suitable for bathroom zones
• Class II insulation – no earth wire required
• Operates on 220-240 V, 50 Hz with low power consumption of 14 W
• External switch control (not included) – simple on/off operation
• Mounting in vertical or horizontal position – wall or ceiling
• Front panel dimensions: 150 x 150 mm – compact and unobtrusive

Specifications

• Fan type: Axial
• Duct diameter: 100 mm
• Airflow capacity: 98 m³/h
• Power consumption: 14 W
• Current: 0.085 A
• Voltage: 220-240 V
• Frequency: 50 Hz
• Noise level: 34 dB(A)
• IP rating: IP34
• Protection class: Class II
• Material: High-quality ABS plastic
• Colour: Anthracite
• Installation type: Wall or ceiling mounted
• Motor type: Ball bearing
• Backdraft damper: Integrated non-return damper
• Operating temperature range: +1°C to +40°C
• Control: External switch (not included)
• Mounting position: Vertical or horizontal
• Front panel dimensions: 150 x 150 mm

Tips

For optimal performance, install the fan as high as possible on the wall or ceiling, away from the door, to create effective cross-ventilation. Ensure the duct is clean and free of obstructions. The fan should be switched on during and after showering or cooking for at least 15-20 minutes to remove residual moisture. Regular cleaning of the front grille with a soft brush or vacuum cleaner will maintain airflow and reduce noise over time.
