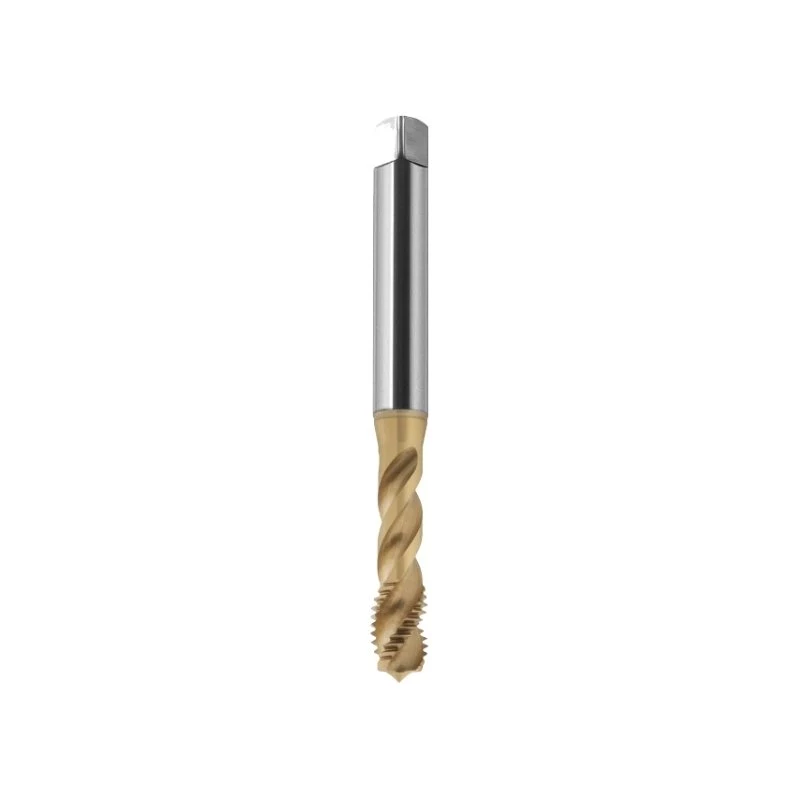

Konekierretappi M10x1 DIN 371 C R40 6H HSSE TiN 800X

This precision machine tap with spiral point geometry excels at threading through holes in tough materials. The M10x1 fine metric thread with 6H tolerance class ensures accurate and reliable threads, while the TiN coating and cobalt-enriched HSSE steel provide exceptional wear resistance and extended tool life. Ideal for high-volume production in steel, stainless steel, cast iron, and non-ferrous metals.

Advantages

The spiral point design pushes chips forward, preventing clogging and reducing torque, making it perfect for through-hole applications. The reinforced shank increases rigidity, reducing deflection and improving thread quality. TiN coating lowers friction, allowing higher cutting speeds and reducing galling, especially in stainless steel. Cobalt alloyed steel maintains hardness at elevated temperatures, ensuring consistent performance even in demanding conditions.

Suitable for

• Through holes in steel and stainless steel components
• Cast iron and non-ferrous metal workpieces
• High-speed CNC machining and manual tapping
• Production environments requiring long tool life and precision

Key specifications

• Thread size: M10 x 1 mm (metric fine)
• Standard: DIN 371, chamfer form C (2-3 threads)
• Tolerance class: 6H
• Material: HSSE-Co (cobalt high-speed steel)
• Coating: TiN (titanium nitride)

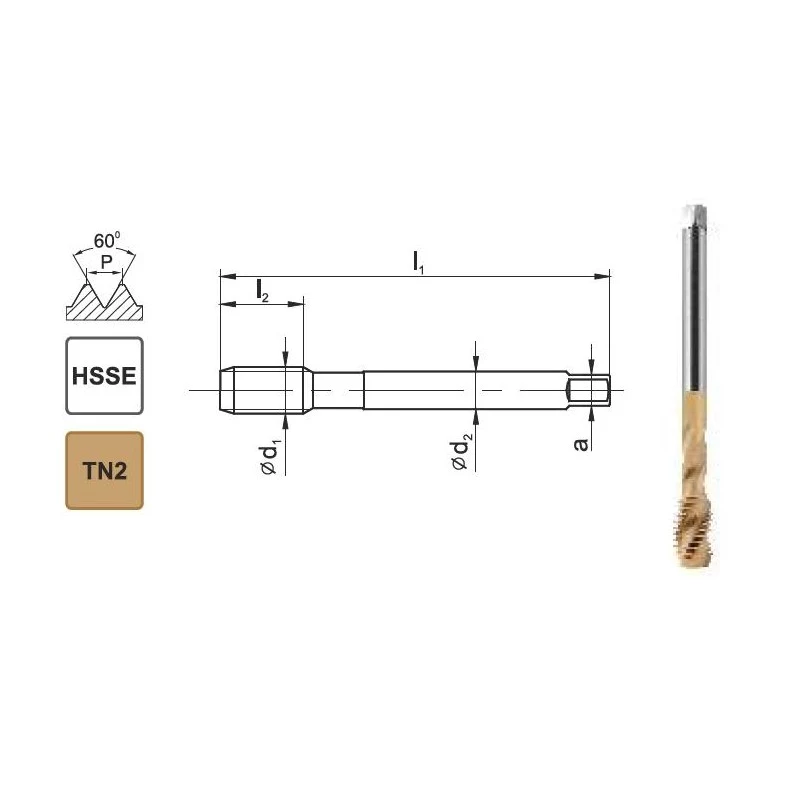

• Overall length: 100 mm, shank diameter: 7 mm, square drive: 5.5 mm
• Cutting direction: right-hand

Recommendations

Use with a suitable tapping fluid to maximize tool life and thread quality. For best results, ensure proper alignment and use a tapping collet or holder with axial compensation. Recommended cutting speed: 10-15 m/min in steel, 5-10 m/min in stainless steel.
