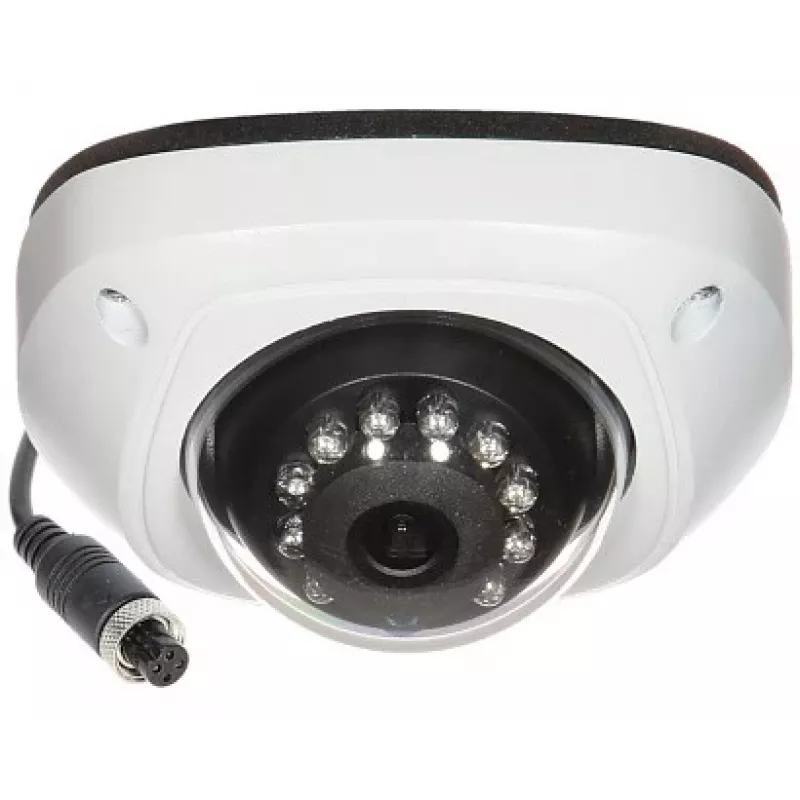

Mobiilikamera PAL ATE-CAM-CVBS925 - 960H 2,8 mm

For installations that demand a compact, weatherproof analog camera without compromising on image clarity, the ATE-CAM-CVBS925 delivers dependable 960H resolution in a rugged metal housing. Its 2.8 mm fixed lens and 120° diagonal field of view make it ideal for monitoring tight indoor spaces, entryways, or sheltered outdoor areas where a discreet yet effective camera is required.

Highlights

• 960H analog resolution (976 x 582 effective pixels) for sharp, detailed video over standard CVBS connections
• 1/3" CMOS sensor with 0.1 Lux minimum illumination for clear images in low light
• IP67-rated metal alloy body withstands dust, rain, and temperature extremes from -20°C to +70°C
• Fixed 2.8 mm lens with approximately 120° diagonal viewing angle covers wide areas with minimal blind spots
• Simple 12 V DC power and RCA video output integrate easily with existing DVR systems

In daily use

Mount the camera on the included bracket, connect the RCA video cable and 12 V power supply, and you are ready to record. Automatic white balance and backlight compensation adjust to changing light conditions, while the electronic shutter from 1/50 to 1/100,000 second prevents motion blur. With a current draw of only 100 mA, it runs cool and efficiently, even in continuous operation.

Full specifications

• Video system: PAL
• Image sensor: 1/3" CMOS
• Effective pixels: 976 (H) x 582 (V)
• Lens: 2.8 mm fixed
• Viewing angle (diagonal): approx. 120°
• Video output: CVBS (1.0 Vp-p, 75 Ω)
• Minimum illumination: 0.1 Lux @ F1.2 (AGC on)
• Signal-to-noise ratio: >48 dB
• Electronic shutter speed: 1/50 ~ 1/100,000 sec
• White balance: Auto
• Backlight compensation: Auto
• Power supply: DC 12 V
• Current consumption: max 100 mA
• Operating temperature: -20°C to +70°C
• Ingress protection: IP67
• Housing material: Metal alloy
• Connector type: RCA (standard CVBS)
• Mounting type: Bracket mount
• Colour output: Colour

Final note

The ATE-CAM-CVBS925 is a straightforward, no-frills analog camera that focuses on reliability and image quality. Its IP67 rating and wide temperature tolerance make it a solid choice for both indoor and protected outdoor surveillance.
