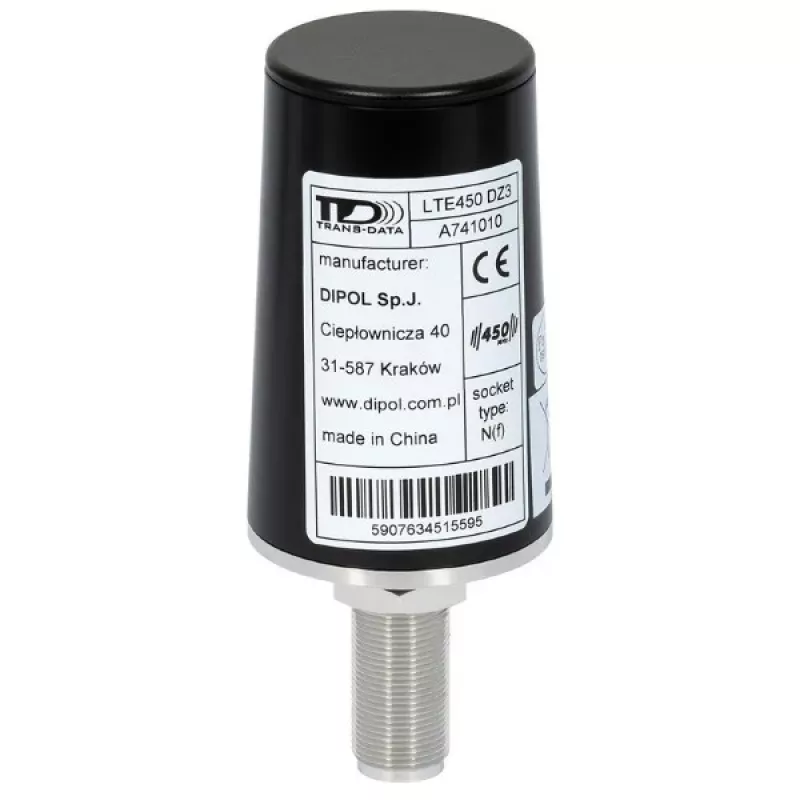

Omni-antenni ATK-DZ3/LTE450 Trans-Data

Reliable LTE450 connectivity in remote or industrial environments demands an antenna that can withstand harsh weather while delivering consistent signal coverage. The Omni Antenna ATK-DZ3/LTE450 Trans-Data solves this challenge with a rugged, omnidirectional design tailored for the 450 MHz band, ensuring stable links for IoT, M2M, and telemetry applications.

Who is it for

System integrators, network operators, and industrial users deploying LTE450 networks for smart metering, SCADA, fleet management, or rural broadband will find this antenna indispensable. Its outdoor-rated construction and high wind resistance make it suitable for mast or pole mounting in exposed locations.

Main features

• Omnidirectional radiation pattern with 360° horizontal beamwidth for uniform coverage
• Optimized for 450–470 MHz frequency range, ideal for LTE450 band
• 3 dBi gain with vertical polarization for efficient signal transmission
• Robust UV-resistant ABS and aluminum build with IP67 ingress protection
• DC-grounded design for lightning protection and static dissipation
• Supports up to 50 W input power, compatible with high-power transmitters
• Includes U-bolt mounting kit for easy installation on masts or poles

Specifications

• Frequency range: 450–470 MHz
• Gain: 3 dBi
• Polarization: Vertical
• Impedance: 50 Ohm
• VSWR: < 2.0
• Connector: N-Female
• Max input power: 50 W
• Horizontal beamwidth: 360°
• Vertical beamwidth: ~60°
• Operating temperature: -40°C to +70°C
• Wind load resistance: up to 150 km/h
• Ingress protection: IP67
• Material: UV-resistant ABS plastic, aluminum
• DC grounded: Yes
• Cable included: No
• Mounting type: Mast/Pole Mount (U-bolt included)

Tips

For optimal performance, mount the antenna as high as possible with a clear line of sight to the base station. Ensure the mounting bracket is securely fastened to withstand high winds, and use a low-loss coaxial cable with N-Male connector to connect to your radio equipment. Periodically inspect the antenna for physical damage or corrosion, especially after severe weather.
