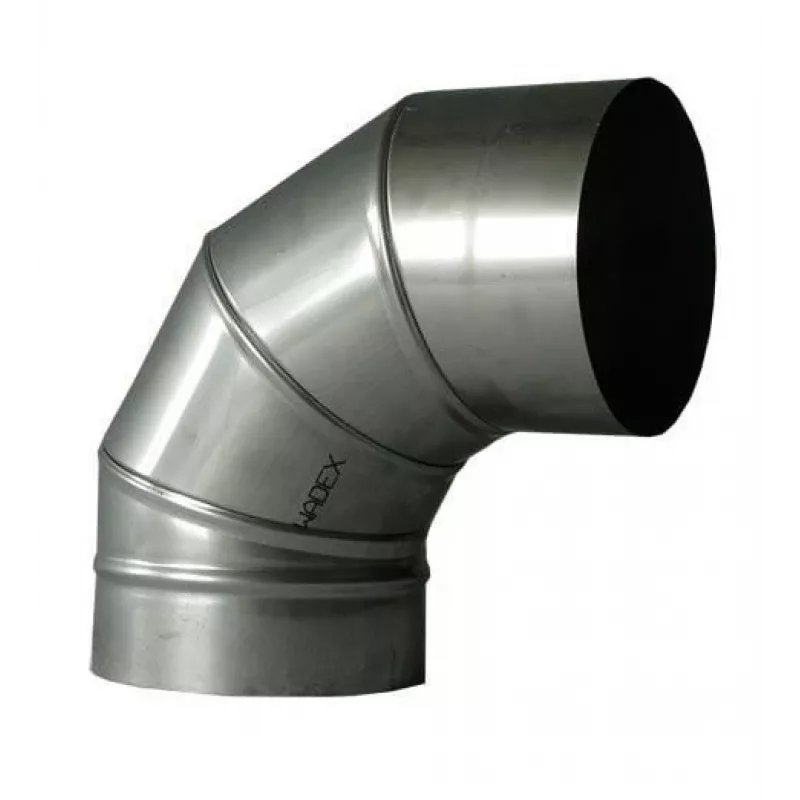

Savupiippukulma 90° 180 mm säädettävä teräsliitin savuputkelle

With a temperature resistance of up to 600°C, this 90° chimney elbow is built for high-performance solid fuel exhaust systems. Its 180 mm nominal diameter and adjustable segmented design allow precise routing in tight installations, making it an essential component for wood, coal, and pellet heating setups.

Overview

This chimney flue elbow is a crucial component for connecting flue pipes in solid fuel heating systems. Its 90° angle allows for directional changes in the flue run, while the adjustable segmented construction enables fine-tuning of the bend to match your installation layout. The spigot and socket connection ensures a secure, push-fit assembly with other modular flue components.

What stands out

• Adjustable segmented design for flexible installation angles
• Durable DC01 steel with high-temperature matte black coating
• 2.0 mm wall thickness for structural integrity
• CE certified and compliant with EN 1856-2
• Corrosion-resistant finish for long service life

Technical details

• Product type: Chimney flue elbow
• Angle: 90°
• Nominal diameter: 180 mm
• Material: Steel (DC01)
• Colour: Black
• Finish: Matte black, high-temperature painted
• Adjustability: Adjustable (segmented design)
• Wall thickness: 2.0 mm
• Temperature resistance: Up to 600°C
• Connection type: Spigot and socket (male/female)
• Application: Connecting flue pipes for solid fuel appliances
• Fuel compatibility: Wood, coal, pellets
• Compliance: CE certified, EN 1856-2
• Corrosion resistance: Yes
• Installation: Push-fit, modular system
• Number of segments: 2

Our verdict

A robust and versatile elbow that delivers reliable performance in demanding flue gas conditions, with the flexibility to adapt to complex installations.
