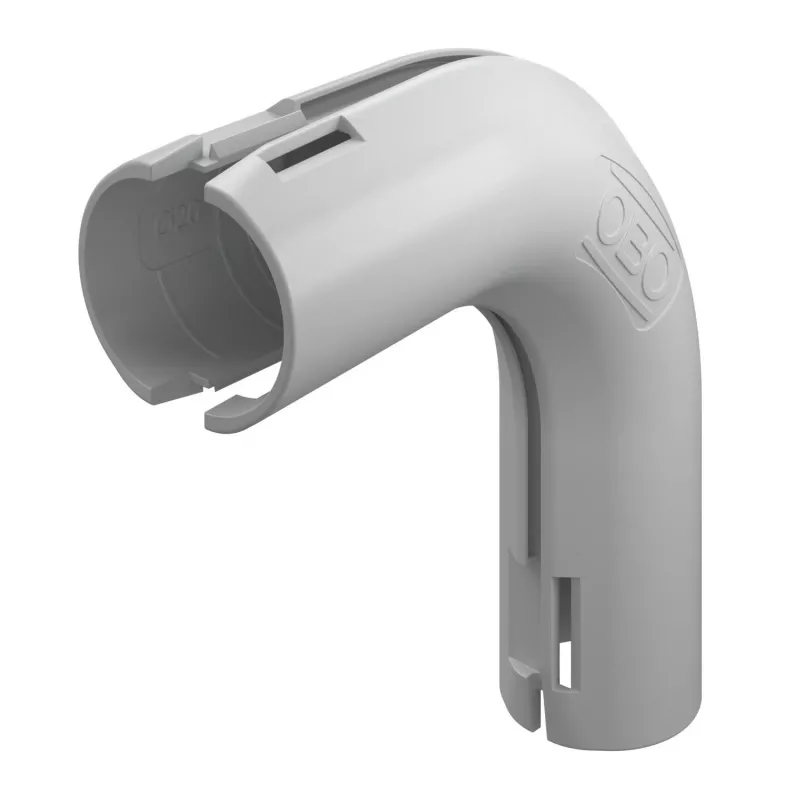

OBO BETTERMANN BETTERMANN 3000 BMS M20 LGR Quick-Pipe 90° mutka (2154054)

Electricians and installers working on surface-mounted electrical installations can use the OBO BETTERMANN BETTERMANN 3000 BMS M20 LGR Quick-Pipe-Bogen 90° to create a clean 90-degree bend in the Quick-Pipe conduit system. This bend is designed for fast clip-on mounting, reducing installation time without compromising on a secure fit.

Key specifications

• Product type: Conduit Bend
• Bend angle: 90°
• Nominal diameter: M20
• System compatibility: OBO Bettermann Quick-Pipe System
• Material: Polycarbonate (PC) / Acrylonitrile Butadiene Styrene (ABS) blend
• Colour: Light Grey (RAL 7035)
• Halogen-free: Yes
• UV-resistant: Yes
• Temperature range: -25 °C to +60 °C
• Impact resistance: IK08
• Installation type: Clip-on / Quick-mounting
• Application: Surface-mounted electrical installations
• Fire behavior: Flame-retardant, self-extinguishing

Why choose it

The Quick-Pipe-Bogen 90° speeds up conduit routing by eliminating the need for complex bending tools. Its robust PC/ABS blend withstands impacts and UV exposure, making it suitable for long-term installations in varied environments. The halogen-free construction adds a safety advantage in case of fire.

Ideal use cases

• Routing cables around corners in surface-mounted conduit runs
• Commercial and residential electrical installations
• Areas requiring UV-stable and impact-resistant components

Good to know

The bend is part of the BETTERMANN 3000 BMS series and is compatible with other Quick-Pipe components of the same nominal diameter. Its light grey colour (RAL 7035) blends with standard installation aesthetics.
