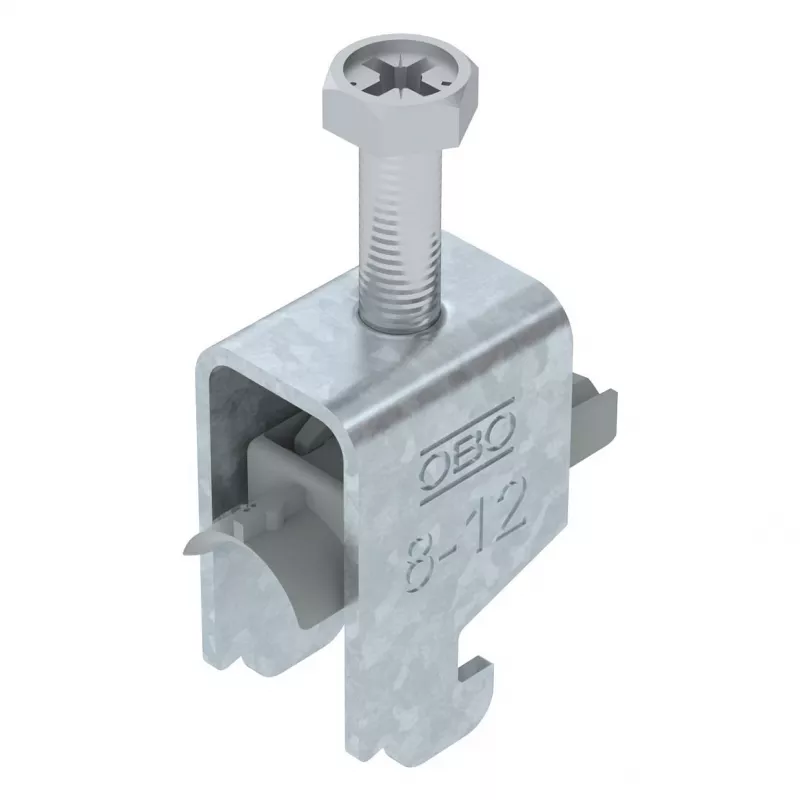

OBO BETTERMANN BS-N1-K-12 FT U-pultti kiristin, kuumasinkitty, 8-12 mm, M6 kierre

This U-bolt clamp from the BS-N1-K series provides a robust, corrosion-resistant fastening solution for cables, pipes, conduits, and tubes with diameters from 8 to 12 mm. Its hot-dip galvanized steel construction ensures exceptional durability in demanding indoor and outdoor environments, making it a reliable choice for industrial and commercial installations.

Advantages

The hot-dip galvanized finish offers superior protection against rust and corrosion, significantly extending the service life of the clamp even in harsh conditions. The U-bolt design with two fastening points delivers a secure and stable hold, preventing movement and reducing the risk of damage to the clamped components. The M6 thread allows for quick and easy mounting using standard nuts, saving time during installation.

Suitable for

• Securing cables, pipes, conduits, and tubes with an outer diameter of 8–12 mm
• Indoor and outdoor applications requiring high corrosion resistance
• Industrial environments, construction sites, and infrastructure projects
• Use with threaded rods or direct screw mounting on walls and ceilings

Key specifications

• Clamping diameter range: 8–12 mm
• Material: Steel, hot-dip galvanized (tauchfeuerverzinkt)
• Thread size: M6
• Number of fastening points: 2
• Rod diameter: 4 mm
• Inner width: 12 mm
• Inner height: 20 mm
• Temperature resistance: -45°C to +150°C
• Standard compliance: DIN EN ISO 1461

Recommendations

For optimal performance, pair this clamp with appropriate M6 nuts and washers. Ensure the clamped object's diameter falls within the specified range to achieve a firm grip. When installing outdoors, verify that all mounting hardware is also corrosion-resistant to maintain system integrity.
