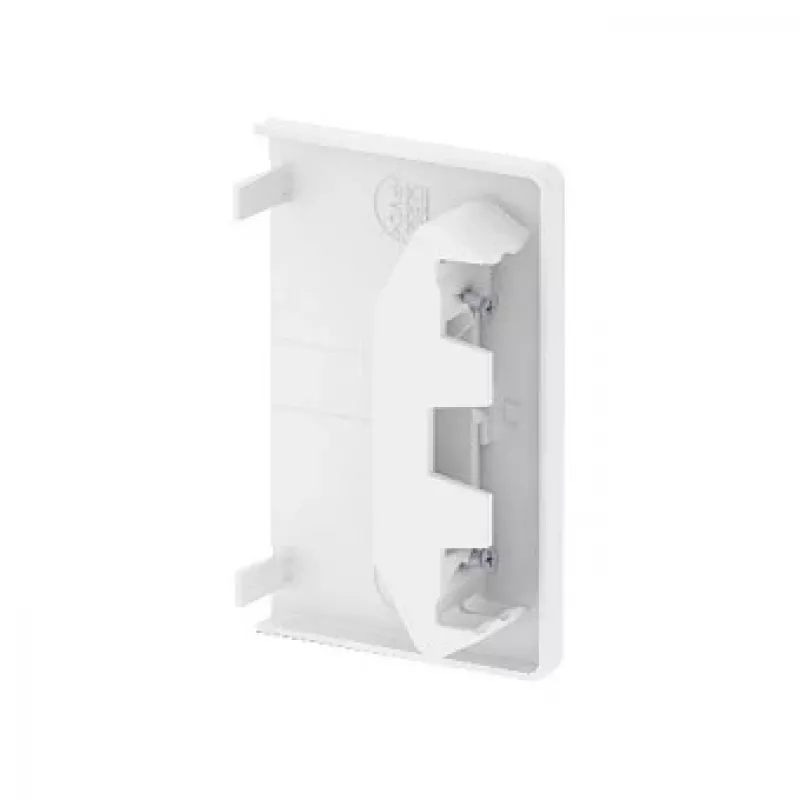

OBO BETTERMANN GKE päätykappale 70x110mm PVC puhtaanvalkoinen RAL9010

Complete your OBO GKE cable trunking installation with this precision-engineered end piece, crafted from durable PVC in pure white RAL9010. Designed to snap securely onto 70x110 mm trunking, it provides a clean, professional finish while protecting cable ends from dust and accidental contact.

Advantages

The clip-on design allows for quick, tool-free installation, saving time on every project. The smooth, pure white surface blends seamlessly with the trunking, maintaining a uniform appearance. Made from self-extinguishing PVC, it enhances fire safety in electrical installations. The end piece is RoHS and REACH compliant, ensuring environmental and health standards are met.

Suitable for

• OBO GKE cable trunking systems with dimensions 70 x 110 mm
• Commercial and residential electrical installations
• Indoor cable management where a neat termination is required
• Applications needing a pure white finish (RAL9010) for aesthetic consistency

Key specifications

• Product type: End piece / cap
• Material: PVC (polyvinyl chloride)
• Colour: Pure white RAL9010
• Compatible trunking: OBO GKE 70x110 mm
• Mounting: Clip-on / snap-on
• Halogen-free: No
• Temperature resistance: -5°C to +60°C
• Fire behaviour: Self-extinguishing
• Protection class: IP30 (when installed correctly)
• RoHS compliant: Yes
• REACH compliant: Yes

Recommendations

For a flawless finish, pair this end piece with OBO GKE trunking of the same dimensions and colour. Ensure the trunking ends are cut square and free of burrs before snapping the end piece into place. Store in a cool, dry area away from direct sunlight to maintain colour stability.
