OBO Bettermann MT45V asennuskehys, grafiitinmusta 7408670

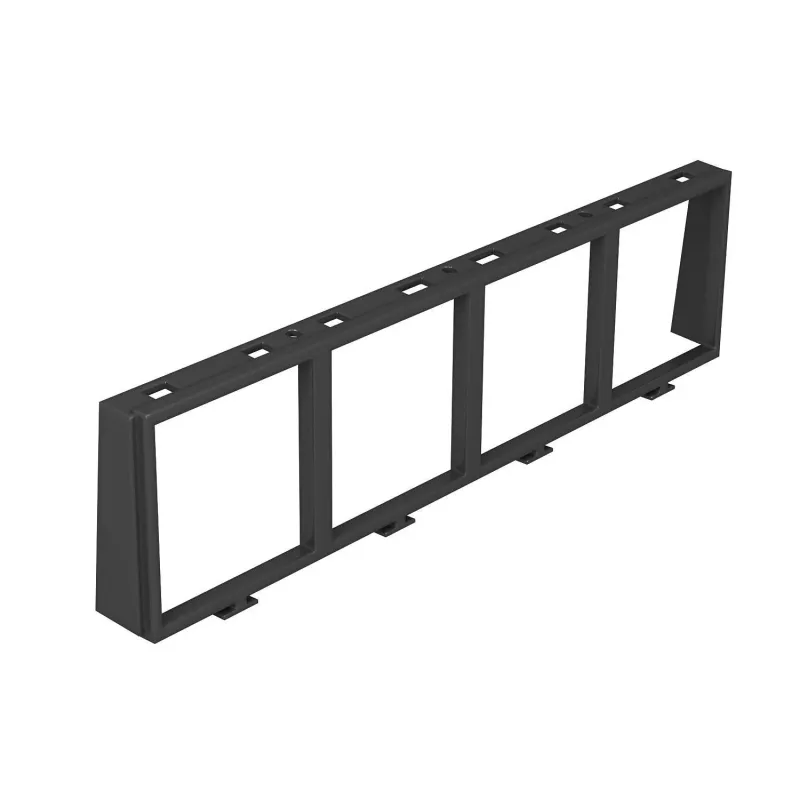

Electricians and installers use the OBO Bettermann MT45V mounting frame to securely hold three Modul 45 devices in vertical orientation within device installation ducts, underfloor systems, or service poles. Its graphite black finish blends with modern interiors.

Key specifications

• Product type: Mounting frame
• Number of modules: 3
• Module standard: Modul 45 (MT45)
• Installation orientation: Vertical
• Colour: Graphite black (RAL 9011)
• Material: Thermoplastic (polycarbonate)
• Halogen-free: Yes
• Mounting type: Snap-in / clip-on
• Operating temperature range: -5 °C to +60 °C
• UV resistance: Yes

Why choose it

The frame is made of halogen-free polycarbonate, offering durability and UV resistance for long-term use. Its snap-in design allows quick installation without tools.

Ideal use cases

• Power, data, and multimedia installations in commercial buildings
• Retrofitting existing Modul 45 systems
• Vertical mounting in service poles or columns

Good to know

The frame is compatible with all OBO Bettermann Modul 45 devices. It is RoHS and REACH compliant.
