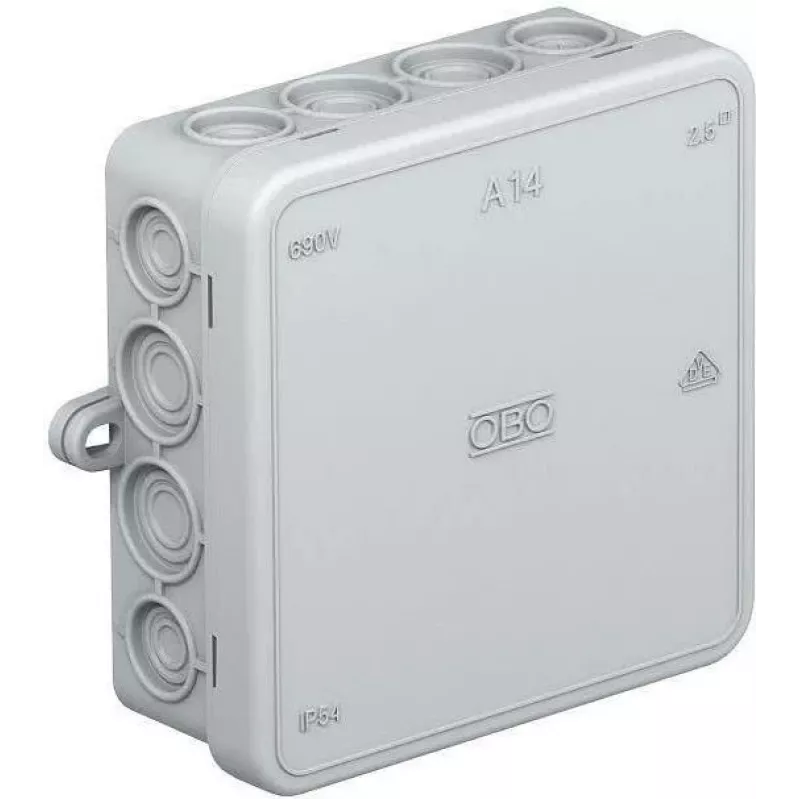

OBO A 14 kaapeliliitäntärasia 100x100x38 mm vaaleanharmaa RAL 7035 IP55

The OBO A 14 cable junction box offers a robust, IP55-rated enclosure for secure electrical connections in demanding environments. Its snap-on lid and pre-embossed knock-outs allow for quick, tool-free installation and reliable cable entry, while the halogen-free, UV-resistant polyethylene construction ensures long-term durability indoors and outdoors.

Advantages

This junction box combines a lightweight yet impact-resistant design (IK07) with excellent chemical and weather resistance. The snap-on lid speeds up installation and maintenance, and the integrated TPE seal guarantees a reliable IP55 protection against dust and water jets. The halogen-free material enhances safety in case of fire, and the light grey RAL 7035 colour blends seamlessly into modern building aesthetics.

Suitable for

• Wall mounting in residential, commercial, and industrial buildings
• Outdoor installations exposed to UV radiation and weathering
• Electrical distribution and connection points requiring IP55 protection
• Cable branching with up to 8 entries (M20/M25 knock-outs)
• Installations where halogen-free materials are required

Key specifications

• Dimensions: 100 x 100 x 38 mm (W x H x D)
• Material: Polyethylene (PE), halogen-free, UV-resistant
• Colour: Light grey RAL 7035
• Protection class: IP55
• Impact resistance: IK07
• Rated insulation voltage: 400 V
• Max. conductor cross-section: 2.5 mm²
• Number of cable entries: 8 (pre-embossed knock-outs M20/M25)
• Lid fastening: Snap-on lid
• Seal material: TPE (Thermoplastic Elastomer)
• Operating temperature range: -5 °C to +60 °C
• Glow wire test: 750 °C

Recommendations

For reliable, long-lasting cable connections in both indoor and outdoor settings, the OBO A 14 junction box is an excellent choice. Its combination of impact resistance, UV stability, and halogen-free materials ensures safety and performance in a wide range of applications.
