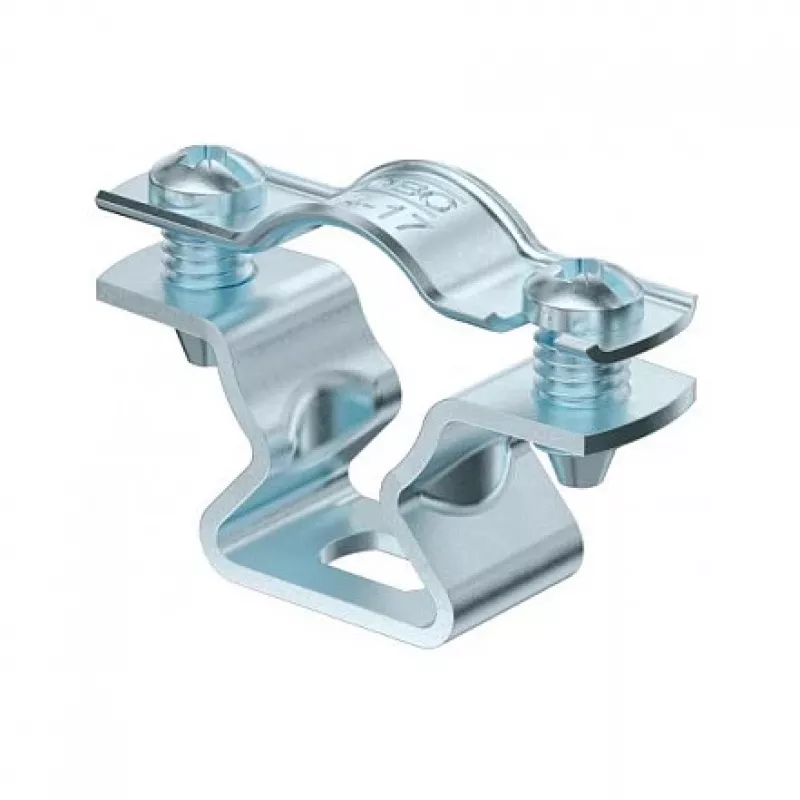

OBO ASL 733 17 G etäisyyssatula pitkittäisreiällä 14-17 mm teräs sinkitty

Electricians and installers working on cable management in industrial or commercial buildings often need a reliable way to secure cables, pipes, or conduits at a fixed distance from the mounting surface. The OBO ASL 733 17 G distance clamp answers that need with a robust steel construction and an elongated hole for flexible positioning. It grips diameters from 14 to 17 mm and holds them 17 mm away from the wall, ceiling, or floor, ensuring proper spacing and neat routing.

Key specifications

• Product type: Distance clamp (cable clamp with spacer)
• Material: Steel, electro-galvanized for corrosion resistance
• Clamping diameter range: 14–17 mm
• Distance to mounting surface: 17 mm
• Mounting: Elongated hole 7 x 15 mm, compatible with M6/M8 screws
• Series: OBO ASL 733
• Standards compliance: DIN EN 61914 (cable cleats)
• Temperature range: -45 °C to +100 °C
• Halogen-free and silicone-free

Why choose it

The electro-galvanized steel body withstands harsh environments, indoors and out, without rusting. The elongated hole lets you adjust the clamp's position after drilling, saving time during alignment. Its 17 mm standoff keeps cables away from surfaces, reducing heat buildup and simplifying inspection. The clamp is halogen-free and silicone-free, making it safe for use in sensitive areas like data centers or public buildings.

Ideal use cases

• Securing single cables, pipes, or conduits along walls, ceilings, or floors
• Maintaining consistent spacing in cable trays or on strut channels
• Installations requiring DIN EN 61914 compliant cable cleats
• Outdoor or humid environments where corrosion resistance is critical

Good to know

The clamp is designed for a single cable or pipe. Use M6 or M8 screws (not included) through the elongated hole. For best results, pair with OBO mounting rails or brackets. The metallic silver finish blends with standard galvanized hardware.
