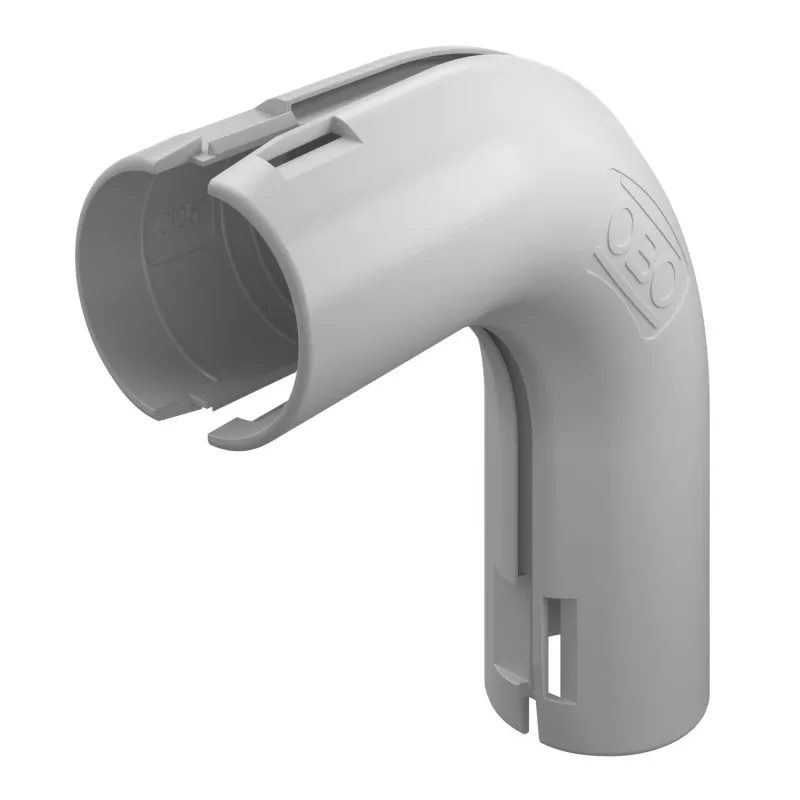

OBO Quick-Pipe mutka 3000 BMS M25 LGR 90° (2154056)

Conduit bend for OBO Quick-Pipe system, 90° angle, M25, light grey. Made of halogen-free polypropylene, UV-stabilised, suitable for surface-mounted, flush-mounted, hollow wall and concrete installations. Temperature range -25 to +60 °C, impact resistance IK08 (5 Joule).

Advantages

Halogen-free and self-extinguishing material for increased safety. UV-stabilised for outdoor use. High impact resistance (IK08).

Suitable for

• Electrical installations in buildings
• Surface-mounted and flush-mounted conduit runs
• Hollow walls and concrete
• Outdoor applications

Key specifications

• Product type: Conduit bend / pipe elbow
• System: OBO Quick-Pipe
• Nominal diameter: M25
• Bend angle: 90°
• Material: Polypropylene (PP)
• Colour: Light grey (RAL 7035)
• Halogen-free: Yes
• UV-stabilised: Yes
• Temperature range: -25 to +60 °C
• Impact resistance: IK08 (5 Joule)
• Flame retardant: Yes, self-extinguishing
• Installation type: Surface-mounted, flush-mounted, hollow walls, concrete
• Outdoor use: Yes
• Conduit type: Rigid conduit
• Application: Electrical installations

Recommendations

Use with OBO Quick-Pipe rigid conduits and fittings for a complete, safe installation.
