OBO BETTERMANN päätykappale halogeeniton WDKH-E30045RW (6175554)

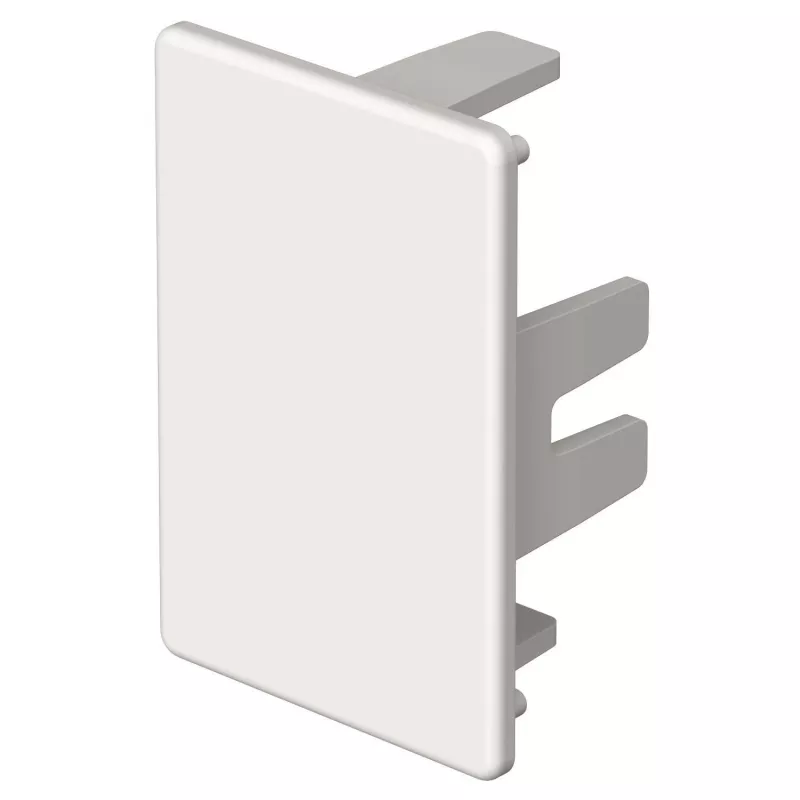

The OBO BETTERMANN End Piece Halogen-Free WDKH-E30045RW is a snap-on end cap for the WDKH wiring duct system, sized for 30 x 45 mm ducts. Unlike generic end caps, this model is made from halogen-free PC/ABS, which limits toxic gas emission in the event of fire, and its pure white RAL 9010 finish blends seamlessly with white duct installations.

Highlights

• Halogen-free PC/ABS material for improved fire safety
• Snap-on mounting for quick, tool-free installation
• Precise fit for 30 x 45 mm WDKH wiring ducts
• Pure white RAL 9010 colour matches standard white ducting
• Self-extinguishing fire behaviour

In daily use

The end piece simply clips onto the cut end of the wiring duct, providing a neat finish and protecting cable insulation from sharp edges. It is intended for indoor use, as UV resistance is limited. The operating temperature range is -5 °C to +60 °C.

Full specifications

• Product type: End piece / end cap
• System compatibility: OBO BETTERMANN WDKH wiring duct system
• Duct dimensions (H x W): 30 x 45 mm
• Material: Halogen-free PC/ABS
• Colour: Pure white RAL 9010
• Halogen-free: Yes
• Mounting type: Snap-on / clip-on
• Operating temperature range: -5 °C to +60 °C
• Standards: DIN EN 50085-2-3
• Fire behaviour: Self-extinguishing
• UV resistance: Limited (indoor use)
• Packaging unit: 1 piece

Final note

A reliable finishing accessory for OBO BETTERMANN WDKH duct installations, combining safety, ease of use, and a clean appearance.
