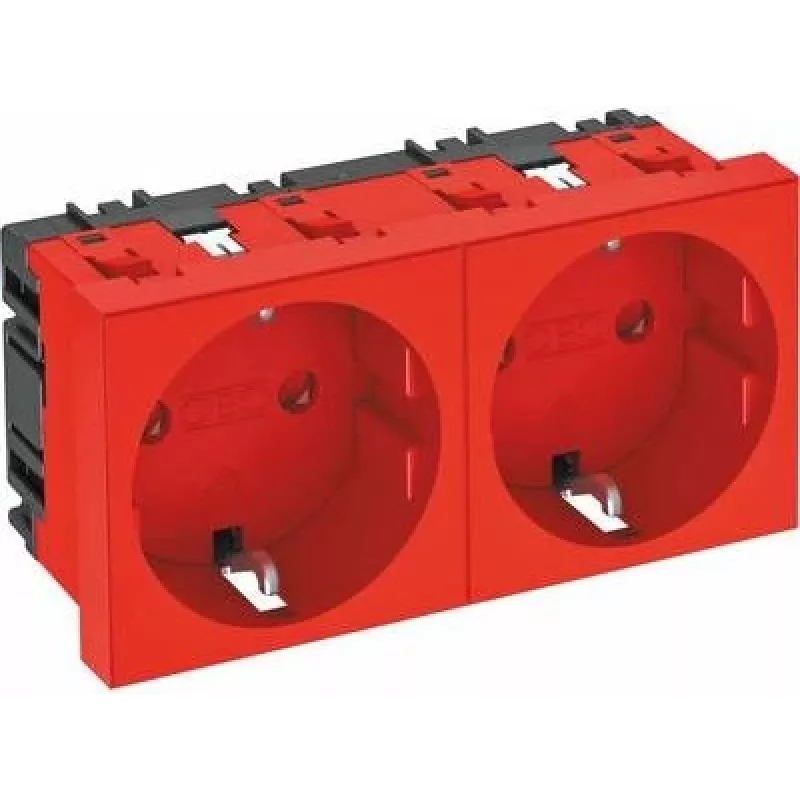

OBO BETTERMANN pistorasia 0° 2-osainen suojakosketin STD (6120028)

Rated for 16A at 250V AC, this 2-way Schutzkontakt socket outlet delivers up to 3680W of power for demanding electrical installations. The 0° straight orientation and GST18i3 plug/socket connection ensure a secure, tool-free integration into modular power distribution systems.

Overview

The OBO BETTERMANN Vertr Steckdose 0 Grad 2-fach Schutzkontakt STD (6120028) is a robust double socket outlet module designed for professional use. It features two Type F (Schutzkontakt) sockets with a straight 0° orientation, making it ideal for flush mounting in workstations, desks, or cable ducts. The module connects via a GST18i3 plug on the input and a GST18i3 socket on the output, enabling daisy-chaining of multiple modules without additional wiring. The black plastic housing is both durable and unobtrusive, blending seamlessly into modern environments.

What stands out

• Two Schutzkontakt (Type F) sockets with 16A/250V rating
• Straight 0° socket orientation for easy access
• GST18i3 plug-and-socket connection for quick installation
• Compact plastic housing in black
• VDE and CE certified for safety

Technical details

• Number of sockets: 2
• Socket type: Schutzkontakt (Type F)
• Socket orientation: 0° (straight)
• Rated voltage: 250V AC
• Rated current: 16A
• Maximum power: 3680W
• Input connection: GST18i3 plug (Wieland compatible)
• Output connection: GST18i3 socket (Wieland compatible)
• Series: Bachmann STEP
• Housing material: plastic
• Colour: black
• Protection class: IP20
• Mounting type: screw-on / integrated
• Cable length: none (module)
• Certifications: VDE, CE

Our verdict

A reliable and efficient power distribution solution for professional environments, offering safe and convenient access to two earthed sockets with straightforward installation.
