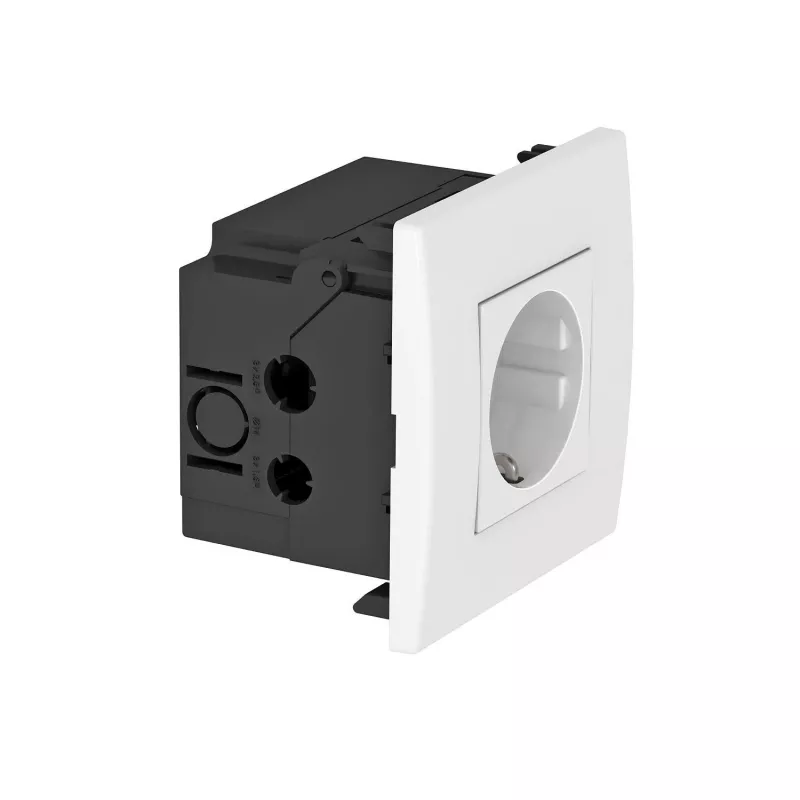

OBO Bettermann pistorasiayksikkö 1-osainen 84x84x59mm puhtaanvalkoinen SDE (6119401)

For electricians and installers working with OBO Bettermann device installation trunking or underfloor systems, this 1-gang socket outlet unit provides a reliable power point in a compact 84x84x59mm form factor. The pure white (RAL 9010) finish blends into modern interiors, and the screw terminals ensure a secure connection.

Key specifications

• Socket type: Schuko (Type F)
• Number of sockets: 1
• Rated voltage: 250 V
• Rated current: 16 A
• Frequency: 50/60 Hz
• Material: PC/ABS
• Colour: Pure White (RAL 9010)
• Mounting type: For device installation trunking / underfloor systems
• Connection type: Screw terminals
• Halogen-free: Yes
• Surface finish: Matt

Why choose it

This socket outlet unit is designed for integration into OBO Bettermann trunking and underfloor systems, ensuring a clean and professional installation. The halogen-free PC/ABS material meets modern building requirements, and the screw terminals provide a durable connection for fixed wiring.

Ideal use cases

• Office workstations with OBO Bettermann trunking
• Underfloor power distribution in commercial buildings
• Retail and hospitality installations requiring a neat power outlet

Good to know

The unit has a protection class of IP20 and impact protection IK07, making it suitable for indoor use where mechanical stress is moderate. It operates within a temperature range of -5 to +60 °C.
