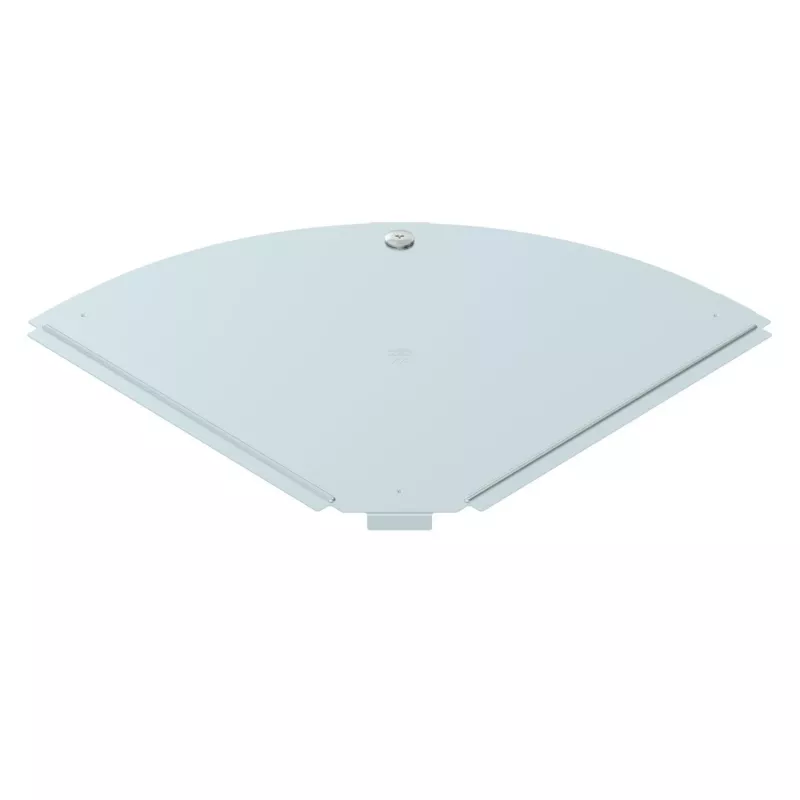

OBO BETTERMANN RBD 90 300 DD kansi 90° mutkalle, 300mm leveys, teräs, nauhasinkitty 6036956

When installing cable trays, 90° bends leave open sections that expose cables to dust, debris, and accidental contact. This cover closes that gap on OBO Bettermann RBD 300 mm wide 90° bends, keeping the installation neat and protected.

Who is it for

Electricians and panel builders working with OBO RBD cable tray systems in indoor environments. It suits projects where a simple, metallic cover is needed to match the existing tray finish.

Main features

• Fits OBO Bettermann RBD 90° bend with 300 mm nominal width
• Made from steel with strip galvanized surface for basic corrosion resistance
• Clip-on or screw-on mounting for secure attachment
• Metallic grey colour blends with standard tray components

Specifications

• Material: Steel
• Surface finish: Strip galvanized
• Nominal tray width: 300 mm
• Bend angle compatibility: 90°
• Length (outer curve): 424 mm
• Width: 300 mm
• Height: 15 mm
• Application environment: Indoor

Tips

Check the exact bend radius of your RBD 90° bend before ordering. This cover is designed for standard OBO bends; custom or modified trays may require adjustment.
