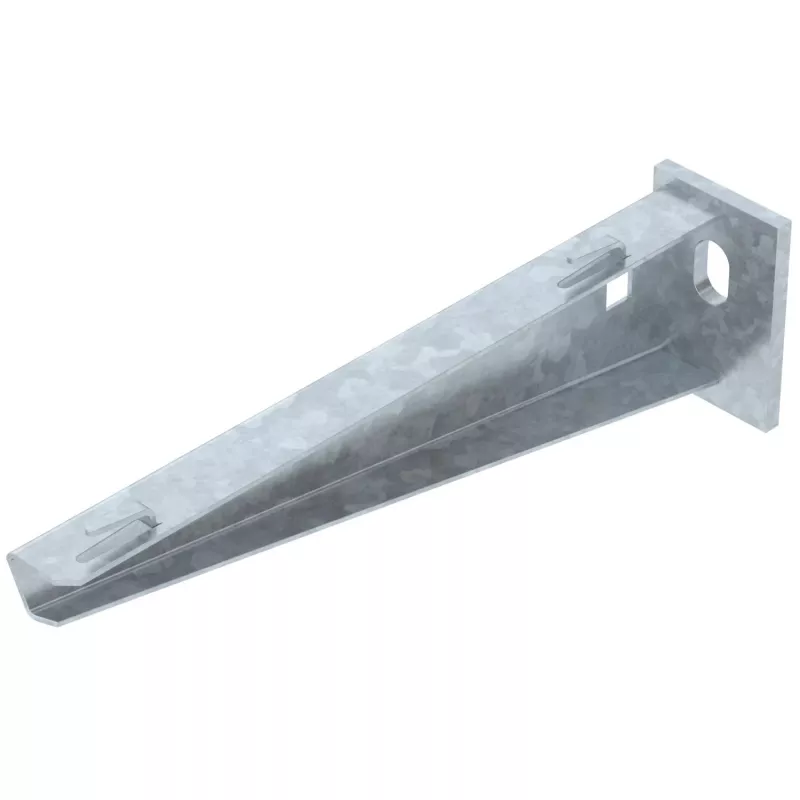

OBO Bettermann seinä- ja ulokekonsoli 210 mm AW G 15 21 FT (6420608)

Electricians and installers mounting cable trays, mesh trays, or cable ladders on walls in industrial and commercial buildings use this OBO Bettermann wall and boom bracket. The 210 mm projection provides a stable support arm for routing cables away from the wall, while the hot-dip galvanized steel construction withstands harsh indoor and outdoor environments.

Key specifications

• Product type: Wall and boom bracket
• Material: Steel
• Surface treatment: Hot-dip galvanized (FT)
• Projection length: 210 mm
• Profile type: C-profile
• Profile designation: G 15 21
• Max. static load: 0.5 kN
• Mounting type: Wall mounting
• Number of wall mounting holes: 2
• Hole diameter: 11 mm
• Distance between holes: 100 mm
• Overall height of wall plate: 150 mm
• Overall width of bracket: 40 mm

Why choose it

The hot-dip galvanized finish provides high corrosion resistance, making it suitable for both indoor and outdoor applications. The C-profile design allows for easy attachment of cable support systems, and the two pre-drilled mounting holes simplify installation.

Ideal use cases

• Supporting cable trays along walls in factories and warehouses
• Mounting mesh trays for data and power cables in commercial buildings
• Outdoor cable routing on building facades or industrial structures

Good to know

This bracket is part of the OBO Bettermann cable support system and is compatible with their range of cable trays, mesh trays, and cable ladders. The static load capacity of 0.5 kN (approx. 50 kg) refers to a single bracket; always follow system engineering guidelines for multiple supports.
