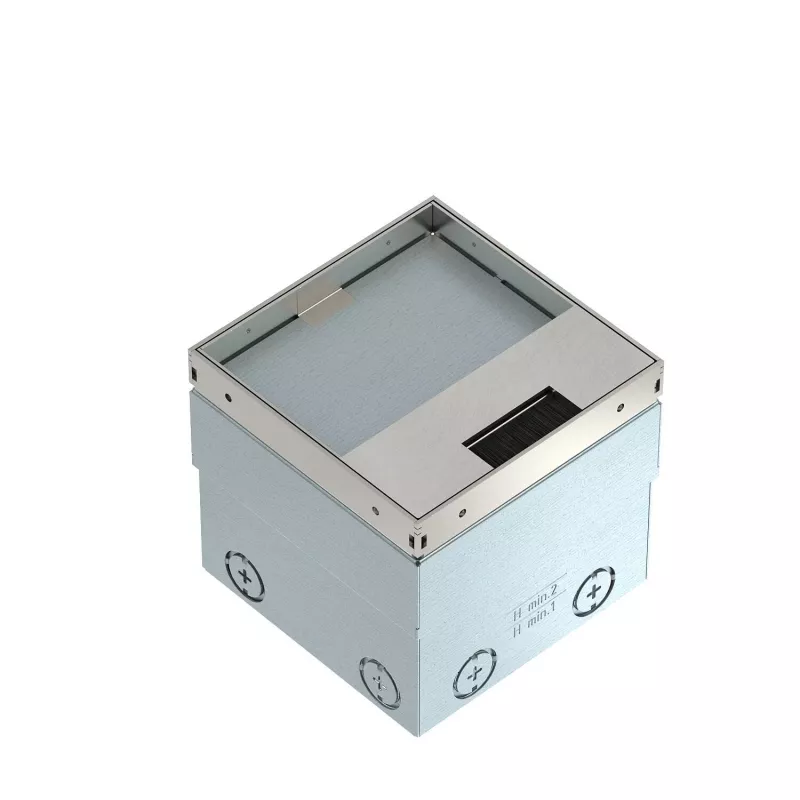

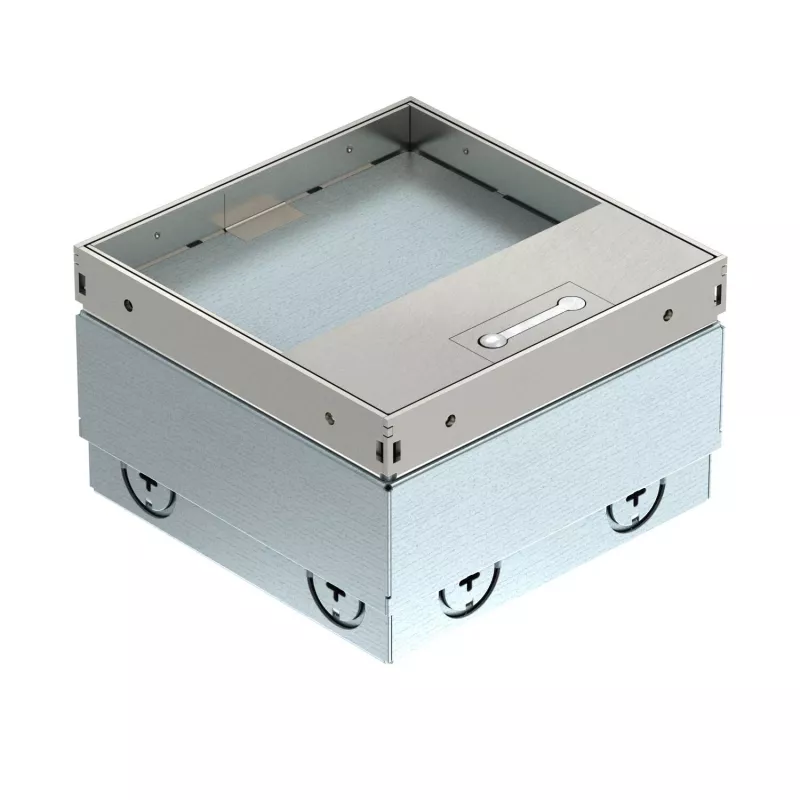

OBO Bettermann UDHOME2 lattiakeskus 140x140x110 ruostumaton teräs/musta 7368353

Flush-mounted floor boxes often protrude above the floor or fail to blend with modern interiors. The OBO Bettermann UDHOME2 solves this by sitting level with the screed, providing a discreet power and data access point in offices and living spaces.

Who is it for

Electricians and builders installing flush floor outlets in screed floors, and homeowners or facility managers needing a robust, height-adjustable floor box for pedestrian traffic.

Main features

• Two Modul 45 device units for power or data modules
• Stainless steel lid (V2A) with black polyamide housing
• Height-adjustable to match floor covering recess depth of 5 mm
• Four cable entry points: M25/M32
• Halogen-free materials

Specifications

• Series: UDHOME2
• Mounting type: Flush-mounted in screed
• Housing material: Polyamide (PA)
• Lid/frame material: Stainless steel (V2A)
• Number of device units: 2 (Modul 45 compatible)
• Floor covering recess depth: 5 mm
• Load capacity: Pedestrian traffic
• Protection class: IP20 (when closed)
• Cable entry points: 4x M25/M32
• Lid colour: Stainless steel
• Housing colour: Black
• Halogen-free: Yes
• Adjustability: Height adjustable
• Application area: Office, residential
• Installation depth: 110 mm
• Suitable for wet cleaning: No
• Pre-wired/empty: Empty (for individual device installation)

Tips

Ensure the screed depth matches the 110 mm installation depth. Pair with Modul 45 inserts for power, data, or multimedia connections.
