OBO Bettermann Vertr päätytulppa LKM E30030RW (6249410)

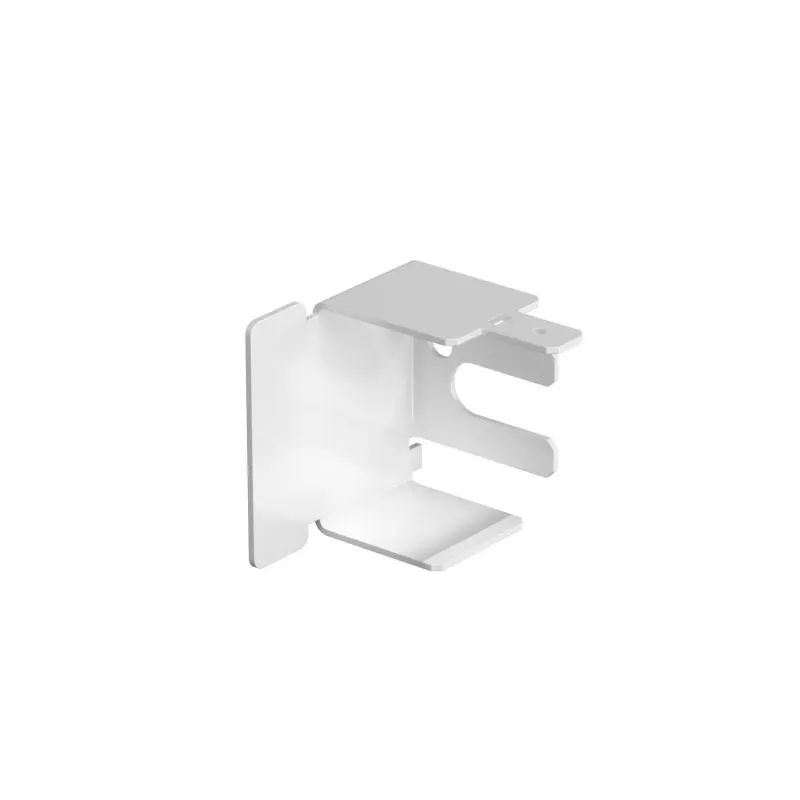

Snap-on end cap for OBO Bettermann LKM cable trunking, sized 30 x 30 mm, in pure white (RAL 9010). Made from PVC with a matt finish, it closes the open end of a trunking section cleanly and protects cable entries from dust and contact.

Overview

The LKM E30030RW is a matching accessory for OBO Bettermann LKM series cable trunking with internal dimensions of 30 x 30 mm. It clips onto the cut end of the trunking without tools, providing a neat termination and preventing accidental contact with live conductors. The white colour matches the standard LKM trunking colour for a uniform installation appearance.

What stands out

• Precise fit for LKM 30 x 30 mm trunking
• Tool-free snap-on installation
• Pure white (RAL 9010) matches trunking colour
• Self-extinguishing PVC material
• Indoor use, operating temperature -5 to +60 °C

Technical details

• Product type: End cap for cable trunking
• Compatible trunking series: OBO Bettermann LKM
• Compatible trunking dimensions (W x H): 30 x 30 mm
• Material: PVC (Polyvinyl Chloride)
• Colour: Pure White (RAL 9010)
• Mounting method: Snap-on / Clip-on
• Glow wire test (IEC 60695-2-11): 850 °C
• Operating temperature range: -5 to +60 °C
• Impact resistance: IK07
• Surface finish: Matt
• Fire behaviour: Self-extinguishing
• Quantity per pack: 1 piece

Our verdict

A simple, reliable end cap that completes the job. If you need to close off a 30x30 LKM trunking run, this is the part.
