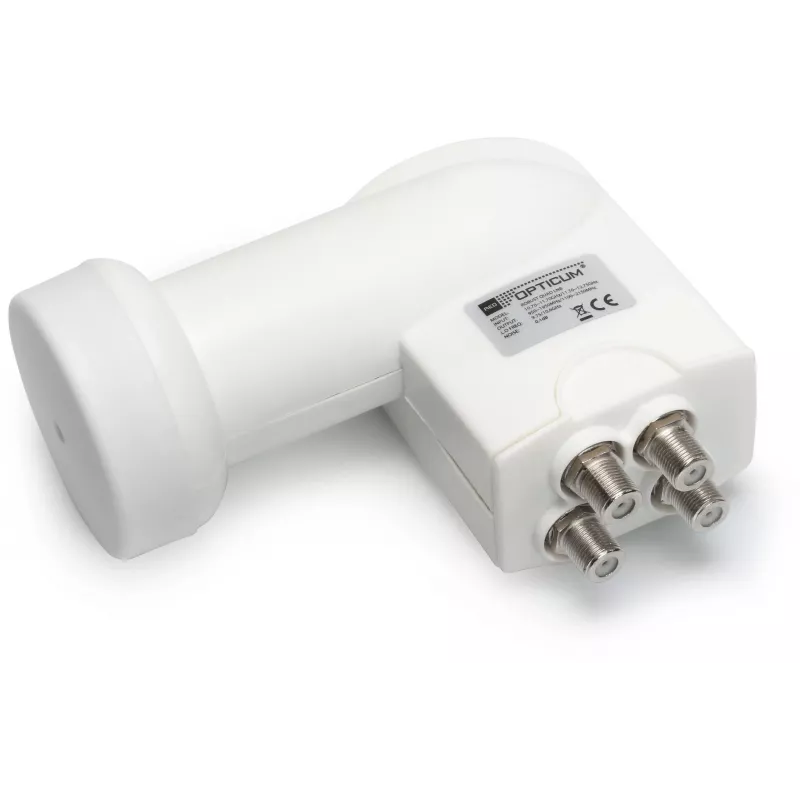

OPTICUM QUAD Red Robust yleisneljännen LNB

The OPTICUM QUAD Red Robust is a high-performance Universal Quad LNB designed for reliable satellite signal reception. With four independent outputs, it supports up to four DVB-S/S2 compliant receivers simultaneously, making it ideal for multi-room installations. Its robust, fully weatherproof construction ensures long-lasting performance in outdoor environments.

Advantages

Featuring a low noise figure of 0.1 dB and a minimum conversion gain of 55 dB, this LNB delivers excellent signal quality even in challenging conditions. The red robust housing provides enhanced durability and weather resistance, operating reliably in temperatures from -30°C to +60°C.

Suitable for

• Multi-room satellite TV systems
• DVB-S/S2 compliant receivers
• Outdoor installations requiring weatherproof equipment

Key specifications

• LNB Type: Universal Quad
• Number of Outputs: 4
• Input Frequency Range: 10.7 - 12.75 GHz
• Output Frequency Range: 950 - 2150 MHz
• Low Band LO Frequency: 9.75 GHz
• High Band LO Frequency: 10.6 GHz
• Noise Figure: 0.1 dB
• Conversion Gain: 55 dB (min)
• Feedhorn Diameter: 40 mm
• Cross Polarization Isolation: >22 dB
• Output VSWR: 2.0:1 (max)
• Current Consumption: 150 mA (max)
• Operating Voltage (Vertical): 11.5 - 14.0 V DC
• Operating Voltage (Horizontal): 16.0 - 19.0 V DC
• Band Switching: 0/22 kHz Tone
• Weather Protection: Fully Weatherproof
• Operating Temperature: -30°C to +60°C
• Color: Red

Recommendations

For optimal performance, use with high-quality coaxial cables and ensure proper alignment of the satellite dish. This LNB is compatible with all standard DVB-S/S2 receivers.
