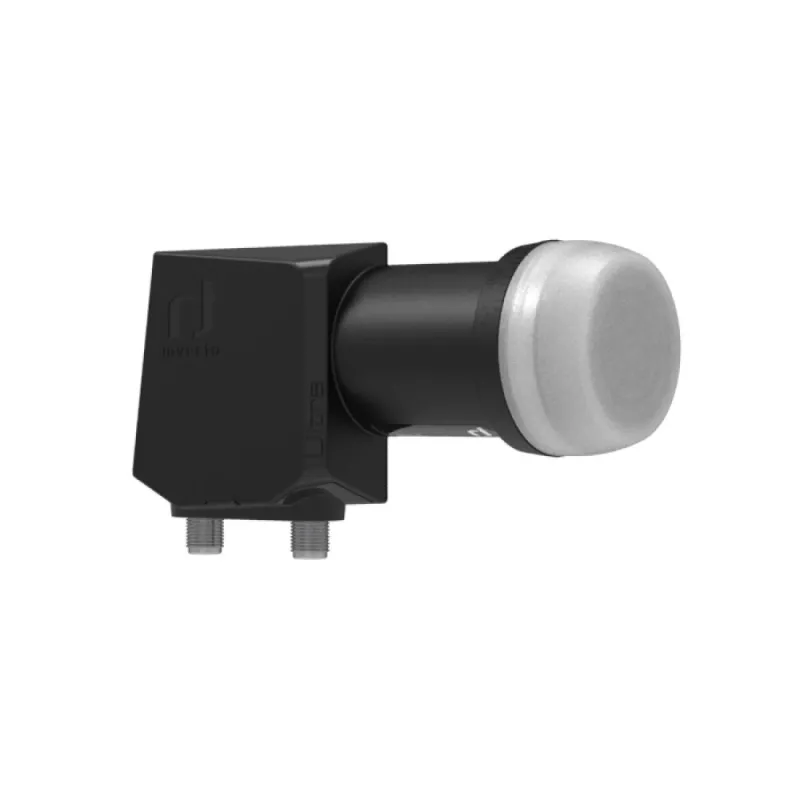

INVERTO TWIN BLACK ULTRA -muunnin - Twin LNB, 0,2 dB kohinaluku, 2 lähtöä

The INVERTO TWIN BLACK ULTRA Converter is a high-performance twin LNB designed for satellite reception. With an ultra-low noise figure of 0.2 dB, it ensures excellent signal quality even in weak signal areas. This converter supports DVB-S and DVB-S2 standards, making it compatible with HDTV and 4K UHD broadcasts. It features two independent outputs, allowing connection to two separate receivers.

Advantages

Ultra-low noise figure for superior signal reception; robust IP67 water protection for outdoor use; wide operating temperature range from -30 to +60 °C; high cross-polarization isolation minimizes interference; compatible with modern satellite standards including 4K UHD.

Suitable for

• Satellite TV installations requiring two independent receivers
• HDTV and 4K UHD satellite reception
• Outdoor use in harsh weather conditions
• Upgrading existing single LNB setups to twin output

Key specifications

• LNB Type: Twin
• Noise Figure: 0.2 dB (typical)
• Input Frequency Range: 10.7 - 12.75 GHz
• Output Frequency Range: 950 - 2150 MHz
• LO Frequencies: 9.75 GHz (Low), 10.6 GHz (High)
• Conversion Gain: 55 dB (min)
• Output Connectors: 2 x F-Type
• Feed Horn Diameter: 40 mm
• Water Protection: IP67
• Operating Temperature: -30 to +60 °C
• Current Consumption: 120 mA (max)
• Compatibility: DVB-S, DVB-S2 (HDTV, 4K UHD)

Recommendations

For optimal performance, use high-quality coaxial cables and ensure proper alignment of the satellite dish. The INVERTO TWIN BLACK ULTRA Converter is an ideal choice for reliable multi-room satellite TV distribution.
