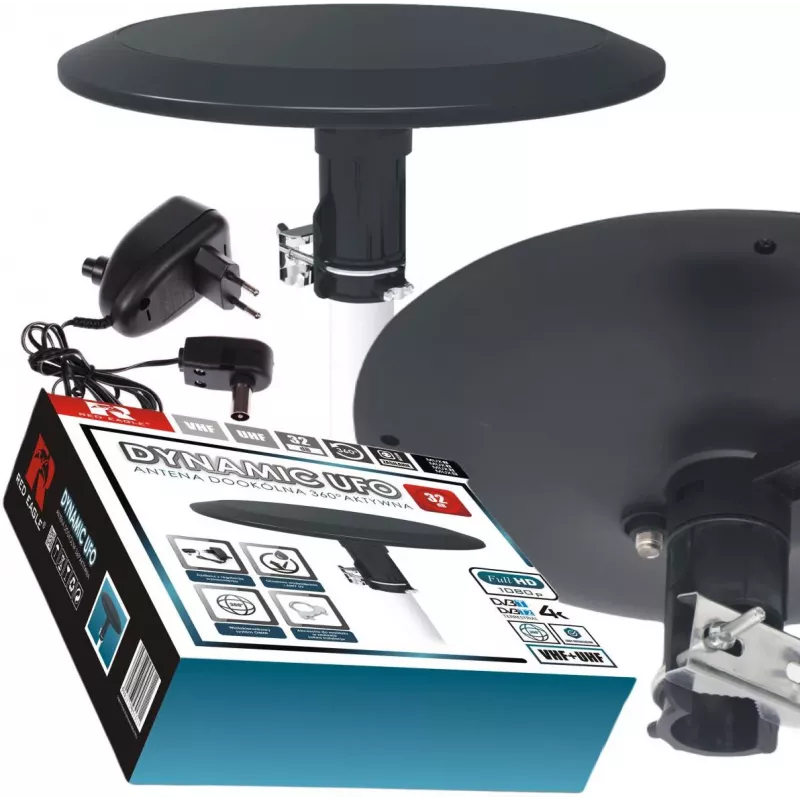

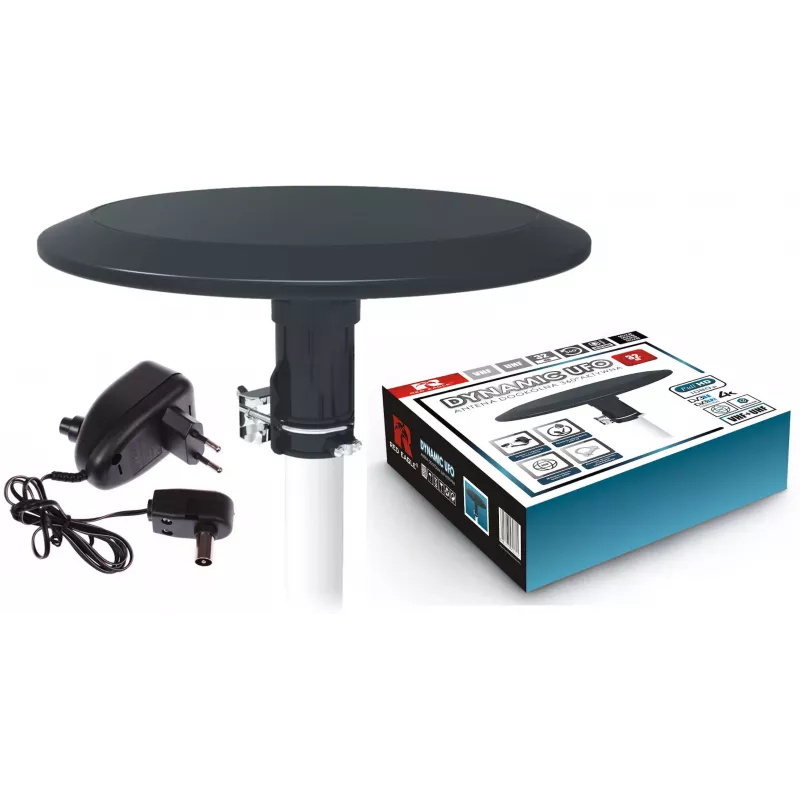

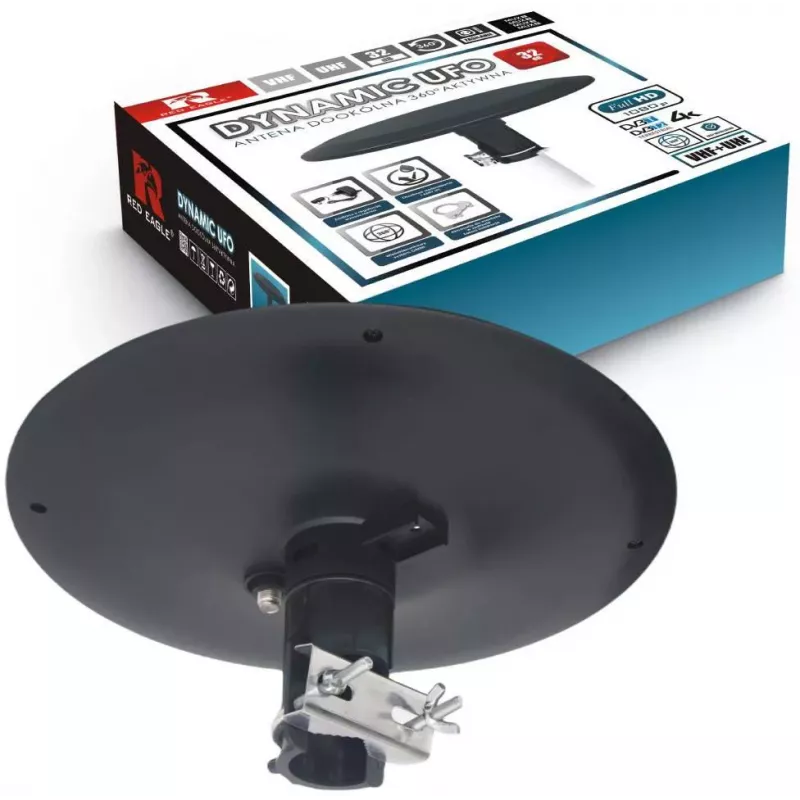

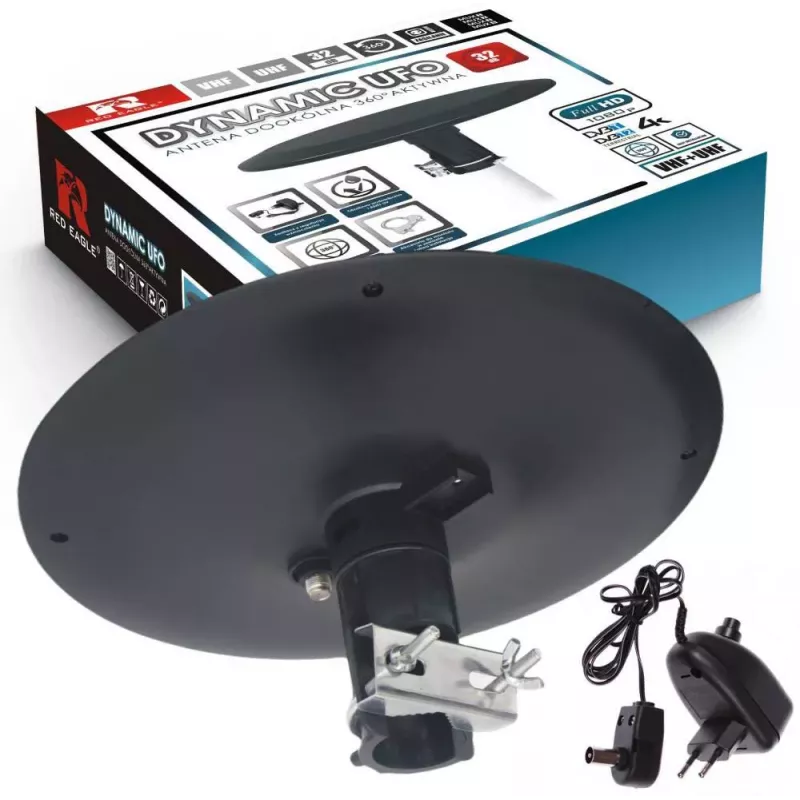

OPTICUM RED Opticum DVB-T Dynamic UFO-360 musta aktiivinen ulkoinen ympärisäteilevä antenni

The OPTICUM RED Opticum DVB-T Dynamic UFO-360 is a high-performance active outdoor omnidirectional antenna designed for reliable reception of DVB-T, DVB-T2, DAB, and DAB+ signals. Its sleek black design and robust construction make it an ideal choice for both urban and rural environments.

Advantages

With a maximum gain of 33 dB (UHF) and 30 dB (VHF), this antenna ensures excellent signal reception even in challenging conditions. The built-in amplifier and LTE filter minimize interference, while the omnidirectional design captures signals from all directions without the need for manual adjustment.

Suitable for

• Digital terrestrial television (DVB-T/DVB-T2)
• Digital audio broadcasting (DAB/DAB+)
• Outdoor installation on poles or masts

Key specifications

• Antenna Type: Active Outdoor Omnidirectional
• Reception: DVB-T, DVB-T2, DAB, DAB+
• Frequency Bands: VHF (174-230 MHz), UHF (470-790 MHz)
• Maximum Gain: 30 dB (VHF), 33 dB (UHF)
• Noise Figure: < 3 dB
• Polarization: Horizontal and Vertical
• Built-in Amplifier: Yes
• LTE Filter: Yes
• Power Supply: 5-24V DC via coaxial cable
• Connector: F-type
• Weather Resistance: UV resistant, waterproof
• Housing Material: High-quality ABS plastic
• Color: Black
• Mounting: Pole/Mast mount (kit included)

Recommendations

For optimal performance, install the antenna at a height with clear line of sight to the broadcast tower. Use a compatible DVB-T receiver or power injector to supply power via the coaxial cable. Ensure proper grounding for lightning protection.
