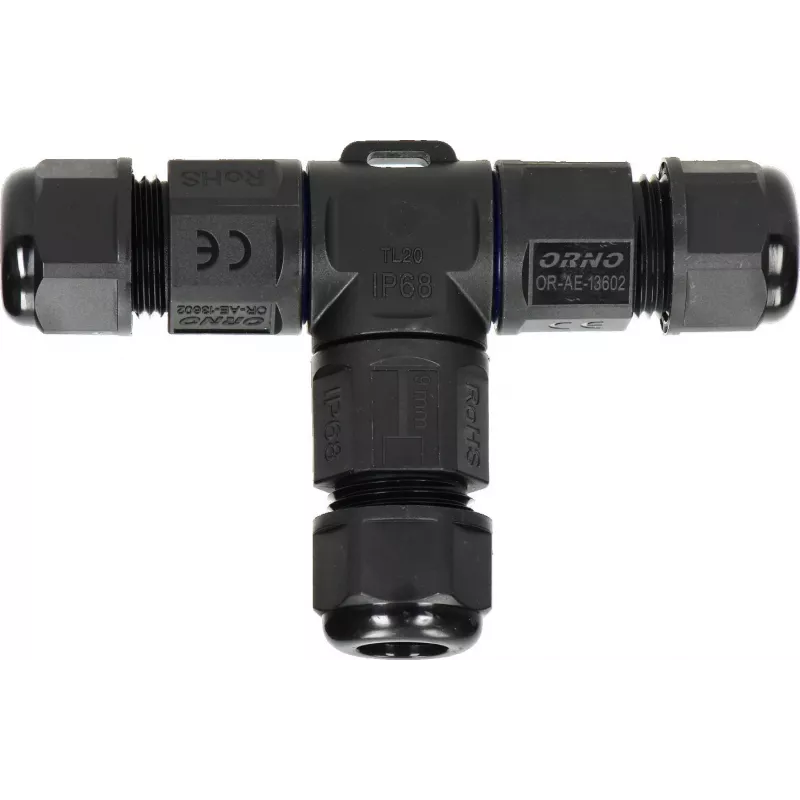

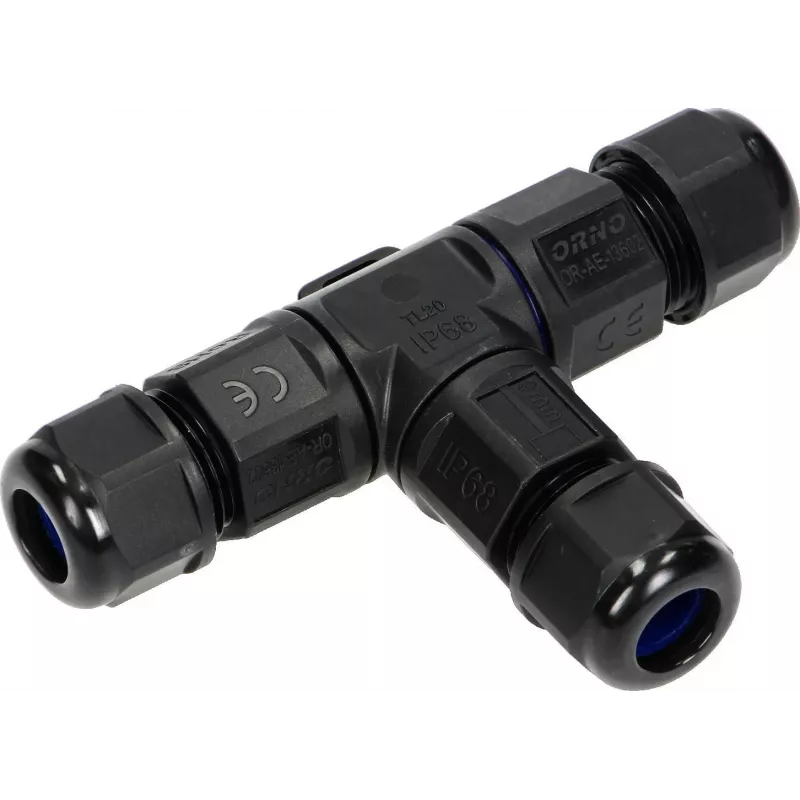

ORNO OR-AE-13602 T-liitin IP68, 3x4mm², 450V/25A, musta

The ORNO OR-AE-13602 is a high-quality T-junction cable connector designed for reliable and secure electrical connections in demanding environments. With an IP68 rating, it is fully protected against dust and prolonged immersion in water, making it ideal for outdoor, underground, and harsh industrial applications. This 3-way connector accommodates cables up to 3x4mm² and supports a rated voltage of 450V AC and current of 25A.

Advantages

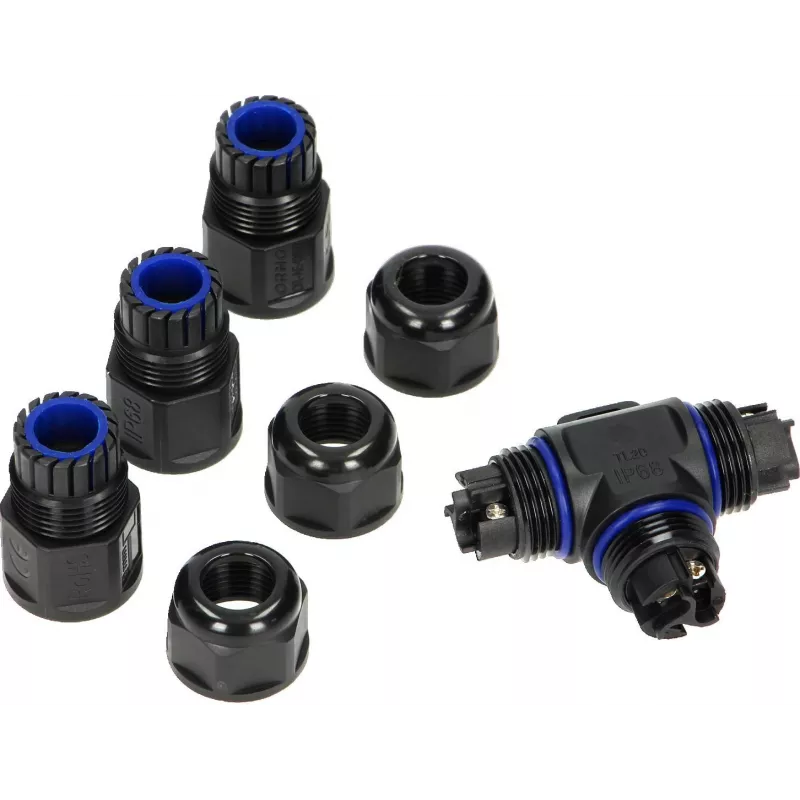

Robust PA66 housing with silicone seals ensures long-lasting durability and excellent environmental protection. Screw terminals provide secure and easy cable termination. The compact T-junction design allows for efficient branching of power cables without the need for additional junction boxes.

Suitable for

• Outdoor lighting and power distribution
• Underground cable connections
• Industrial machinery and equipment
• Agricultural and irrigation systems
• Temporary power supplies for construction sites

Key specifications

• Product Type: Cable Connector (T-Junction)
• Ingress Protection: IP68
• Max. Cable Cross-Section: 3 x 4mm²
• Rated Voltage: 450V AC
• Rated Current: 25A
• Number of Poles: 3-pole
• Cable Diameter Range: 5 - 10 mm
• Terminal Type: Screw Terminals
• Housing Material: PA66 (Polyamide 66)
• Seal Material: Silicone
• Operating Temperature: -40°C to +105°C
• Flammability Rating: UL94-V0
• Certifications: CE, RoHS
• Colour: Black

Recommendations

For optimal performance, ensure cables are properly stripped and inserted fully into the terminals before tightening screws. Suitable for use with copper conductors only. Not recommended for dynamic bending applications.
