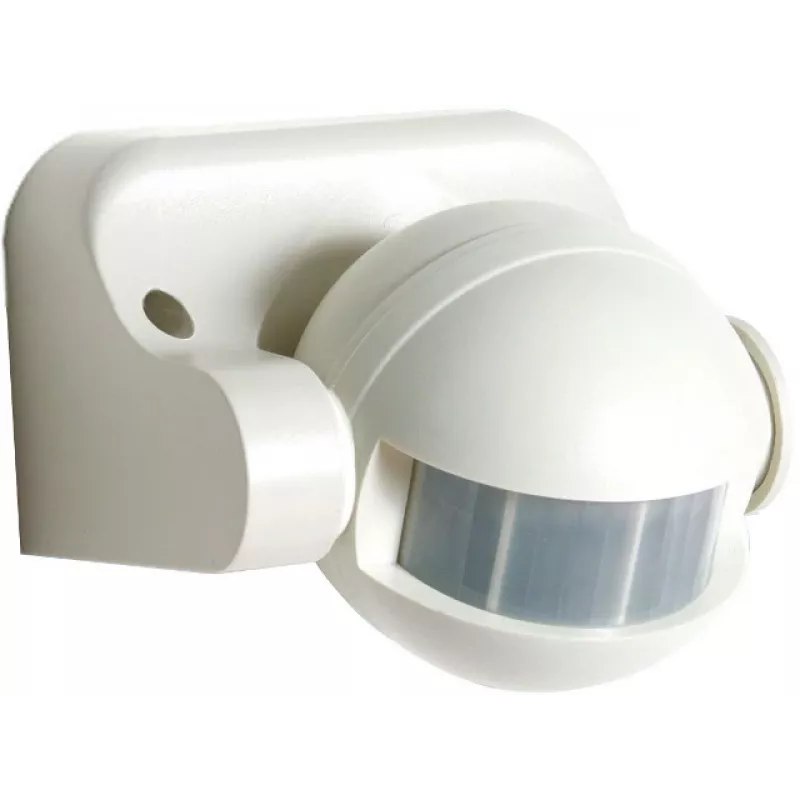

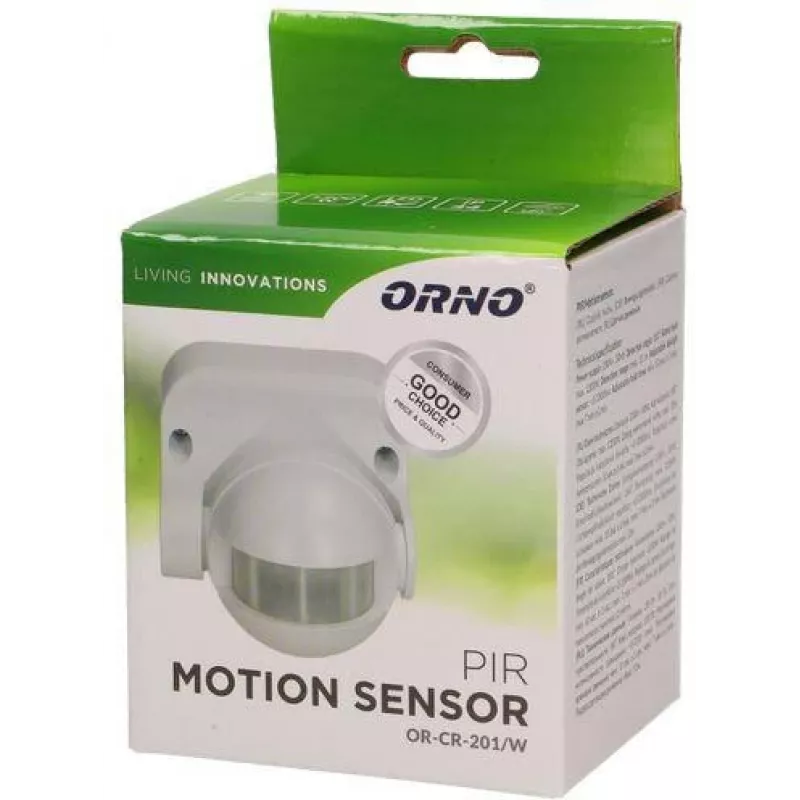

ORNO OR-CR-201/W PIR-liiketunnistin valkoinen

The ORNO OR-CR-201/W is a high-quality passive infrared (PIR) motion sensor designed for reliable automatic lighting control in indoor and outdoor applications. With a 180° detection angle and a range of up to 12 meters, it ensures comprehensive coverage. The sensor is wall-mounted and features adjustable light sensitivity (3-2000 LUX) and time delay (10s to 15min), making it versatile for various environments. Its IP44 rating provides protection against splashing water, suitable for covered outdoor areas.

Advantages

Energy-efficient automatic lighting control; easy installation and adjustment; robust design with IP44 protection; suitable for both residential and commercial use.

Suitable for

• Corridors, staircases, and hallways
• Garages and basements
• Covered outdoor areas (e.g., terraces, entrances)
• Office spaces and storage rooms

Key specifications

• Sensor type: PIR (Passive Infrared)
• Detection angle: 180°
• Detection range: up to 12m (at <24°C)
• Power supply: 230V AC, 50Hz
• Max resistive load: 1200W
• Max inductive load: 300W (LED/fluorescent)

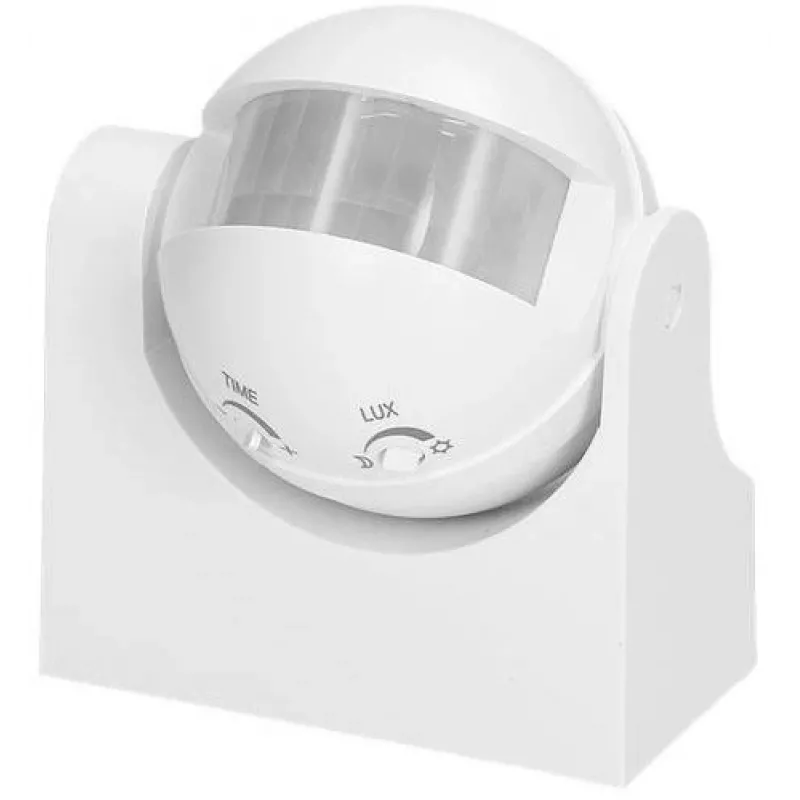

• Light sensitivity: 3-2000 LUX (adjustable)
• Time delay: 10s to 15min (adjustable)
• Installation height: 0.5m - 3.5m (optimal 1.8m-2.5m)
• IP rating: IP44
• Operating temperature: -20°C to +40°C
• Colour: White
• Material: Plastic
• Standby power consumption: <0.5W

Recommendations

For optimal performance, install the sensor at the recommended height and avoid placing it near heat sources or air conditioning vents. Ensure the detection area is free from obstructions.
