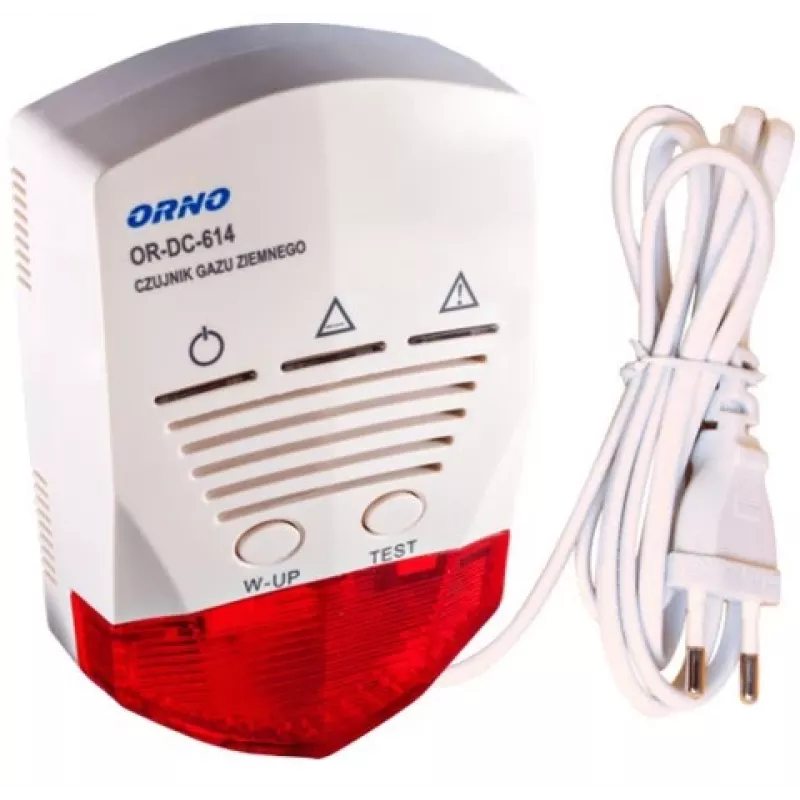

ORNO OR-DC-614 maakaasuilmaisin (metaani, CNG, LNG) 230V

The ORNO OR-DC-614 is a high-quality natural gas detector designed for domestic premises. It reliably detects methane, propane, butane, CNG, and LNG, providing early warning of gas leaks to ensure safety in your home. Powered by 230V AC, this wall-mounted detector features both acoustic (85 dB) and visual (red LED) alarms, alerting you immediately when gas concentration reaches 10% of the Lower Explosive Limit (LEL).

Advantages

Reliable semiconductor sensor ensures accurate detection of multiple combustible gases. Easy wall-mounted installation with no batteries required. Compact white ABS housing blends seamlessly into any room. Complies with EN 50194-1:2009 standard for residential gas detectors.

Suitable for

• Domestic kitchens, boiler rooms, and utility areas
• Homes using natural gas, methane, CNG, or LNG
• Residential premises requiring continuous gas monitoring

Key specifications

• Detected gases: Natural Gas (Methane, Propane, Butane, CNG, LNG)
• Power supply: 230V AC, 50Hz
• Sensor type: Semiconductor
• Alarm level: 10% LEL
• Alarm type: Acoustic (85 dB at 1m) and visual (red LED)
• Operating temperature: 0°C to +45°C
• Operating humidity: 10% to 95% RH (non-condensing)
• Power consumption: < 3W
• Warm-up time: approx. 180 seconds
• Installation: Wall-mounted
• Housing material: ABS plastic
• Colour: White
• Certifications: EN 50194-1:2009

Recommendations

For optimal safety, install the detector in areas where gas appliances are used, at a height appropriate for the gas type (natural gas near ceiling, LPG near floor). Test the alarm weekly and replace the unit according to manufacturer's guidelines.
