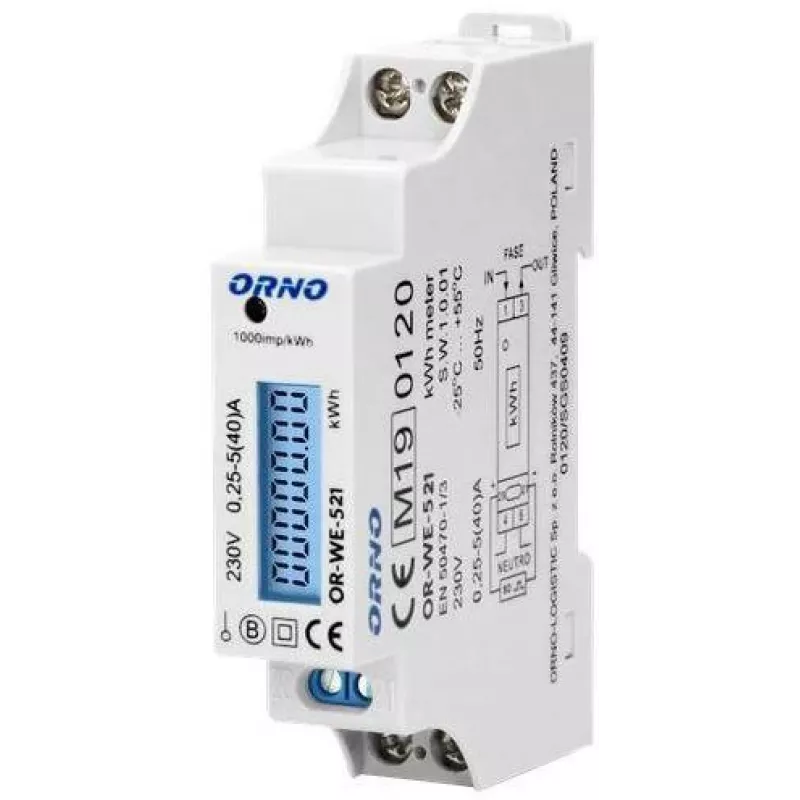

ORNO OR-WE-521 yksivaiheinen sähkömittari

The ORNO OR-WE-521 is a single-phase electricity meter designed for measuring energy consumption in kilowatt-hours. It features a backlit LCD display and an impulse output, and is built for DIN rail mounting.

Key features

• Single-phase electricity meter
• Backlit LCD display
• Impulse output
• DIN rail mounting (1 module, TH-35mm)
• LED indicator for energy consumption

Specifications

• Model: OR-WE-521
• Type: single-phase
• Ports: none
• Communication protocol: none
• Supply voltage: 230V~, 50Hz
• Base current (Ib): 5A
• Maximum current (Imax): 40A
• Minimum current (Imin): 0.25A
• Impulse frequency: 1000 imp/kWh
• Accuracy class: B
• MID compliance (2014/32/EU): yes
• Display: 5+2
• Impulse output: yes
• Multi-tariff: no
• Number of modules: 1
• Protection degree: IP51
• Dimensions (W/H/D [mm]): 18 / 110 / 60
• Other features: with backlight
