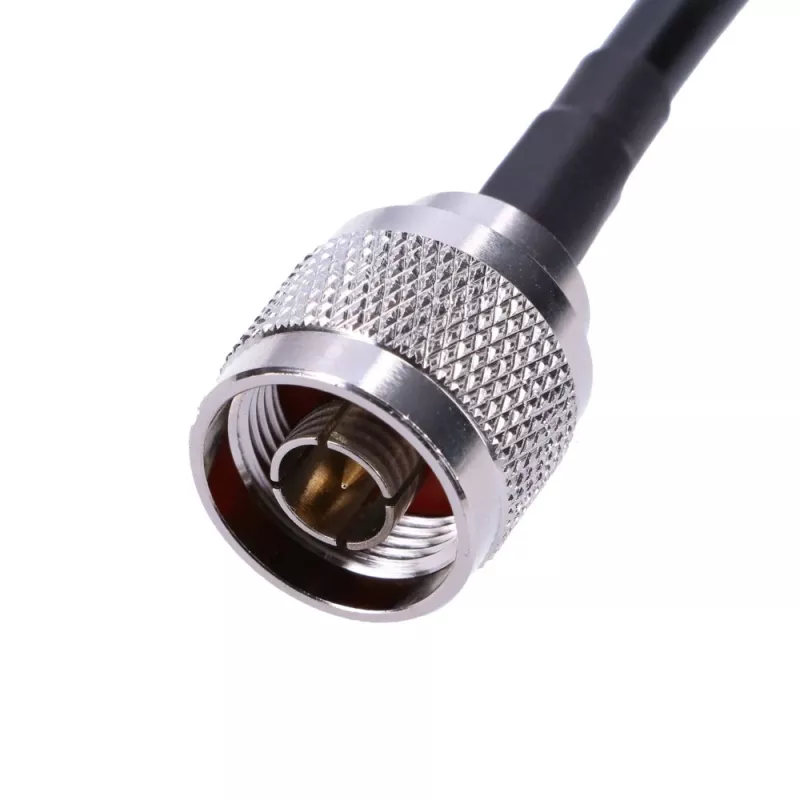

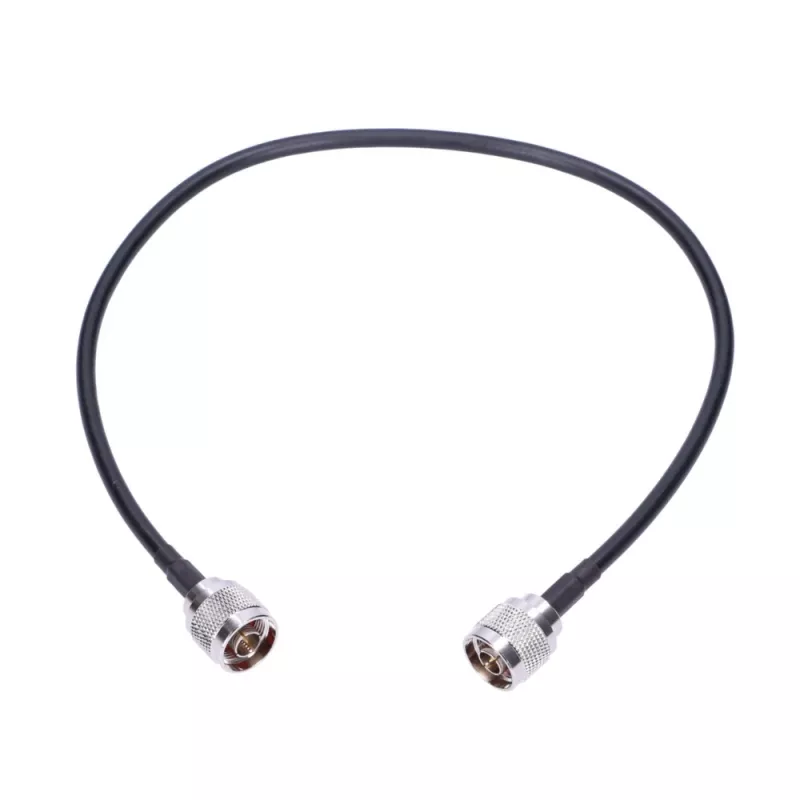

Pigtail N-uros/N-uros RF240 0,5M

RF systems often fail at the connection point. Weak links between antennas, routers, and amplifiers cause signal loss, dropped connections, and frustrating dead zones. This N-Male to N-Male pigtail cable eliminates that weak link with a robust RF240 coaxial design and precision N connectors. At just 0.5 meters, it provides a short, low-loss bridge that maintains signal integrity in tight installations. Whether you're linking a panel antenna to a cellular modem or extending a Wi-Fi access point, this cable ensures your RF signal arrives strong and clean.

Who is it for

Network engineers, wireless technicians, and serious hobbyists who demand reliable RF connections. Ideal for Wi-Fi, cellular, GPS, and general antenna systems where space is limited and performance is critical.

Main features

• RF240 cable (LMR-240 equivalent) with solid copper inner conductor and double shielding (aluminum foil + tinned copper braid) for superior signal integrity.
• N-Male connectors on both ends, precision machined for low VSWR (< 1.3:1) and minimal reflection.
• 50 Ohm impedance, matched to standard RF equipment for maximum power transfer.
• Wide frequency range DC to 6 GHz, covering Wi-Fi, cellular, and many other bands.
• Short 0.5 m length reduces cable loss while providing flexibility in compact installations.
• Durable PE jacket with operating temperature from -40°C to +85°C, suitable for indoor and protected outdoor use.
• RoHS compliant, meeting environmental standards.

Specifications

• Cable Type: RF240 (LMR-240 equivalent)
• Connector Type 1: N-Male
• Connector Type 2: N-Male
• Cable Length: 0.5 m
• Impedance: 50 Ohm
• Frequency Range: DC - 6 GHz
• Outer Diameter: 6.1 mm
• Inner Conductor: Solid Copper
• Dielectric: Foamed Polyethylene (FPE)
• Shielding: Double (Aluminum Foil + Tinned Copper Braid)
• Jacket Material: PE (Polyethylene)
• Attenuation @ 1 GHz / 100m: 20.3 dB
• Attenuation @ 2.4 GHz / 100m: 32.5 dB
• Attenuation @ 5.8 GHz / 100m: 51.8 dB
• VSWR: < 1.3:1
• Operating Temperature: -40°C to +85°C
• Minimum Bend Radius: 25.4 mm
• Power Handling @ 1 GHz: 200 W
• RoHS Compliant: Yes

Tips

For best performance, avoid sharp bends below the minimum bend radius and keep connectors clean. Use this pigtail to bridge short gaps between N-type devices, and consider weatherproofing if used outdoors.
