Paikkalaajennus Intel CYP1URISER2KIT yhteensopivuus M50CYP1UR212 M50CYP1UR204

The Intel CYP1URISER2KIT is a slot expander kit for compatible Intel server systems (M50CYP1UR212 and M50CYP1UR204). It provides a two-slot PCIe NVMe riser and an interposer designed to work with Riser Slot #2, enabling additional PCIe device connectivity within supported server chassis.

Advantages

This kit includes an interposer riser card PCBA, a two-slot PCIe NVMe riser card PCBA and a PCIe interposer cable, enabling installation of two PCIe NVMe devices through the specified riser slot. The design is intended for integration with the referenced Intel server models to expand storage or accelerator options while maintaining system compatibility and form factor.

Suitable for

• Expanding PCIe NVMe device capacity in Intel M50CYP1UR212 systems
• Expanding PCIe NVMe device capacity in Intel M50CYP1UR204 systems
• Server configurations that require additional two-slot PCIe connectivity via Riser Slot #2

Key specifications

• Brand: INTEL
• Manufacturer part number (MPN): CYP1URISER2KIT
• EAN: 5032037210218
• Compatible with: Intel Server Systems M50CYP1UR212, M50CYP1UR204

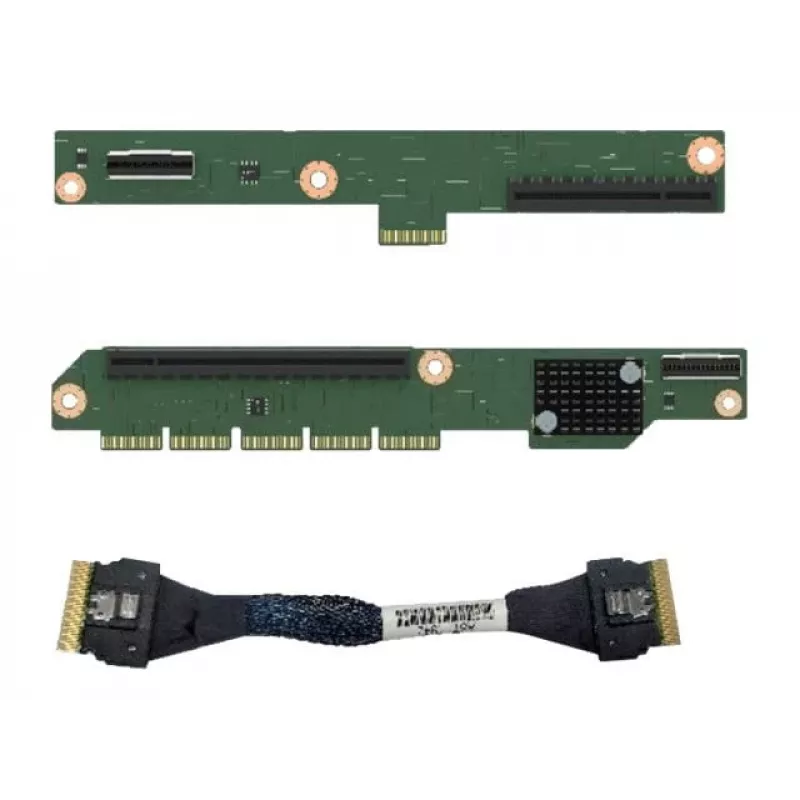

• Contents: (1) Interposer Riser card PCBA, (1) PCIe NVMe Riser card PCBA, (1) PCIe Interposer cable
• Slot: For Riser Slot #2 only
• Slots provided: Two-slot PCIe NVMe

How to use

Install the interposer riser card and the PCIe NVMe riser card into the server according to the server manufacturer’s hardware installation guidelines, ensuring connection to Riser Slot #2. Use the included PCIe interposer cable to link the boards as required. Verify mechanical seating, secure with appropriate fasteners, and confirm cable routing to avoid interference with other components. After physical installation, power on the system and check firmware/BIOS and operating system device listings to confirm the new PCIe NVMe devices are recognized.
