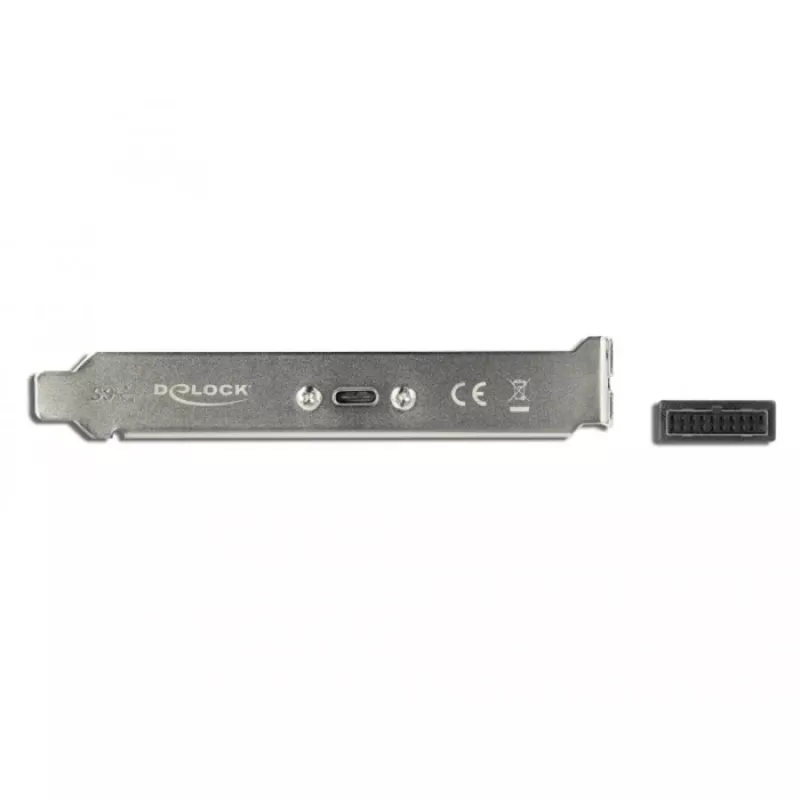

Paikkapellit DeLOCK 89937 1 x USB Type-C -liitännällä

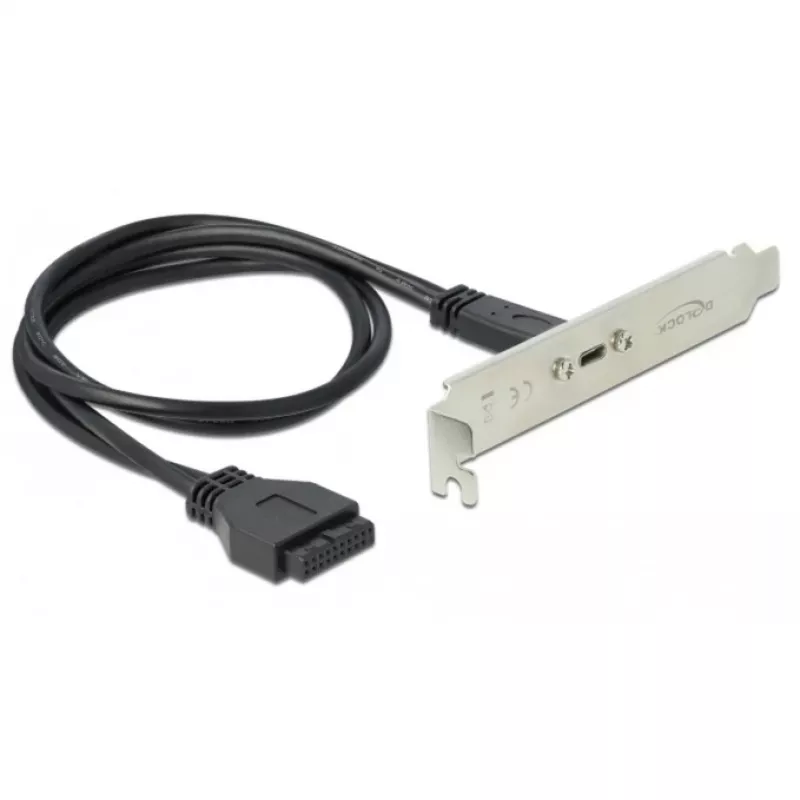

With this slot bracket by DeLOCK a PC can be extended by one USB Type-C™ port. The bracket provides a USB 3.2 Gen 1 (3.1 Gen 1) Type-C connector with a 0.5 m cable for internal connection. At the port a maximum of 5 V / 900 mA and a data transfer rate of up to 5 Gbps are available.

Advantages

This slot bracket adds an external USB Type-C port to a desktop PC without requiring internal motherboard changes. The included 0.5 m cable allows flexible routing to an internal header or connector, and compatibility with USB 3.2 Gen 1 ensures up to 5 Gbps data transfer rates. The product is compact, delivered as a single-piece unit and packaged in a polybag.

Suitable for

Key specifications

How to use

Install the slot bracket into an available expansion slot at the back of the PC chassis and secure it with the screw. Route the attached 0.5 m cable to the appropriate internal USB header or connector on the motherboard and connect it according to the motherboard documentation. After connection, power on the PC and verify that the new USB Type-C port is recognized by the operating system and functions at USB 3.2 Gen 1 speeds where supported.

Recommendations

Use a compatible motherboard internal USB 3.2 Gen 1 header for full 5 Gbps performance. For devices drawing higher current, verify power requirements before use; the port supplies up to 5 V / 900 mA.
