Palvelin Axis S1148 2U

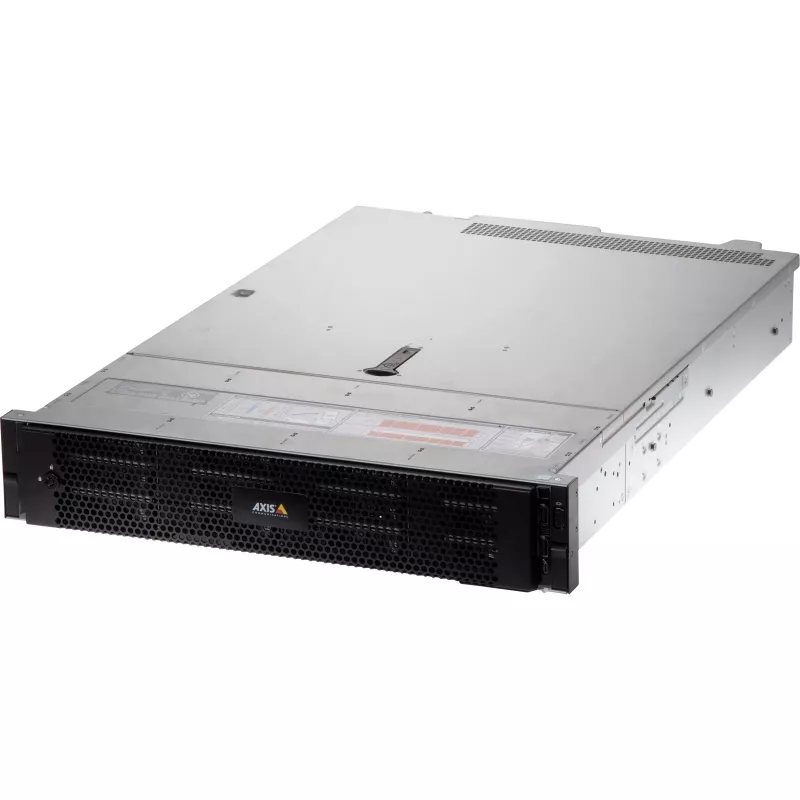

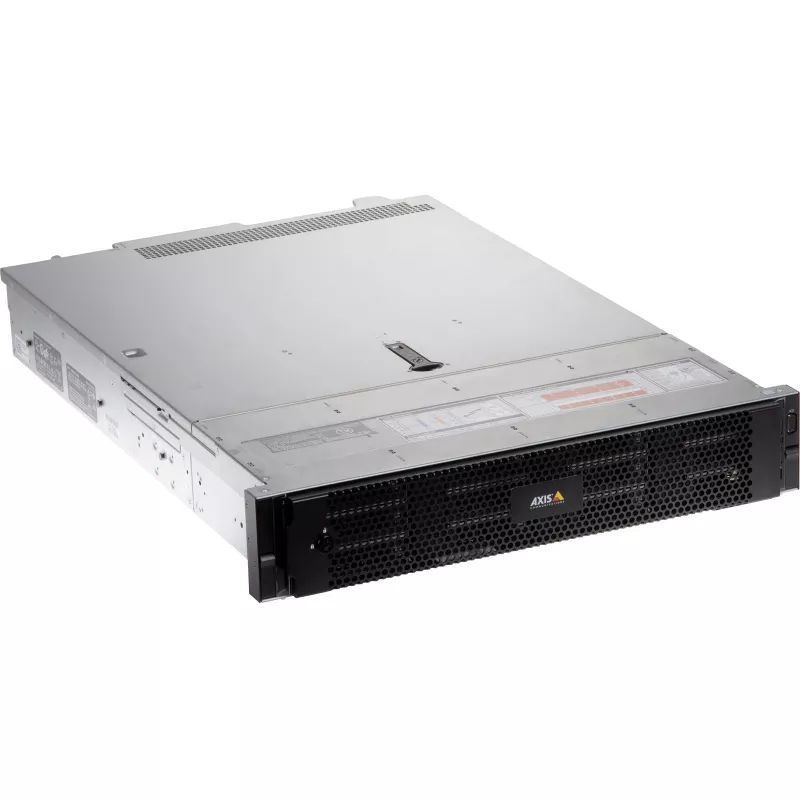

AXIS Camera Station S1148 Recorder is an out-of-the-box, ready-to-use rack server for high-definition surveillance. The Server Axis S1148 2U supports up to 64 video input channels, runs on Windows 10 IoT Enterprise and is available with 24 TB, 64 TB or 144 TB storage capacity. Designed for mid-sized installations, the recorder includes AXIS Camera Station video management software licenses and comes preconfigured for straightforward integration with Axis network cameras. The unit supports industry-standard RAID levels and allows adding extra hard disks to selected variants for flexible storage expansion.

Advantages

The AXIS S1148 recorder provides a preinstalled and configured video management solution that simplifies deployment and verification at installation. It supports multiple RAID configurations (0/1/5/6/10) to balance redundancy and performance, and is validated to accept additional camera licenses for system growth. Integrated management tools and a setup wizard streamline hostname, network, date/time configuration and software updates from one central interface. Physical features include a 2U rack form factor, dual Ethernet ports and a black/grey chassis suitable for server racks.

Suitable for

• Mid-sized video surveillance installations in manufacturing facilities
• Schools and educational campuses
• Retail stores and shopping environments
• Corporate offices and commercial buildings
• Any scenario requiring reliable, secure HD recording with expandable storage

Key specifications

• Model: AXIS Camera Station S1148 Recorder / Server Axis S1148 2U
• Video inputs: up to 64 channels
• Operating system: Windows 10 IoT Enterprise
• Storage options: 24 TB, 64 TB or 144 TB (selected variants allow adding extra hard disks)
• RAID levels supported: 0, 1, 5, 6, 10
• Network: 2 × Ethernet LAN (RJ-45)
• USB: 2 × USB 2.0, 2 × USB 3.2 Gen 1 (Type-A)
• Dimensions (W×D×H): 482 × 681 × 87 mm (2U rack)
• Power: AC 100–240 V, 50–60 Hz
• Compliance: EN/IEC/UL 60950-1, FCC part 15 class A
• Colour: Black, Grey
• MPN: 01616-001 • EAN: 7331021065888

How to use

Install the AXIS S1148 recorder into a standard 19-inch rack (2U space) and connect to AC mains (100–240 V, 50–60 Hz). Use the integrated recorder toolbox and setup wizard to configure hostname, network settings and date/time. Connect Axis network cameras to the recorder via the LAN ports and activate the preinstalled AXIS Camera Station licenses. Configure RAID according to required redundancy and performance, add extra hard disks if needed on supported variants, and verify system performance using the built-in verification tools. Keep software up to date by applying the one-click updates from the central management interface.

Recommendations

Place the rack server in a controlled environment with adequate cooling and stable power. Choose RAID level based on desired balance between storage capacity, performance and redundancy; for example, RAID 6 for high redundancy or RAID 5 for a compromise between capacity and protection. Regularly verify recorded footage and maintain software updates to ensure reliable, secure operation.
